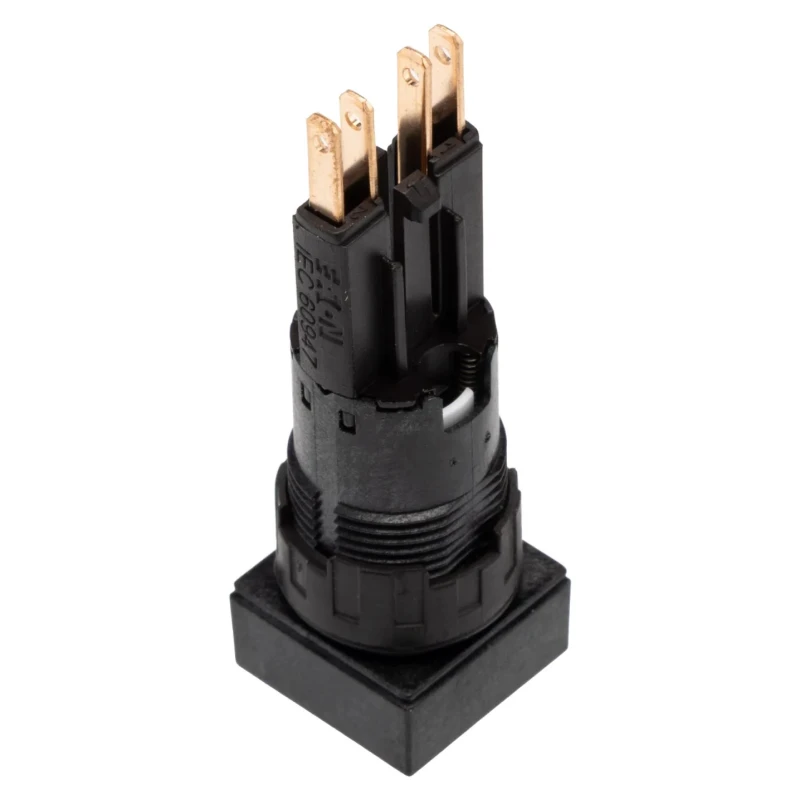

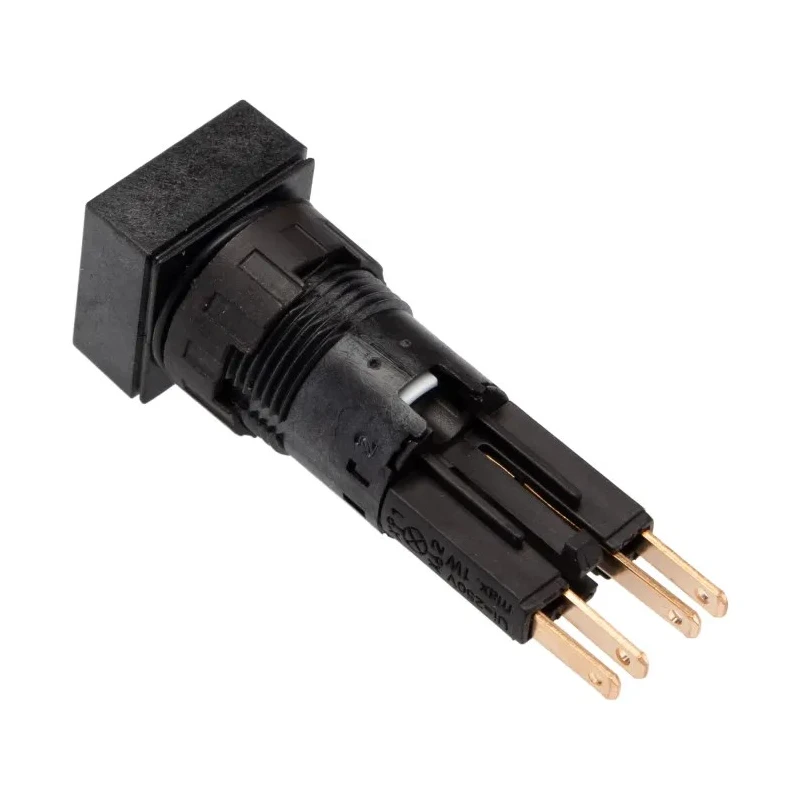

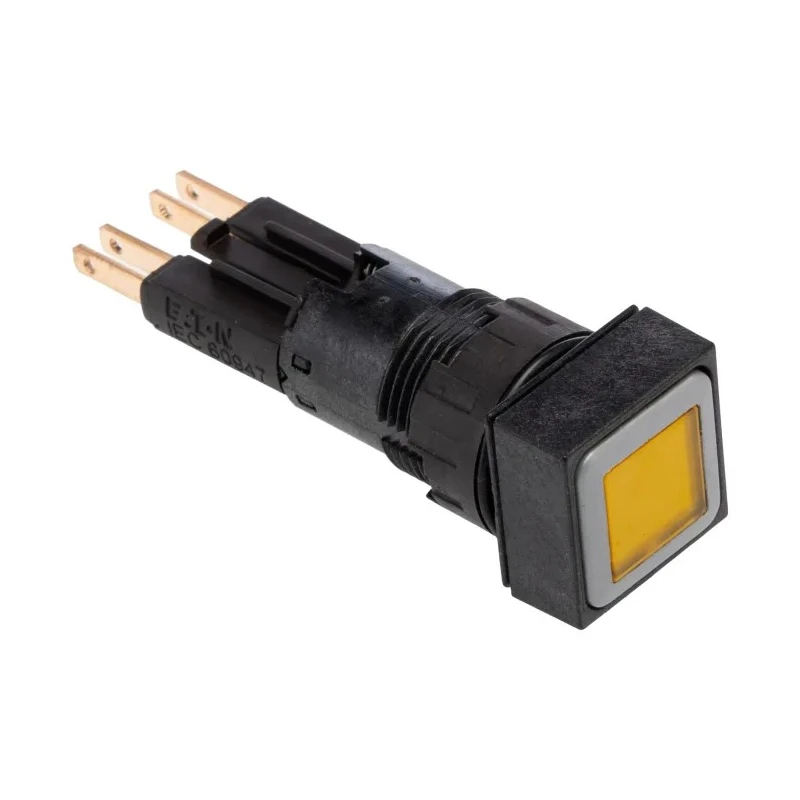

Eaton RMQ16 Series Yellow Momentary Push Button Actuator 16 mm Cutout Plastic IP65 RMQ16

Eaton RMQ16 Series Yellow Momentary Push Button Actuator RMQ16 with 16 mm cutout and IP65 ingress protection is engineered for precise industrial control and automation applications. This square-shaped push button actuator is fabricated from high-quality plastic ensuring durability and suitability in demanding environments.

The momentary actuation design delivers reliable momentary switch control with excellent tactile feedback. The device features an 18 mm push button diameter and blank marking, perfectly suited for integration into various control panels.

The RMQ16 series complies with rigorous international standards including IEC 60068-2-78, IEC/EN 60529, IEC/EN 60947-5, UL 508, CSA-C22.2 No. 14-05, and CE certifications, providing high confidence in safety and performance for industrial use. Featuring an extended product life expectancy of up to three million operations, these actuators are designed to withstand continuous operational demands.

With an IP65 rating, this push button actuator is dust-tight and protected against water jets, making it suitable for indoor and outdoor industrial environments. The compact design allows the devices to be joined side-by-side, optimizing space utilization on control panels compared to larger 22.5 mm devices.

This actuator is compatible with optional normally open or normally closed contacts available separately within the RMQ16 range, allowing flexible circuit configurations. The device is designed to function efficiently with wedge base lamps rated at 6V, 12V, or 24V, which must be procured separately.

Applications span multiple industrial sectors including manufacturing automation, machinery control, HVAC systems, and electrical switchgear panels. The product is ideal for operators requiring reliable, high-quality push button actuators that meet international safety standards.

Compatible with RMQ16 series control devices. Yellow square push button with momentary actuation. Constructed from durable plastic with IP65 protection. 18 mm push button diameter with blank marking. Conforms to IEC 947-5-1 and multiple international standards.

Behind panel depth including terminals is only 49 mm. Designed for integration with electronic devices to IEC/EN 61131-2. Can be butted together for compact control panel installation. Requires a 6V, 12V, or 24V wedge base lamp, sold separately.
