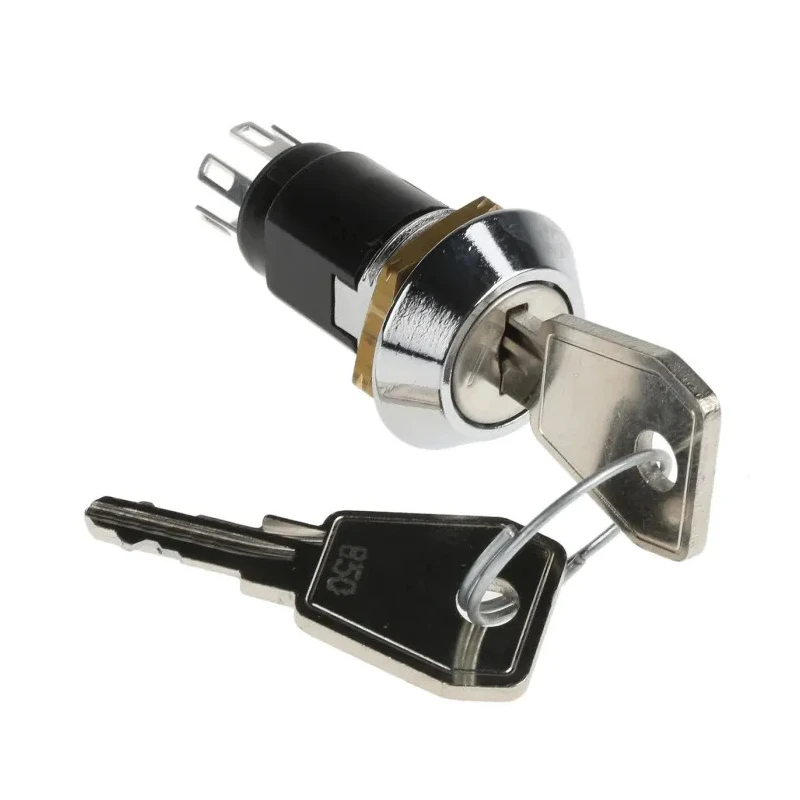

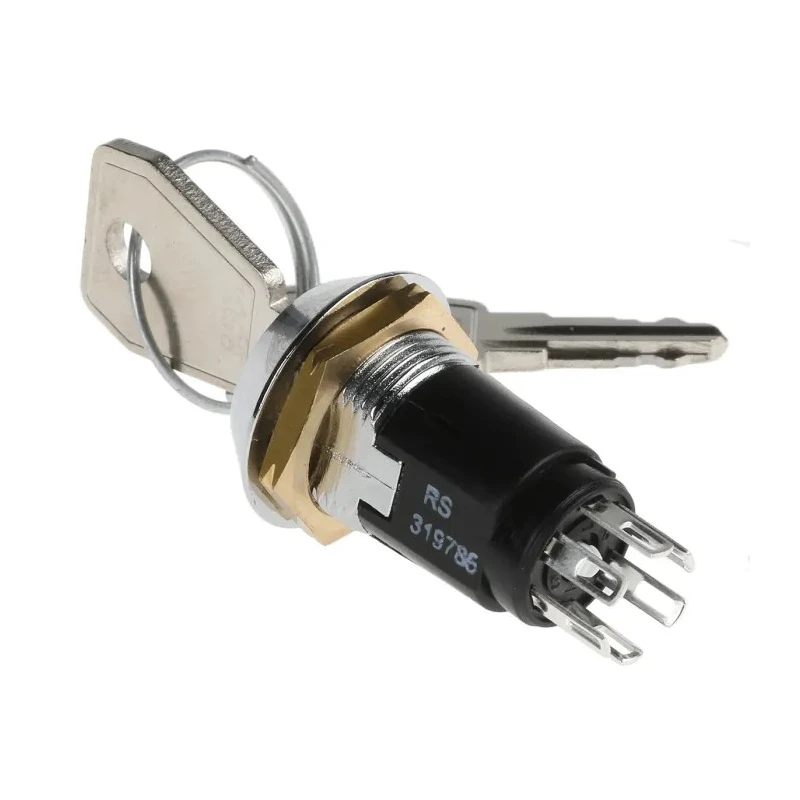

Lorlin Key Switch 2 Position Double Pole Change Over 1A 24V DC 240V AC Fibreglass Reinforced Polyamide SRL5LS2850
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Lorlin |
| Model | SRL5LS2850 |
| Housing Material | Fibreglass Reinforced Polyamide |
| Contact Material | Silver Plated Brass |
| Series | SRL |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | DPCO |
| Number of Positions | 2 |
| Switch Configuration | 2P |
| Minimum Operating Temperature | -20°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 1A |
| Mechanical Life | 10000Operations |
| Contact AC Voltage | 240V ac |
| Key Type | Common |
| Bezel Shape | Tapered |

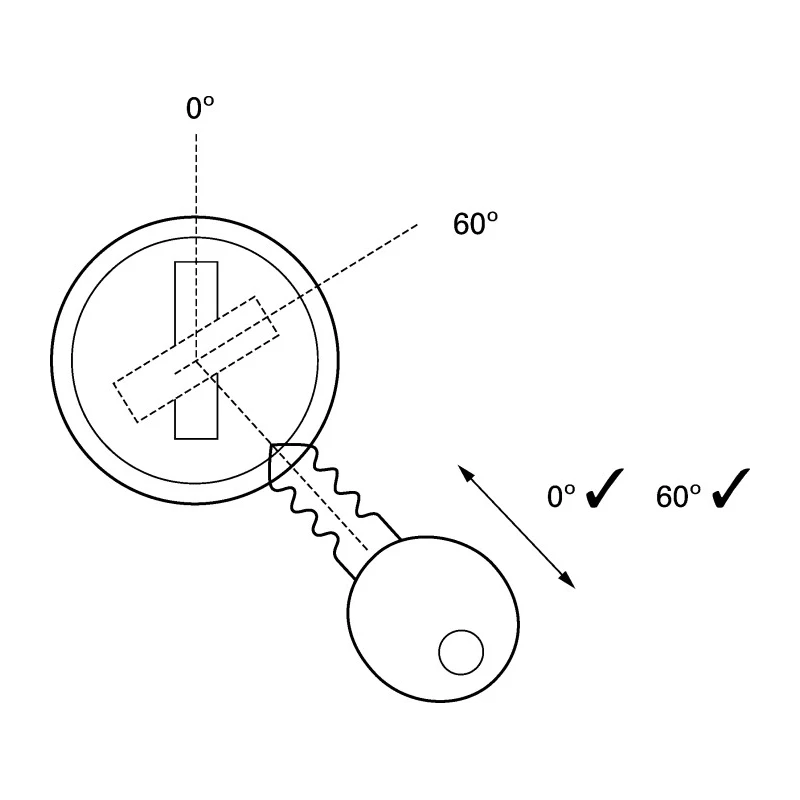

| Key Index Angle | 60° |
| Lorlin Key Switch, DPDT, 1A 2-Way Random-KeyBrand | Lorlin |
| IP65 2position key removable lock switchBrand | Saia-Burgess |
Key Features
- Operates with 2 positions for versatile control.
- Double pole change over (DPCO) contact configuration.
- Rated switch contact current of 1A compatible with 24V DC and 240V AC.
- Constructed with fibreglass reinforced polyamide housing for enhanced strength.
- Keys are double entry, allowing insertion either way up.
- Tapered bezel shape and solder terminal connection type.
- Key index angle of 60 degrees for precise operation.
- Silver plated brass contact material ensures reliable conductivity.
Product Description
The Lorlin SRL5LS2850 key switch is a high-quality 2-position, double pole change over (DPCO) key-operated switch engineered for safe and reliable performance in low voltage control applications. The key switch features a common key design allowing the same key to operate multiple switches, suitable for control panels, alarms, and lighting control systems.
Crafted with a durable fibreglass reinforced polyamide housing and a tapered bezel for a sleek and functional front panel assembly, this miniature switch is compact with a depth behind the panel of 22.4 mm and a rear projection less than 30 mm, making it ideal for equipment with limited space.
The contacts are composed of silver plated brass to provide excellent conductivity and longevity. Rated at 1 Ampere for both 24V DC and 240V AC, this switch is appropriate for various low power electrical circuits requiring secure on/off switching via a key operation.
Keys are double entry, meaning they can be inserted in either orientation, and up to 200 unique key combinations are available for added security. The operating temperature range of -20°C to 65°C and a mechanical life of 10,000 operations ensure durability under industrial conditions.
Two-position operation with double pole change over contacts. Key trapping is not present, enabling easy key removal regardless of switch position. Solder terminal type facilitates reliable circuit board connections. Designed and manufactured in the United Kingdom, ensuring quality standards compliance.
The product complies with RoHS standards.
This Lorlin key switch suits applications including industrial control panels, alarm systems, and lighting controls, where robust keyed control is necessary to prevent unauthorized usage or tampering. The compact size, durable materials, and secure keying options make it an excellent choice for electrical automation systems requiring precision and reliability.
Explore more in the Key Switch category on EnvMart for related products and secure control solutions.
Explore more products in our Key Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The key switch has a rated contact current of 1A and is compatible with both 24V DC and 240V AC.
It is constructed with fibreglass reinforced polyamide, which enhances its strength.
This switch features a double pole change over (DPCO) contact configuration.
The mechanical life of this model is rated for 10,000 operations.
The operating temperature range is from -20°C to 65°C.
The keys are double entry, allowing insertion in either orientation, and up to 200 unique key combinations are available for added security.
It features solder terminal connections for reliable circuit board connections.
The key index angle is 60 degrees, allowing for precise operation.
This model complies with RoHS standards.
It is suitable for applications including industrial control panels, alarm systems, and lighting controls.
The depth behind the panel is 22.4 mm, making it suitable for equipment with limited space.
It is designed and manufactured in the United Kingdom, ensuring quality standards compliance.
