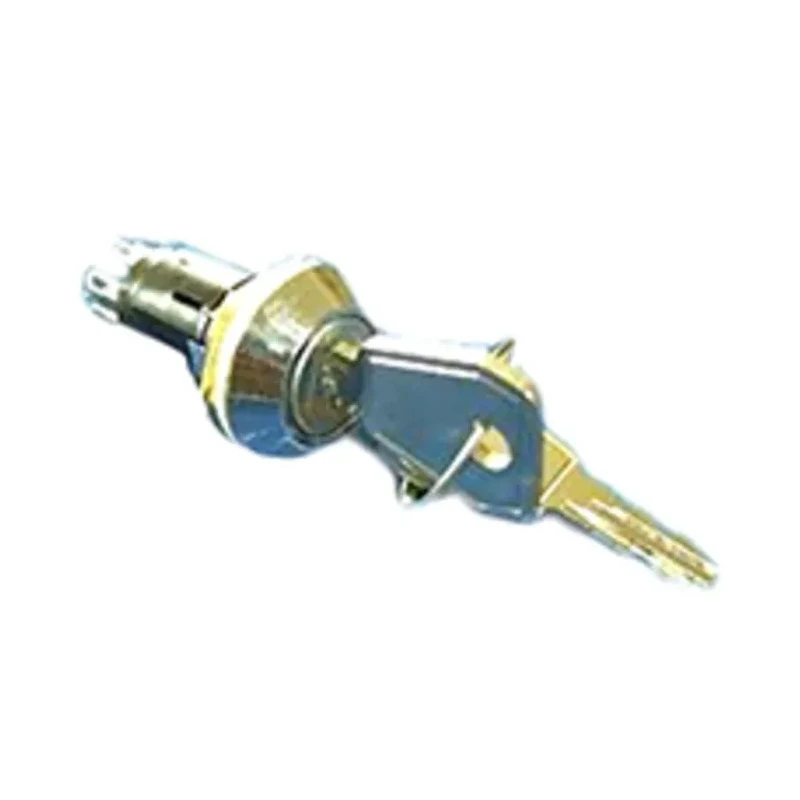

Lorlin IP67, IP66 Polyamide 66 Keylock Switch, SPST, 1A Contact Current, 3 Positions, Latching WRL-5-P-D-2-RS

Lorlin WRL-5-P-D-2-RS is a high-quality miniature keylock switch engineered for industrial, automation, and electrical applications demanding reliable operation and environmental protection. This keylock switch features a robust Polyamide 66 housing rated IP67 and IP66, providing excellent sealing against dust and water ingress.

With a Single Pole Single Throw (SPST) contact configuration and a latching switch operation, it offers precise control with a current rating of 1 Amp. The product supports three distinct positions with a 90° key index angle and is designed to be operated with a common key, making it suitable for secure access control scenarios.

This switch is supplied with two double-entry keys, facilitating user-friendly operation where keys can be inserted either way. Brass CZ108 contact material ensures good electrical conductivity and durability, supporting contact voltages up to 24V DC and 115V AC.

The WRL series switch is suited for a wide temperature range from -20°C to 65°C and can withstand mechanical operations for up to 10,000 cycles. Its compact design allows simple integration into panel equipment, with a rear projection less than 30mm and mounted via a round bezel with solder terminals.

Compliant with RoHS regulations, the switch is made in the United Kingdom, ensuring high manufacturing standards. It is recommended for industrial automation, marine equipment, control panels, and electrical safety locking applications where environmental protection and secure key operation are critical.

The switch housing is made from robust Polyamide 66 material ensuring durability. Designed with a common key type and key trapping functionality for secure access. Supports 24V DC and 115V AC contact voltages with brass CZ108 contact material.

Rated for mechanical life of 10,000 cycles under temperatures from -20°C to 65°C. Equipped with solder terminals and round bezel shape for easy and secure panel mounting. IP67 and IP66 ingress protection levels make it suitable for marine and harsh environments.

Keys can be inserted either way (double entry) and two keys are included with the switch. Compact size occupies minimal panel space with less than 30mm rear projection. Complies with RoHS standards ensuring environmental safety.
