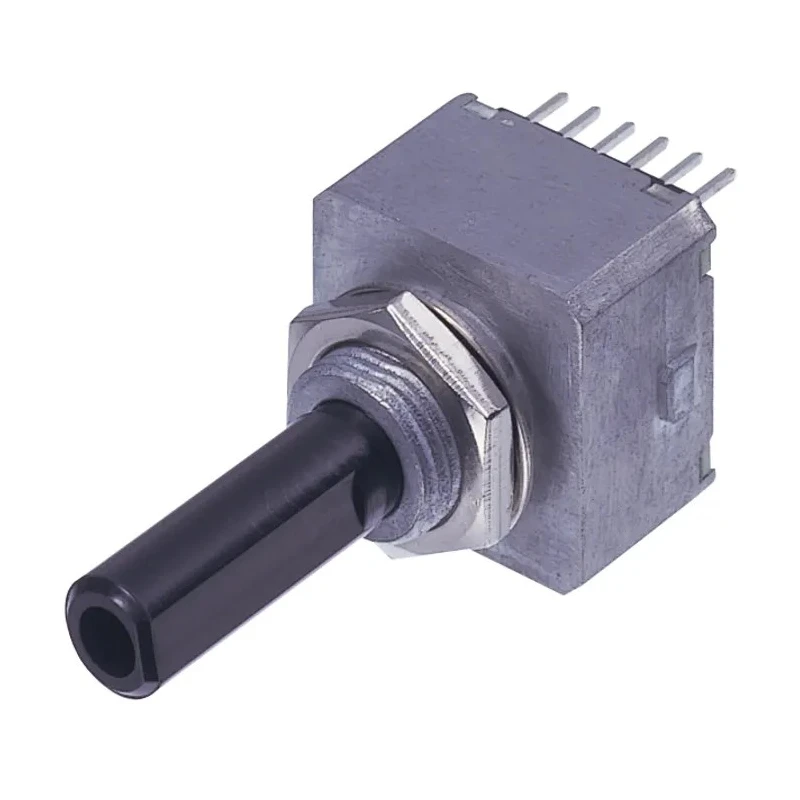

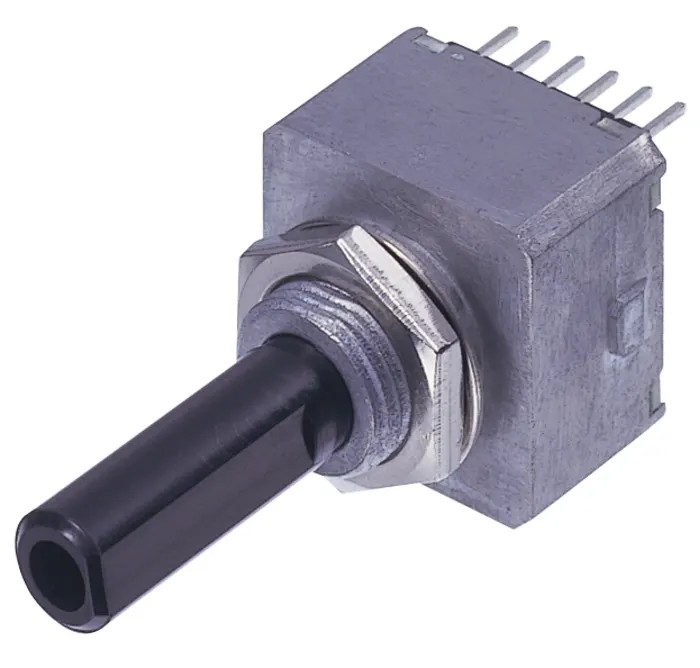

Nidec Components 5V DC 25 PPR Pulse Optical Encoder with 6 mm Flat Shaft, Through Hole, Wire REC16A25-201-C
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Nidec Components |
| Model | REC16A25-201-C |
| Mount Type | Through Hole |
| Current Rating | 30mA |
| Series | RE |
| Shaft Diameter | 6mm |
| Shaft Length | 16.5mm |
| Supply Voltage | 5V dc |
| Pulses per Revolution | 25ppr |
| Standards/Approvals | RoHS Compliant |
| Termination Style | Wire |
| Mounting Hole Diameter | 9 mm |
| Shaft Style | Flat |
| Encoder Signal | Digital Square Wave |
Key Features
- This optical encoder is designed for precision rotary position sensing.
- It features a through-hole mount with a shaft length of 16.5 mm and 9 mm mounting hole diameter.
- The encoder signal is a digital square wave suitable for digital control systems.
- The product offers high resistance to electrostatic noise through a plastic shaft construction.
- It complies with RoHS standards ensuring environmental safety and reliability.
- Termination is by wire for easy integration.
- The current rating is 30 mA, supporting low power applications.
- Compact size with a 16 mm square body dimension facilitates installation in tight spaces.
Product Description
Nidec Components REC16A25-201-C optical encoder is a 5V DC powered 25 pulse per revolution (PPR) device designed for precise angular position feedback in automation and control systems.
This encoder features a 6 mm diameter flat shaft with a shaft length of 16.5 mm, mounted via a through-hole with a 9 mm mounting hole diameter, allowing secure and flexible installation in various mechanical assemblies.
The encoder outputs a digital square wave signal, making it compatible with digital electronics and microcontroller interfaces. Its plastic shaft design enhances resistance to electrostatic noise, improving signal integrity in electronically noisy environments.
This compact 16 mm square encoder includes a mechanical ON/OFF push switch, adding functional controls directly on the unit. Its RoHS compliance ensures the product meets environmental and safety standards.
The termination style is wire, supporting custom wiring harness configurations and easy connectivity in system designs. The current rating is 30 mA, supporting low current consumption applications.
Manufactured in Japan, the REC16A25-201-C optical encoder is engineered for long operational life, reliability, and precision in industrial, laboratory, HVAC, manufacturing, and automation contexts.
This optical encoder provides accurate rotary position sensing with 25 pulses per revolution. It has a robust plastic shaft for noise resistance and longevity. Designed with a compact 16 mm square body for tight installation spaces.
Equipped with a mechanical ON/OFF push switch for direct user control. The wire termination allows flexible wiring solutions in equipment integration. Through-hole mounting ensures secure mechanical stability during use.
Operates at low current consumption with a 30 mA current rating. Complies with RoHS environmental standards and is made in Japan.
This pulse optical encoder is ideal for use in various industrial and commercial applications requiring precise position sensing, such as robotics, automation equipment, and motor control systems.
Explore more Optical Encoders and electronic components on EnvMart for efficient industrial instrumentation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The supply voltage for this model is 5V DC.
This encoder has a current rating of 30 mA, suitable for low power applications.
It provides 25 pulses per revolution (PPR), allowing for precise angular position feedback.
The encoder outputs a digital square wave signal, making it compatible with digital control systems.
The mounting hole diameter is 9 mm, facilitating secure installation.
The shaft diameter is 6 mm and the shaft length is 16.5 mm.
This model uses a through-hole mounting type for secure mechanical stability.
Yes, it complies with RoHS standards, ensuring environmental safety and reliability.
This optical encoder is manufactured in Japan.
The shaft style is flat, designed for specific mechanical applications.
The termination style is wire, allowing for easy integration into various systems.
It is suitable for various applications including robotics, automation equipment, and motor control systems.
