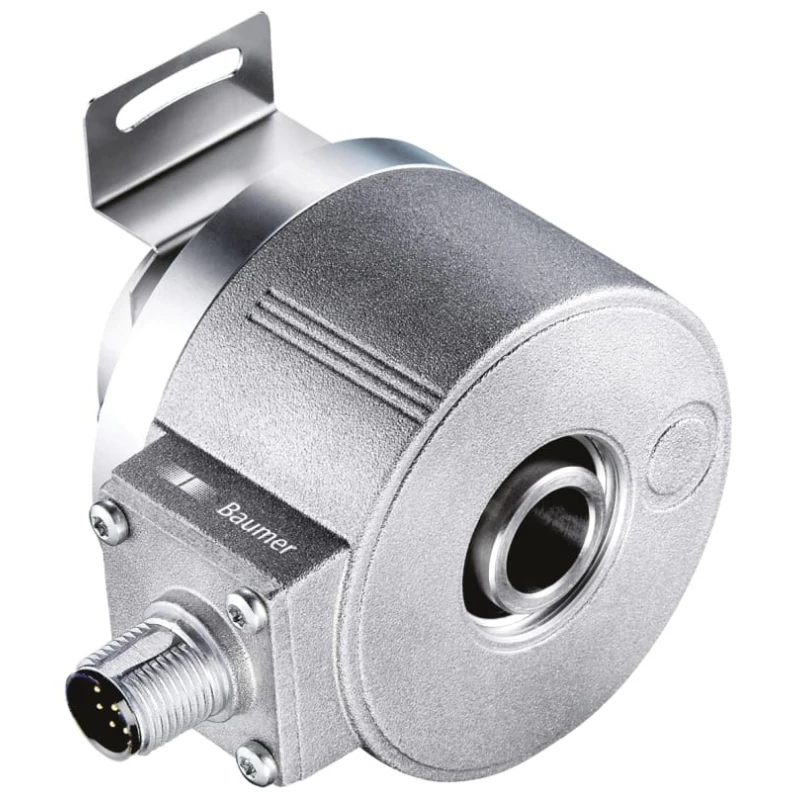

Baumer Optical Incremental Encoder, EIL580P Series, 30V Supply, 65536 PPR, HTL and TTL Signal EIL580P-TT12.5FF.01024.B
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Baumer |
| Model | EIL580P-TT12.5FF.01024.B |
| IP Rating | IP65 |
| Mount Type | Hollow Shaft Flange Mount |
| Series | EIL580P |
| Overall Width | 58mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 12mm |
| Overall height | 70mm |
| Shaft Type | Hollow |
| Terminal type | M23 Flange Connector |
| Interface Type | TTL, RS422 |
| Pulses per Revolution | 65536ppr |
| Standards/Approvals | UL |
| Maximum Supply Voltage | 30V |
| Overall Depth | 41mm |
| Encoder Technology | Optical |
| Maximum Revolutions | 6000rpm |
| Output Signal Type | HTL, TTL |
Key Features
- The encoder operates with a maximum supply voltage of 30V ensuring compatibility with industrial systems.
- Its hollow shaft design with a 12 mm diameter supports flexible mounting options.
- Designed for high rotational speeds up to 6000 rpm for demanding applications.
- The robust IP65 rated aluminium housing offers protection against dust and water ingress.
- Wide operating temperature range from -40°C up to 100°C accommodates harsh environments.
- M23 flange connector interface facilitates secure and easy electrical connections.
- High resistance to shock and vibrations enhances reliability in industrial settings.
- Standards compliance includes UL certifications for quality assurance.
Product Description
Baumer EIL580P-TT12.5FF.01024.B is an advanced optical incremental encoder, part of the EIL580P series, engineered to deliver high precision and reliability in industrial motion control applications.
This encoder supports an extensive 65536 pulses per revolution (PPR) with dual HTL and TTL output signals, suitable for systems requiring accurate position and speed feedback.
The encoder features a hollow shaft measuring 12 mm in diameter, which allows for convenient hollow shaft flange mounting, enhancing installation flexibility. Designed to handle rotational speeds up to 6000 rpm, it meets the dynamic requirements of modern automation machinery.
Constructed with a 58 mm diameter die-cast aluminium housing rated IP65, it offers robust resistance against dust and water spray, making it ideal for tough industrial environments. Its operating temperature range from -40°C to 100°C ensures stable performance across varying climate conditions.
The product includes an M23 flange connector terminal type and supports RS422 interface type for reliable and noise-resistant data transmission. High resistance to shocks and vibrations further guarantees operational durability in demanding settings.
With built-in UL compliance and designed in Germany, this encoder represents a premium choice for factory automation, robotics, conveyor systems, CNC machines, and general industrial applications requiring precise rotary position sensing.
The encoder operates with a maximum supply voltage of 30V ensuring compatibility with industrial systems. Its hollow shaft design with a 12 mm diameter supports flexible mounting options. Designed for high rotational speeds up to 6000 rpm for demanding applications.
The robust IP65 rated aluminium housing offers protection against dust and water ingress. Wide operating temperature range from -40°C up to 100°C accommodates harsh environments. M23 flange connector interface facilitates secure and easy electrical connections.
High resistance to shock and vibrations enhances reliability in industrial settings. Standards compliance includes UL certifications for quality assurance. Product made in Germany ensuring premium engineering and build quality.
Explore the full range of Baumer motion control sensors at EnvMart to find suitable solutions for diverse industrial automation needs.
Explore more products in our Optical Encoder category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The encoder operates with a maximum supply voltage of 30V, ensuring compatibility with various industrial systems.
This model supports an extensive 65536 pulses per revolution (PPR), providing high precision for position and speed feedback.
It offers dual output signals, including HTL and TTL, suitable for various applications requiring accurate feedback.
The encoder has a wide operating temperature range from -40°C to 100°C, accommodating harsh environmental conditions.
The hollow shaft design with a diameter of 12 mm supports flexible mounting options, allowing for convenient installation in various setups.
It is designed to handle high rotational speeds up to 6000 rpm, making it suitable for demanding applications.
This model features an M23 flange connector, facilitating secure and easy electrical connections.
The overall dimensions are 58 mm in width, 70 mm in height, and 41 mm in depth.
The encoder is constructed with a robust die-cast aluminium housing, rated IP65 for protection against dust and water ingress.
Yes, it has UL certifications, ensuring quality assurance and compliance with industry standards.
This encoder is suitable for factory automation, robotics, conveyor systems, CNC machines, and other industrial applications requiring precise rotary position sensing.
It supports TTL and RS422 interface types for reliable and noise-resistant data transmission.
