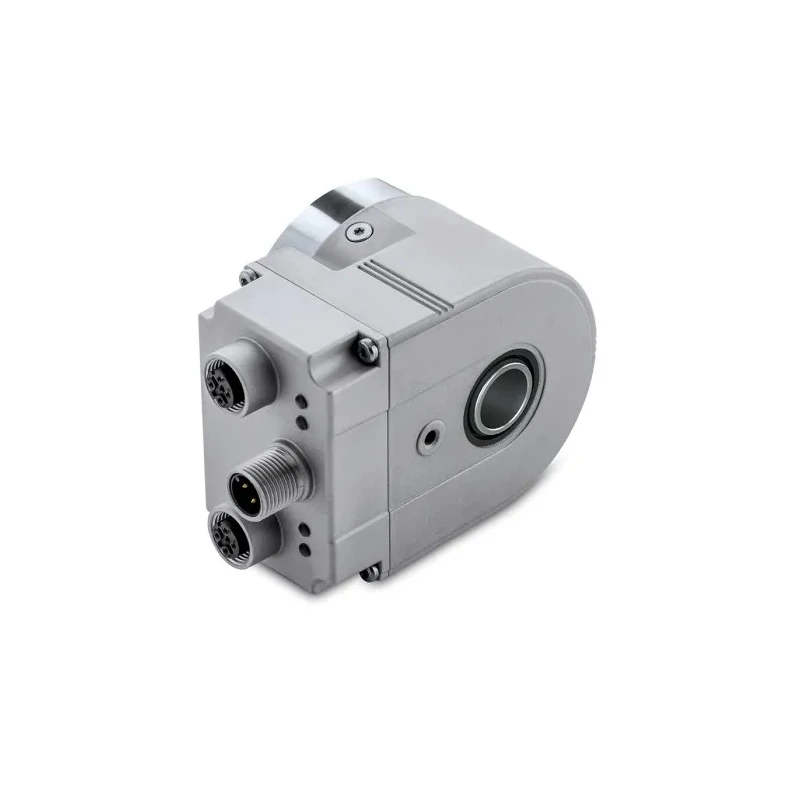

Baumer Optical Absolute Encoder Multiturn Signal Hollow Shaft 12mm 30V EAL580
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Baumer |
| Model | EAL580 |
| IP Rating | IP65 |
| Mount Type | Hollow Shaft Flange Mount |
| Series | EAL580 |
| Overall Width | 58mm |
| Maximum Operating Temperature | 85°C |
| Max. Resolution | single turn 18 bit, multiturn 16 bit |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 12mm |
| Overall height | 90.9mm |
| Shaft Type | Hollow |
| Terminal type | M12 Flange Connector |
| Interface Type | EtherCAT |
| Standards/Approvals | UL |
| Maximum Supply Voltage | 30V |
| Overall Depth | 59mm |
| Encoder Technology | Optical |
| Maximum Revolutions | 6000rpm |
| Output Signal Type | Absolute Encoder Multiturn |
Key Features
- Utilizes an optical sensing method for accurate absolute position measurement.
- Supports a maximum of 6000 rpm with multiturn absolute encoder output.
- Features a 12 mm hollow shaft compatible with hollow shaft flange mounting.
- Equipped with EtherCAT interface and M12 flange connector for robust connectivity.
- IP65 rated enclosure offers protection against dust and water ingress.
- Operates reliably between -40°C to 85°C, suitable for various industrial environments.
- Maximum supply voltage is 30V ensuring stable power supply usage.
- Includes LED status display for operational monitoring.
Product Description
Baumer EAL580 is an optical absolute encoder series designed for high-precision, multiturn position sensing in dynamic industrial applications. With a maximum rotational speed of 6000 rpm, it delivers single turn resolution of 18 bit and multiturn resolution of 16 bit, providing highly accurate and reliable absolute position data.
The product features a hollow shaft design with a diameter of 12 mm enabling direct hollow shaft flange mounting, optimizing mechanical integration and minimizing installation complexity. The EtherCAT interface combined with an M12 flange connector ensures reliable and high-speed data transmission suitable for demanding automation systems.
Encased within an IP65 rated housing, this absolute encoder is protected against dust ingress and water jets, making it appropriate for harsh industrial conditions. Its operating temperature range of -40°C to 85°C extends its use in temperature-variable environments. The device includes LED status display for clear operational feedback, enhancing ease of maintenance.
Baumer’s EAL580 series optical absolute encoder provides maximum resistance to magnetic fields, ensuring stable operation in environments with electromagnetic interference. It adheres to UL standards, reflecting quality and safety compliance. Manufacturing origin in Germany guarantees stringent quality control and reliability.
Utilizes optical sensing method for absolute position measurement. Supports multiturn absolute encoder output with 6000 rpm max speed. Hollow shaft 12 mm diameter with flange mounting capability. EtherCAT interface and M12 flange connector included.
IP65 rated protection for harsh environments. Wide operating temperature from -40°C to 85°C. 30V maximum supply voltage ensures steady power delivery. High resolution with 18 bit single turn and 16 bit multiturn accuracy.
LED status display for monitoring device status. Compliant with UL standards and manufactured in Germany.
This optical absolute encoder series is ideally suited for industrial automation, motion control, manufacturing equipment, robotics, and other applications requiring precise and reliable position feedback. Customers can discover the full range of Baumer motion control sensors on EnvMart for seamless integration into their industrial systems.
Explore more products in our Optical Encoder category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum rotational speed of this model is 6000 rpm.
It features a single turn resolution of 18 bit and a multiturn resolution of 16 bit.
This unit supports hollow shaft flange mounting, designed for a 12 mm shaft diameter.
It is equipped with an EtherCAT interface and an M12 flange connector for reliable connectivity.
The encoder operates reliably within a temperature range of -40°C to 85°C.
This model has an IP65 rating, providing protection against dust and water ingress.
The maximum supply voltage for this encoder is 30V.
The overall dimensions are 58 mm in width, 90.9 mm in height, and 59 mm in depth.
It utilizes an optical sensing method for accurate absolute position measurement.
This model complies with UL standards, reflecting quality and safety compliance.
The encoder is manufactured in Germany, ensuring stringent quality control.
It is ideally suited for industrial automation, motion control, manufacturing equipment, and robotics requiring precise position feedback.
