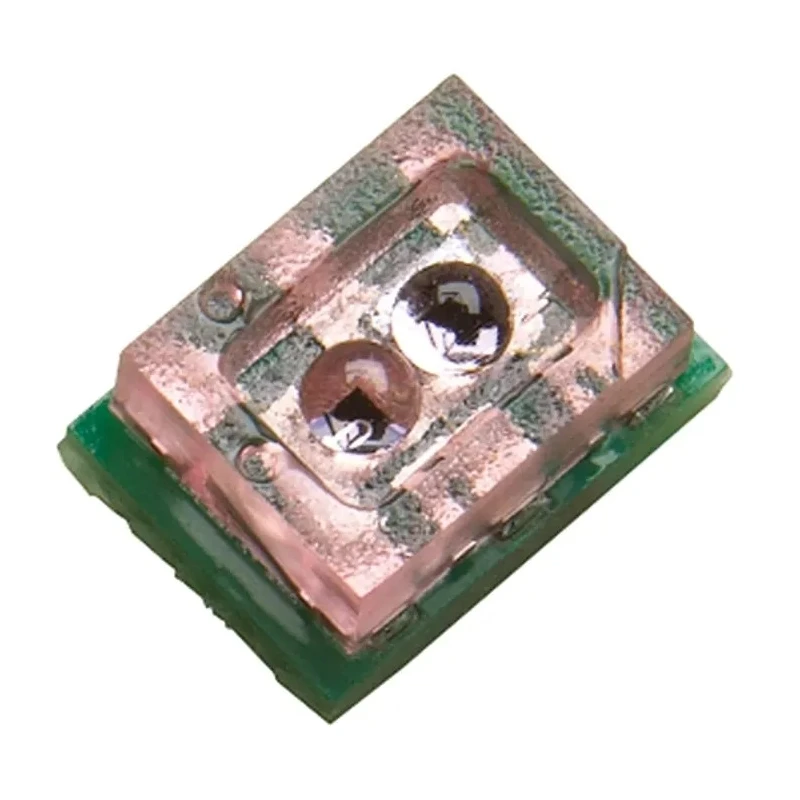

Broadcom 5V DC Optical Encoder Surface Mount 2 Channel Quadrature AESR-8000-1K2 AEDR-8000-1K2

Broadcom AEDR-8000-1K2 is a 5V DC optical encoder designed for surface mount applications, providing accurate and reliable rotary position sensing in industrial, electronic, and embedded systems. Utilizing reflective optical technology, this encoder offers a compact surface mount small outline leadless package that is a direct replacement for the HEDR-8000 series units.

This model features a 2 Channel Quadrature encoder signal output, enabling precise incremental detection and direction sensing. It supports a single 5V power supply with TTL compatible outputs, making it suitable for integration with a wide range of digital logic and microcontroller systems.

The encoder operates effectively across a temperature range of -20°C to 85°C, ensuring dependable performance in varied environmental conditions.

Users may select from multiple encoding resolution options: 75, 150, and 180 lines per inch, also available in metric lines per millimeter of 2.95, 5.91, and 7.09, allowing flexible choice based on application precision needs.

PCB height profiles of 1.0 mm and 1.5 mm thickness cater to differing board design requirements without compromising device functionality. Additionally, compliance with JESD22-A115-A Class B and ESD JESD22-A114-A Class 2 standards enhances durability and resistance to electrostatic discharge, important in industrial and manufacturing usage.

The device draws a current of 8 mA, facilitating low power consumption for extended operational efficiency. Ideal for use in electronic equipment, industrial machinery, automation systems, laboratory instruments, and manufacturing plants for rotational position and speed feedback.
