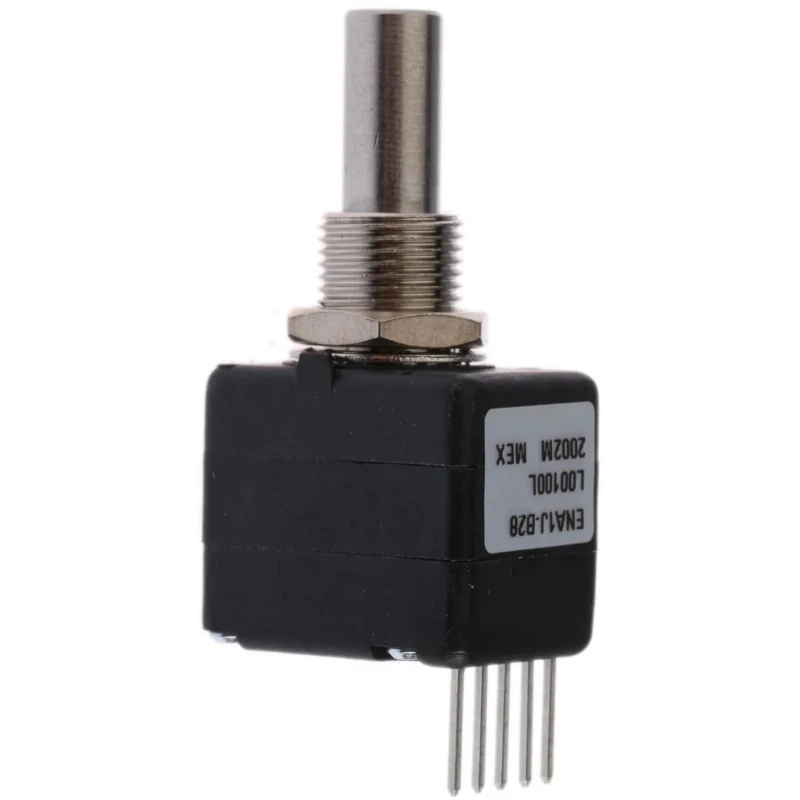

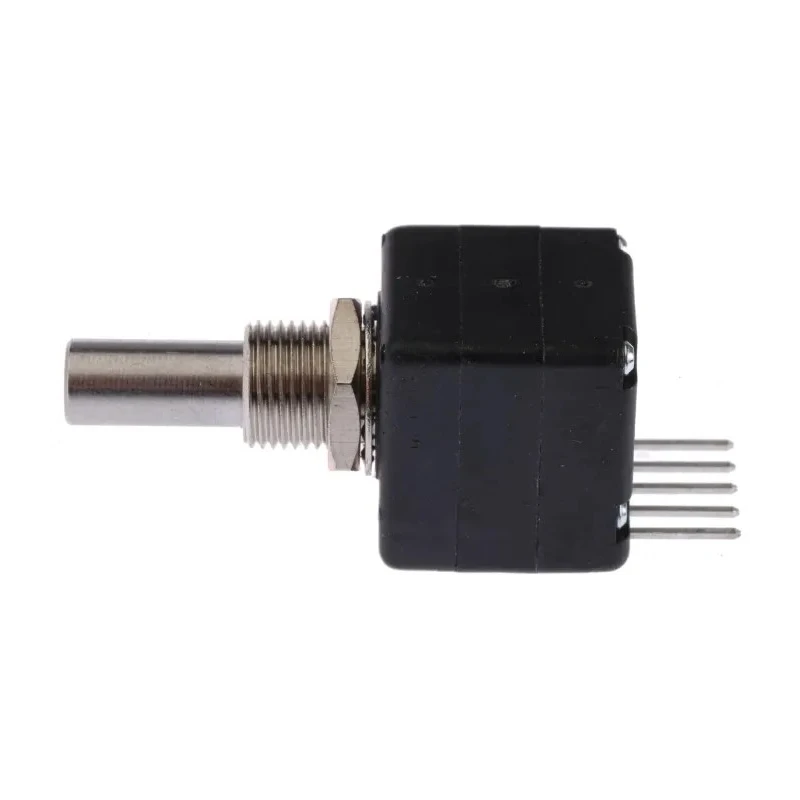

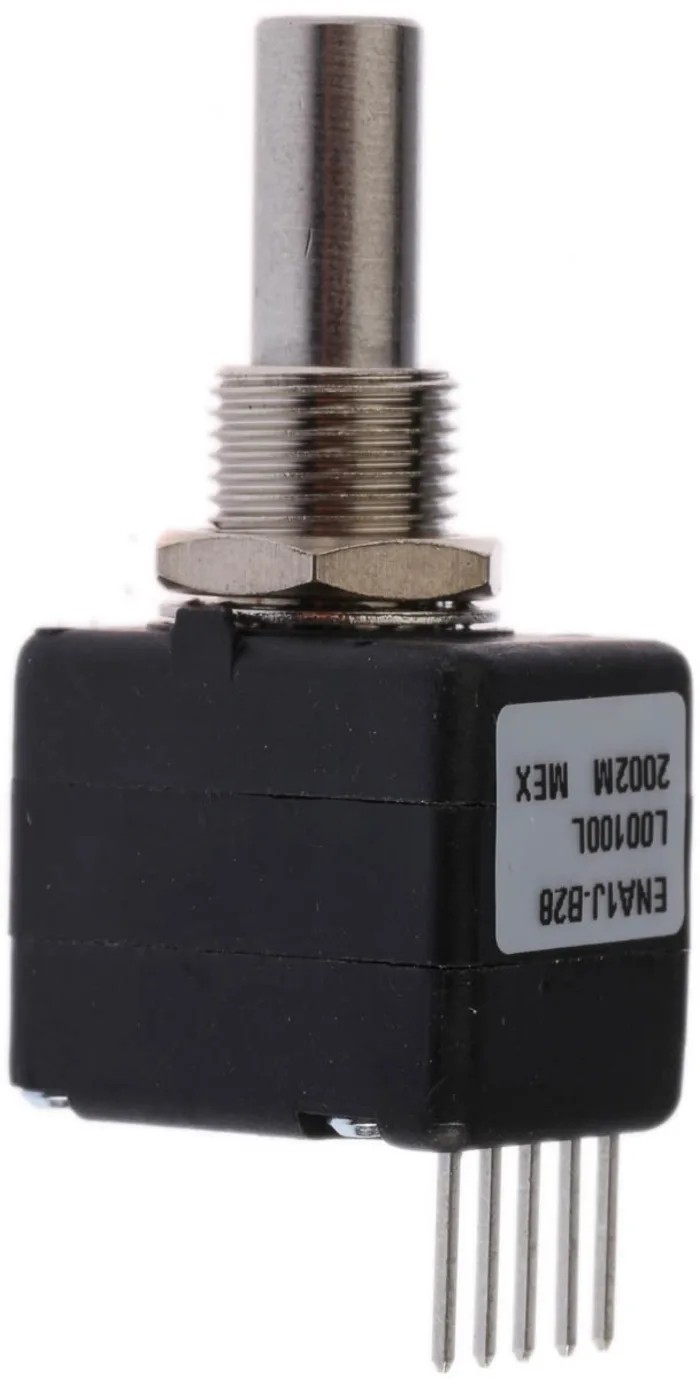

Bourns EN Series Optical Encoder 5V DC, 100 PPR, Quadrature Signal, End Type, 6.35 mm Shaft ENA1J-B28-L00100L
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Bourns |
| Model | ENA1J-B28-L00100L |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Series | EN |
| Overall Width | 21.21mm |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 6.35mm |
| Overall height | 47.05mm |
| Shaft Type | End |
| Terminal type | Axial |
| Pulses per Revolution | 100ppr |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 5V dc |
| Overall Depth | 15.88mm |
| Encoder Technology | Optical |
| Maximum Revolutions | 3000rpm |
| Output Signal Type | Quadrature |
Key Features
- This optical encoder supports a maximum rotational speed of up to 3000 rpm.
- The encoder output signal is of quadrature type, compatible with CMOS and TTL technologies.
- Panel mount design with axial terminal type ensures easy integration in equipment.
- Constructed for operation within temperature range of -40°C to 75°C, making it suitable for industrial applications.
- Enclosure supports IP40 rating, providing protection against solid objects larger than 1 mm.
- The compact design measures approximately 21.21 mm width, 47.05 mm height, and 15.88 mm depth.
- Manufactured to RoHS standards with quality and environmental compliance.
- Product origin is Mexico, ensuring quality manufacturing standards.
Product Description
Bourns ENA1J-B28-L00100L optical encoder is a precision rotary optical encoder designed for industrial and automation applications requiring accurate motion control feedback. Operating at a supply voltage of 5V DC, it delivers 100 pulses per revolution with quadrature output signals that are compatible with both CMOS and TTL logic levels.
Featuring a robust panel mount setup and axial terminal type, this encoder is compact and easy to integrate into various machinery. It operates reliably across a broad temperature range from -40°C to 75°C, ensuring durability in harsh environments. The IP40 ingress protection rating safeguards the internal components from dust and solid particles larger than 1 mm.
Measuring 21.21 mm in width, 47.05 mm in height, and 15.88 mm in depth, the unit’s 6.35 mm end type shaft is compatible with standard mechanical couplings. With a maximum rotational speed of 3000 rpm, it supports automated systems demanding precise position and speed feedback.
The encoder is manufactured in Mexico and complies with RoHS environmental standards, reflecting its quality and sustainability. Typical application areas include industrial automation systems, motion control sensors, robotics, and other fields where reliable rotary position sensing is crucial.
This optical encoder provides two-channel quadrature output to enable precise direction and position detection. Its long-life design ensures extended operational reliability in demanding industrial environments. Suitable for CNC machines, robotics, and automation equipment requiring accurate rotational feedback.
Compact dimensions facilitate integration without significant design modifications. Complies with RoHS directives promoting environmental safety and quality assurance.
This product enriches EnvMart’s broad category of Optical Encoders, offering users a reliable component for enhanced automation and control applications. Browse our full range of motion control sensors to discover complementary components and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum rotational speed of this optical encoder is 3000 rpm.
It operates reliably within a temperature range of -40°C to 75°C.
This model provides a quadrature output signal, compatible with CMOS and TTL technologies.
The encoder measures approximately 21.21 mm in width, 47.05 mm in height, and 15.88 mm in depth.
The shaft diameter is 6.35 mm, designed for compatibility with standard mechanical couplings.
It has an IP40 rating, providing protection against solid objects larger than 1 mm.
This optical encoder operates at a supply voltage of 5V DC.
It delivers 100 pulses per revolution (PPR).
It features a panel mount design with an axial terminal type for easy integration.
It is manufactured to comply with RoHS standards, reflecting its quality and environmental compliance.
The encoder is manufactured in Mexico, ensuring quality manufacturing standards.
It is suitable for industrial automation systems, motion control sensors, robotics, and CNC machines requiring accurate rotational feedback.
