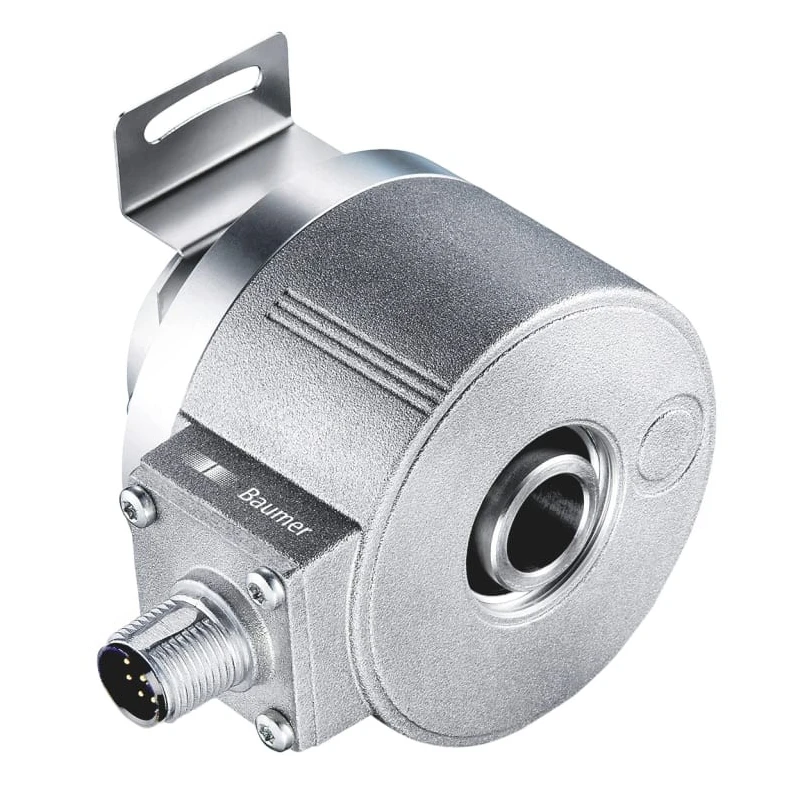

Baumer Optical Incremental Encoder EIL580-TT12.5BN.00512.A 30V, 512 ppr, HTL Push Pull Signal, Hollow Shaft 12 mm

Baumer EIL580-TT12.5BN.00512.A Optical Incremental Encoder is a high-precision device designed for industrial motion control applications. The encoder uses advanced optical technology to deliver accurate position and speed feedback with 512 pulses per revolution. Engineered for durability, it features a die-cast aluminium housing that offers high resistance to mechanical shocks and vibrations, making it suitable for demanding environments.

This encoder has a hollow shaft type with a 12 mm diameter allowing versatile mounting and integration into existing machinery. It supports a maximum rotational speed of 6000 rpm, enabling it to operate efficiently in high-speed industrial automation systems. With a maximum supply voltage of 30V and output signals provided through an HTL push pull interface, the encoder ensures strong and reliable signal transmission compatible with numerous control systems.

The robust IP65 rating protects the unit against dust and water, extending its operational life in harsh industrial conditions. Its operating temperature range from -40°C to +85°C ensures functionality even in extreme temperatures. The hollow shaft flange mount type secures the encoder firmly to the mounting surface, minimizing mechanical looseness.

Switching frequency of 300 kHz facilitates high-speed data output for applications requiring rapid response times, such as robotics, conveyor systems, and CNC machinery. Baumer’s EIL580 series encoders are widely used in industrial, manufacturing, and automation sectors for precise position sensing and rotary motion detection.

Operates at a maximum supply voltage of 30V ensuring reliable performance. Features a hollow shaft with a diameter of 12 mm for flexible mounting options. Output signal type is HTL with push pull interface providing robust signal transmission.

IP65 rated housing protects against dust and water ingress in industrial environments. Supports a maximum rotational speed of 6000 rpm for high-speed applications. Die-cast aluminium housing ensures durability and resistance to shock and vibrations.

Wide operating temperature range from -40°C to 85°C suitable for harsh conditions. Mount type is hollow shaft flange mount for secure installation. Switching frequency is 300 kHz allowing fast signal processing. Precision optical technology provides accurate incremental position feedback.

For reliable and precise incremental encoding solutions, explore more Baumer optical encoders at EnvMart categorized under Optical Encoder products.
