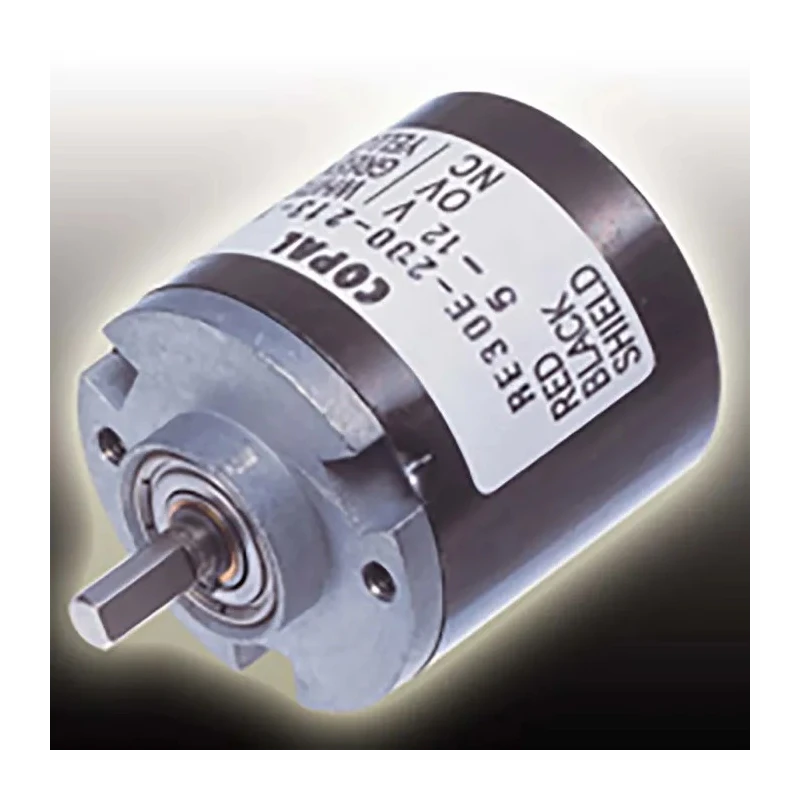

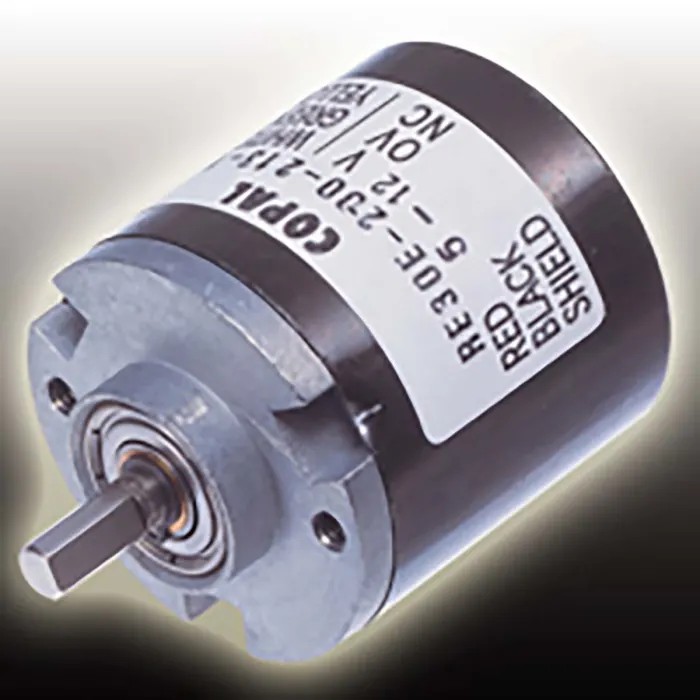

Nidec Components Optical Encoder 360 ppr Pulse, 12V DC, 5V DC, 4 mm Plain Shaft, Panel Mount, Cable RE30E-360-213-1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Nidec Components |
| Model | RE30E-360-213-1 |
| Mount Type | Panel Mount |
| Current Rating | 50mA |
| Series | RE30E |
| Shaft Diameter | 4mm |
| Encoder Type | Incremental |
| Supply Voltage | 12, 5V dc |
| Pulses per Revolution | 360ppr |
| Standards/Approvals | RoHS Compliant |
| Termination Style | Cable |
| Shaft Style | Plain |
| Encoder Signal | Digital Square Wave |
Key Features
- Operates at supply voltages of 12 V DC and 5 V DC for versatile applications.
- Features a 4 mm diameter plain shaft suitable for panel mounting installations.
- Incremental encoder type with cable termination for easy connectivity.
- Includes temperature compensation and zero index signal for reliable operation.
- Operating temperature range from 0 °C to 70 °C with IP40 protection class.
- Low current rating of 50 mA ensuring efficient power consumption.
- RoHS compliant and manufactured in Japan.
- Designed for industrial and electronic applications requiring precise rotation detection.
Product Description
Nidec Components RE30E-360-213-1 optical encoder is a panel mount incremental encoder featuring a 4 mm plain shaft, designed to generate 360 pulses per revolution. The device outputs digital square wave signals at supply voltages of 12 V DC and 5 V DC, making it suitable for various control and measurement applications.
The encoder uses an optical sensing mechanism where an LED light passes through a rotating disk slit, activating a photo-sensor. The photo-sensor output is shaped into a square wave via a voltage comparator and processed for precise position feedback. This model also incorporates a temperature compensation circuit and provides a zero index pulse for reference positioning.
Key features include a durable design with IP40 protection, a current rating of 50 mA, and compliance with RoHS standards, assuring environmental and operational safety. The operating temperature range of 0 °C to 70 °C supports use in standard industrial environments.
This optical encoder is ideal for industrial automation, electronic instrumentation, robotics, HVAC systems, and manufacturing equipment requiring high-accuracy rotational position sensing. The panel mount form factor with cable termination ensures simple installation and reliable electrical connections.
360 pulses per revolution for high-resolution position measurements. Digital square wave signal output compatible with standard encoder interfaces. Dual supply voltage support at 12 V DC and 5 V DC. 4 mm plain shaft and panel mount design for convenient installation.
Temperature compensation circuit enhances performance stability. Zero index signal provides precise rotation reference. IP40 protection class for dust resistance in typical industrial environments. Low current consumption at 50 mA.
RoHS compliant and manufactured in Japan ensuring quality and safety. Explore more Optical Encoders and sensors at EnvMart to enhance your industrial and electronic applications with reliable rotational sensing technology.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model generates 360 pulses per revolution, providing high-resolution position measurements for precise rotation detection.
It operates at supply voltages of 12 V DC and 5 V DC, allowing for versatile applications in various control systems.
This encoder features a panel mount design, making it suitable for easy installation in various industrial applications.
The current rating for this optical encoder is 50 mA, ensuring efficient power consumption during operation.
It outputs a digital square wave signal, which is compatible with standard encoder interfaces for easy integration.
The encoder features a 4 mm plain shaft, designed for compatibility with various mounting setups.
It operates within a temperature range of 0 °C to 70 °C, suitable for standard industrial environments.
Yes, it incorporates a temperature compensation circuit to enhance performance stability across varying temperatures.
This model has an IP40 protection class, providing dust resistance suitable for typical industrial environments.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It is ideal for industrial automation, electronic instrumentation, robotics, HVAC systems, and manufacturing equipment requiring precise rotation detection.
This model features a cable termination style, facilitating easy connectivity during installation.
