Lorlin Key Switch SPDT 1A 2-Way Common-Key Fibreglass Reinforced Polyamide HRL-5-E-S-2-RS

Free Delivery in India | Lowest Global Shipping Charges

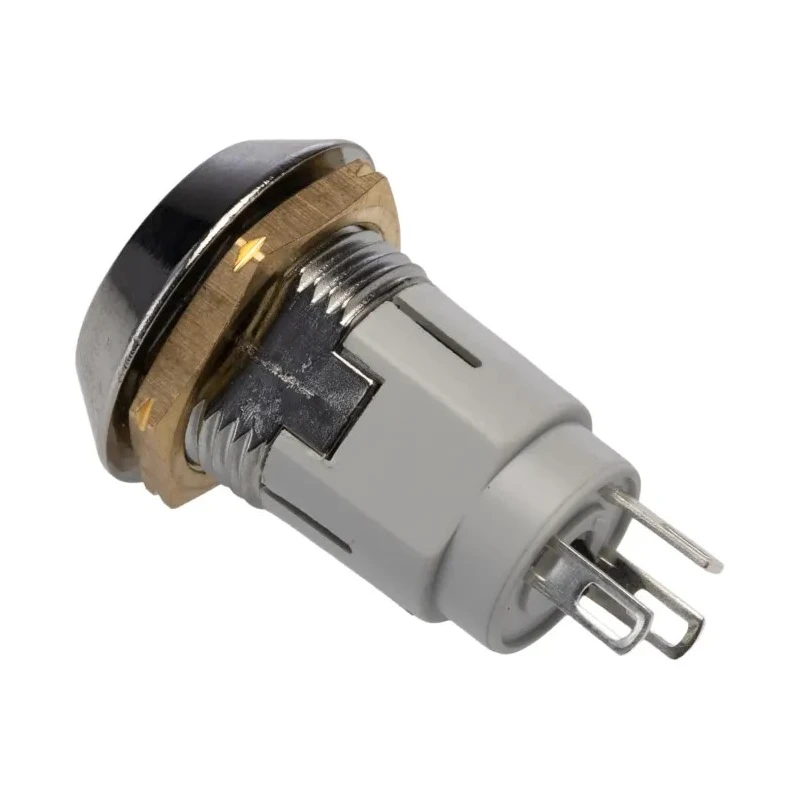

Lorlin Key Switch SPDT 1A 2-Way Common-Key Fibreglass Reinforced Polyamide HRL-5-E-S-2-RS

Name: Lorlin Key Switch SPDT 1A 2-Way Common-Key Fibreglass Reinforced Polyamide HRL-5-E-S-2-RS
Brand: Lorlin
SKU: 361704
Price: 1437.99 INR
Availability: InStock



Category Key Switches Brand Lorlin Condition New

Specifications

Country of Origin	United Kingdom
Brand	Lorlin
Model	HRL-5-E-S-2-RS
Housing Material	Fibreglass Reinforced Polyamide
Contact Material	Silver Plated Brass
Series	HRL
Maximum Operating Temperature	65°C
Contact Configuration	SPDT
Number of Positions	2
Minimum Operating Temperature	-20°C
Terminal type	Solder
Standards/Approvals	RoHS
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	739-2918Brand: LorlinManufacturers Part No.: HRL-5-E-S-2-RS
Contact DC Voltage	24V dc
Switch Contact Current	1A
Mechanical Life	10000Cycles
Contact AC Voltage	24V ac
Key Type	Common
Bezel Shape	Tapered
Key Index Angle	90°

Key Features

Constructed with fibreglass reinforced polyamide housing for durability.
Features trapped key removal for added security and convenience.
Operates with a contact voltage of 24V AC/DC providing effective switching capability.
Includes two nickel plated mild steel keys with double entry design.
Designed for high retention applications with a mechanical life of 10,000 cycles.
Operates reliably in temperatures from -20°C to 65°C.
Silver plated brass contact material ensures good conductivity and corrosion resistance.
Compact 16mm panel cut-out size for easy installation.

Product Description

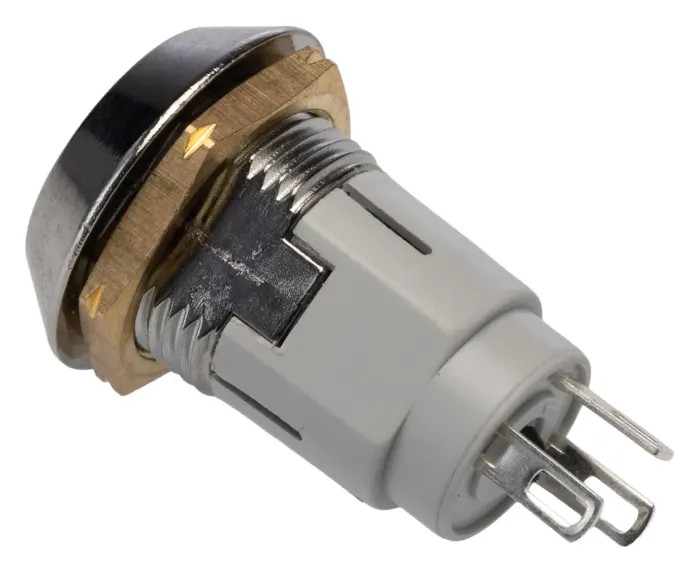

Lorlin HRL-5-E-S-2-RS is a high retention SPDT key switch designed with a 1A switch contact current rating and common key operation. The fibreglass reinforced polyamide housing with a tapered bezel ensures robust mechanical performance and chemical resistance. This key switch includes a trapped key feature, allowing key removal only in the 12 o'clock position for secure operation.

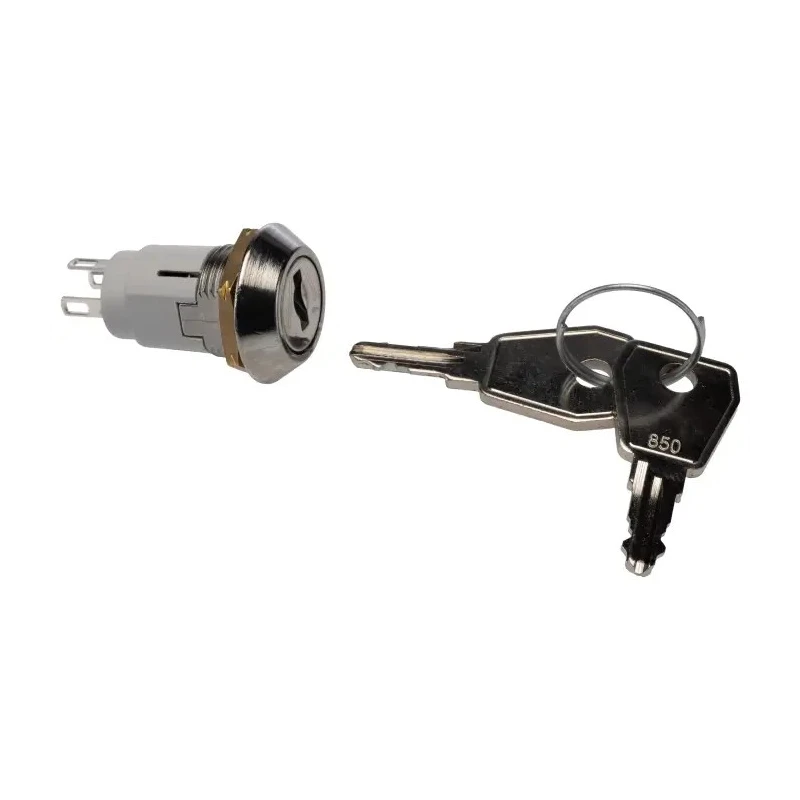

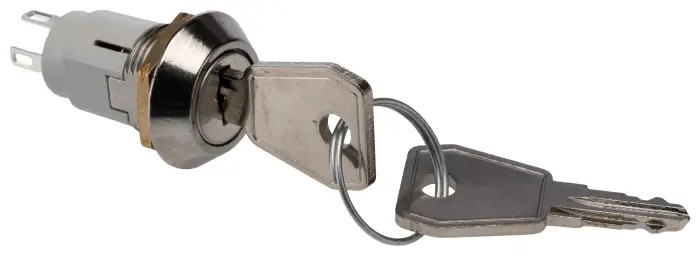

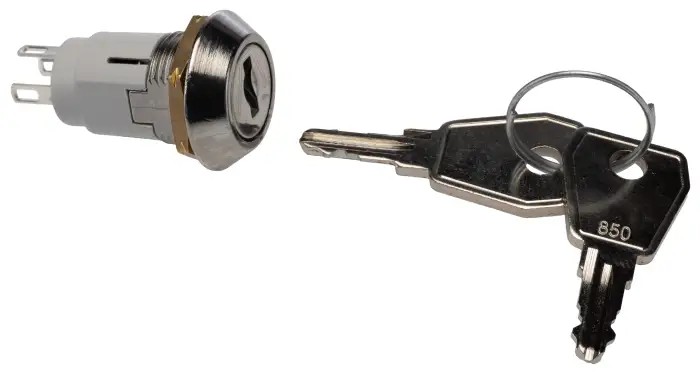

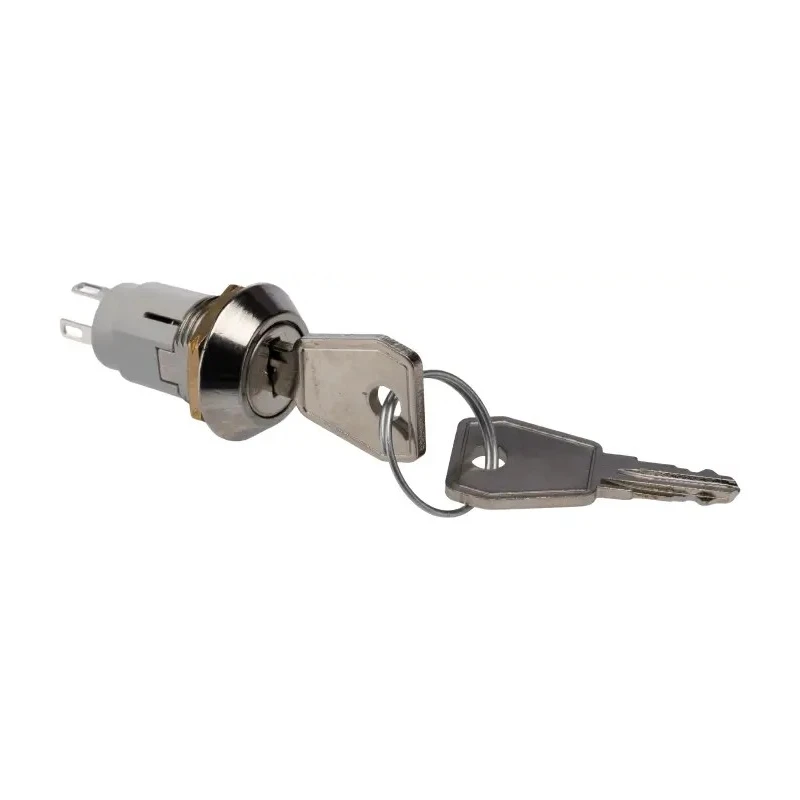

The switch supports both 24V AC and DC contact voltages, with silver plated brass contacts that deliver excellent conductivity and durability. It is supplied with two nickel plated mild steel keys featuring a double entry design, allowing insertion in either orientation.

With a compact 16mm panel cut-out and a key index angle of 90°, it offers precise positional switching. The switch is rated for a mechanical life of 10,000 cycles and operates reliably in environments between -20°C and 65°C. Its high retention design makes it ideal for use in portable devices and vehicle applications requiring secure key control.

Applications include electrical control panels, automation systems, machinery, and equipment where authorized access to switching functions is necessary. This product complies with RoHS standards for hazardous substances.

Fibreglass reinforced polyamide housing for durability and chemical resistance. Trapped key removal provides enhanced security during operation. 1A switch contact current with 24V AC/DC voltage rating. Supplied with two nickel plated mild steel keys with double entry design.

Mechanical life rating of 10,000 cycles ensures long-term reliability. Operates over a temperature range of -20°C to 65°C. Silver plated brass contact material for excellent conductivity. Compact 16mm panel cut-out suitable for varied installations.

High retention lock mechanism ideal for portable and vehicle applications.
