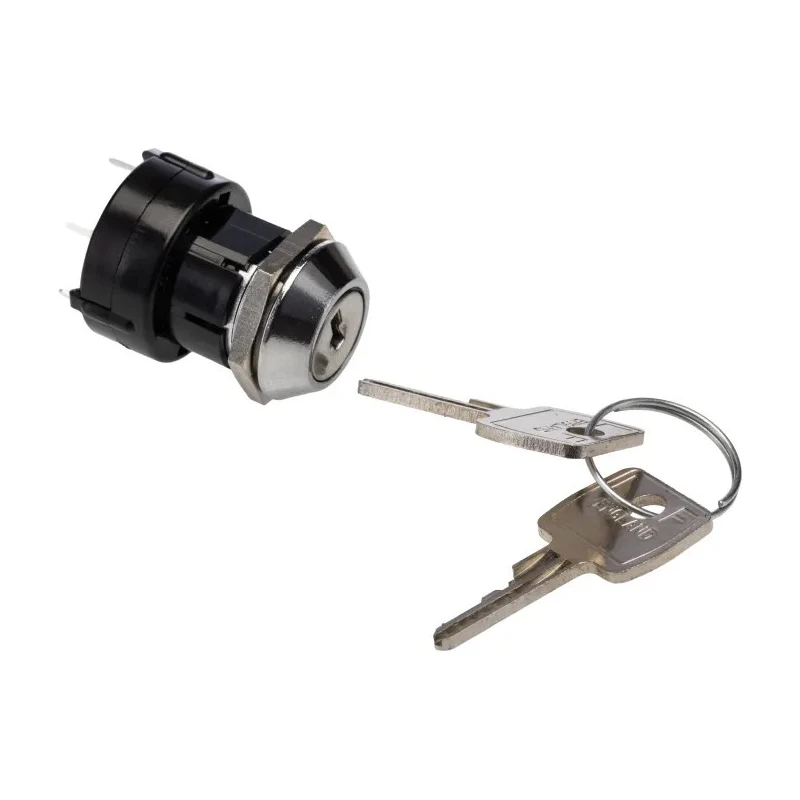

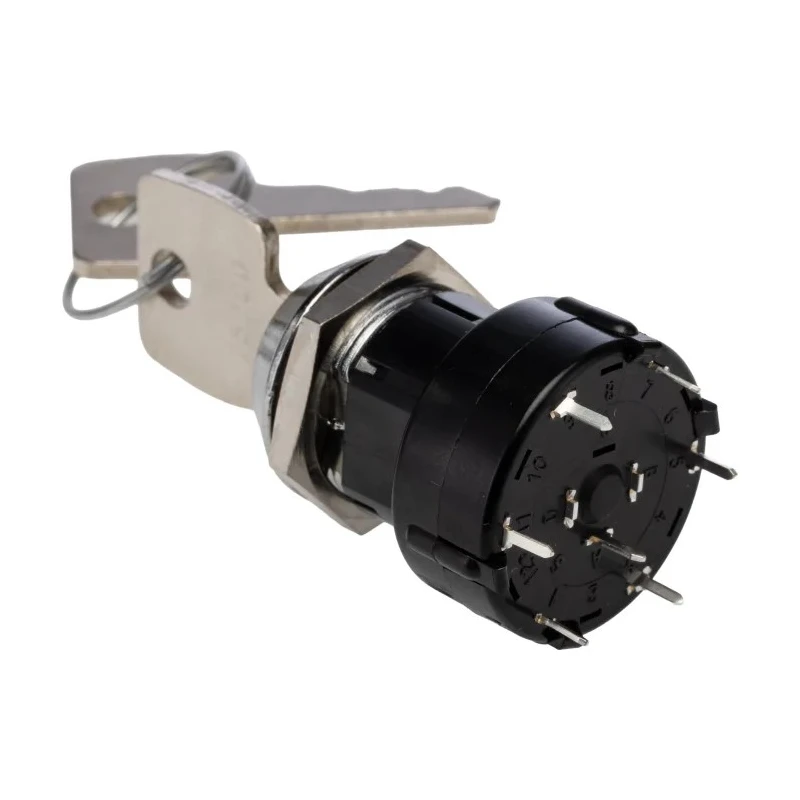

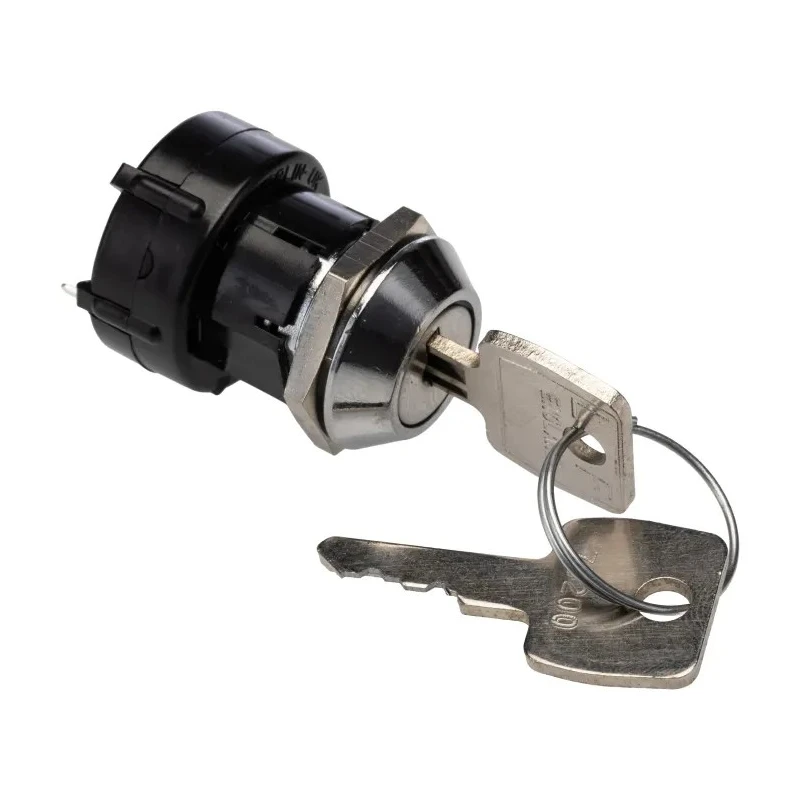

Lorlin Key Switch, Single Pole 6-Way SP6T 150mA, Tapered Bezel, Polycarbonate Housing

Free Delivery in India | Lowest Global Shipping Charges

Lorlin Key Switch, Single Pole 6-Way SP6T 150mA, Tapered Bezel, Polycarbonate Housing

Name: Lorlin Key Switch, Single Pole 6-Way SP6T 150mA, Tapered Bezel, Polycarbonate Housing
Brand: Lorlin
SKU: 408889
Price: 2496.12 INR
Availability: InStock



Category Key Switch Brand Lorlin Condition New

Specifications

Country of Origin	United Kingdom
Brand	Lorlin
Model	SP6T
Housing Material	Polycarbonate
Contact Material	Silver Plated Brass
Series	CKL
Maximum Operating Temperature	85°C
Contact Configuration	SP6T
Number of Positions	6
Minimum Operating Temperature	-30°C
Terminal type	Through Hole
Standards/Approvals	RoHS
Switch Contact Current	150mA
Mechanical Life	10000Cycles
Contact AC Voltage	240V ac
Key Type	Common
Bezel Shape	Tapered
Key Index Angle	60°
Key switch, 1 pole 6 way with same keyBrand	Lorlin

Key Features

The switch features a durable polycarbonate housing with a tapered bezel.
It supports 6 positions with 5 indexed positions and 60° key index angle.
The contact configuration is SP6T with silver plated brass contacts rated for 240V AC.
The key trapping function ensures the key can only be inserted or withdrawn at 60º angles.
The switch is supplied with 2 nickel plated mild steel keys with a common key profile.
The mechanical life rating is 10,000 cycles ensuring reliable switching.
Suitable for panel mounting with a 19mm cut-out and maximum panel thickness of 3.4mm.
Operating temperature range is from -30°C to 85°C for versatile industrial environments.

Product Description

Lorlin SP6T Key Switch CKL5100RS is a high-quality, single pole 6-way key switch designed for reliable electrical control applications. It features a 150mA contact current rating and a common key design for multiple position control.

Constructed with a durable polycarbonate housing and a tapered bezel, the switch ensures long-term operation and panel mount compatibility with a 19mm cut-out and a maximum panel thickness of 3.4mm. The lock housing is zinc alloy providing structural integrity, complemented by silver plated brass contacts which are rated for 240V AC operation.

This key switch offers 6 positions with 5 indexed positions and a 60° key index angle, allowing precise switching. The key trapping feature prevents key removal except at designated positions to enhance safety and control. The mechanical life of the switch is rated at 10,000 cycles, supporting extended use in industrial applications.

The switch comes supplied with two nickel plated mild steel keys following a common key profile allowing ease of operation and replacement. It is suitable for a variety of environments with an operating temperature range from -30°C to 85°C.

This product is ideal for industrial automation, electrical control panels, machinery, and other applications requiring secure and reliable key-operated switching. The switch features a durable polycarbonate housing with a tapered bezel.

Supports 6 positions with 5 indexed positions and 60° key index angle. SP6T contact configuration rated for 150mA and 240V AC. Includes key trapping and comes with 2 common profile nickel plated keys. Mechanical life of 10,000 cycles ensuring longevity.

Panel mount compatible with a 19mm cut-out and max 3.4mm thickness. Operating temperature range from -30°C to 85°C for industrial use. Browse more Key Switches and electrical control components on EnvMart for your industrial and automation needs.
