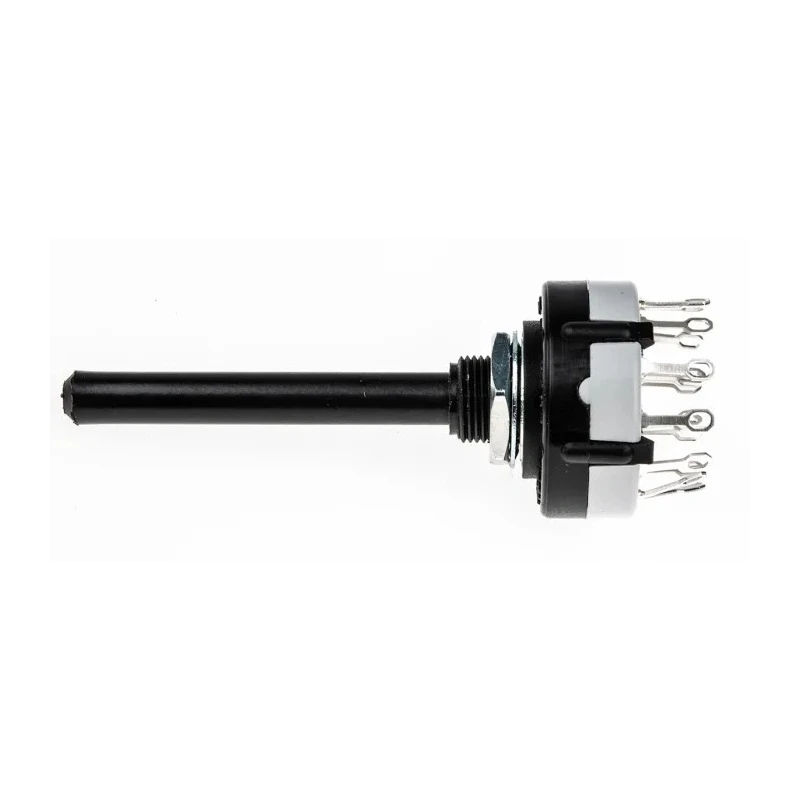

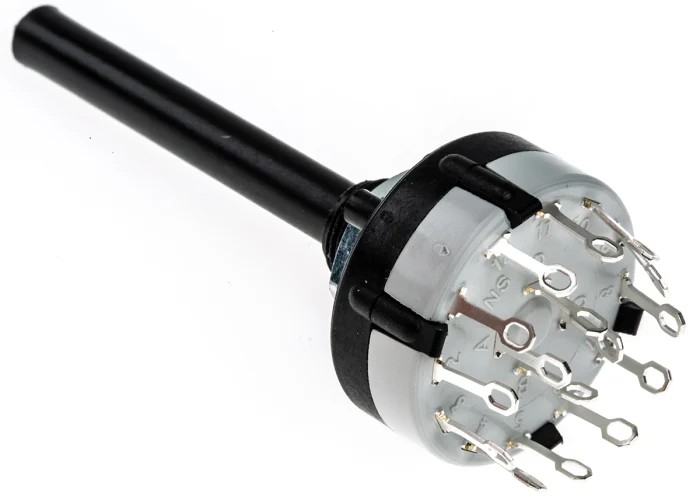

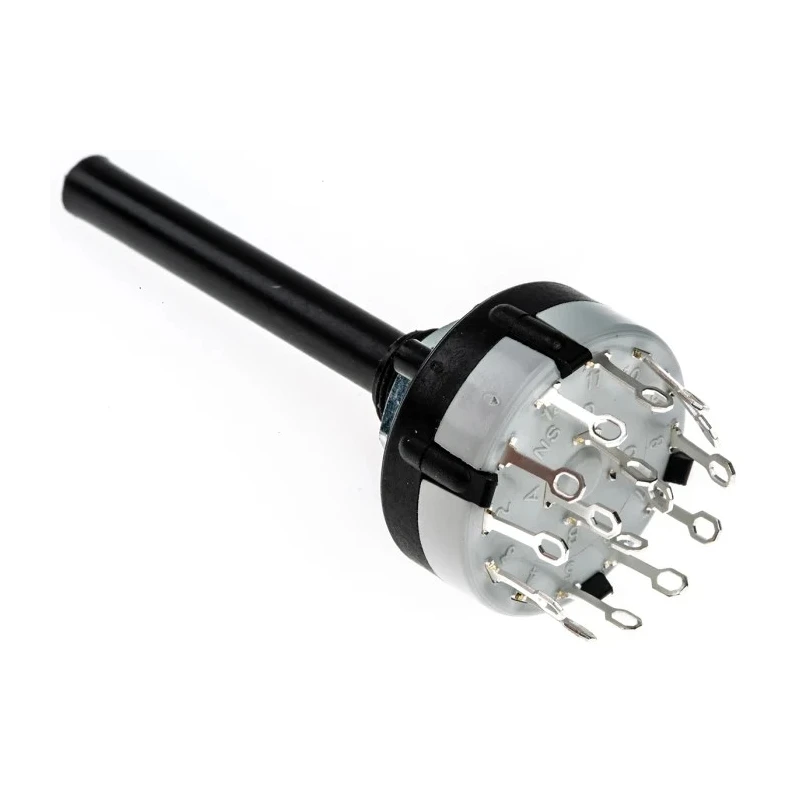

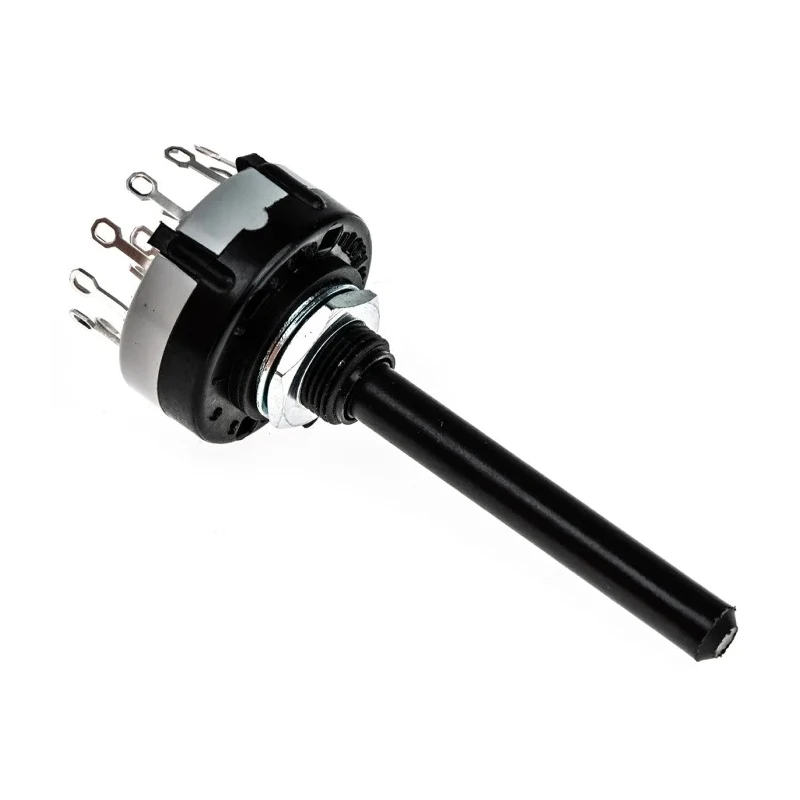

Lorlin 3 Position 4PST Rotary Switch, 150mA, Polyamide, Panel Mount, Solder Tab, 250V AC, CK1032

Lorlin CK1032 3 Position 4PST Rotary Switch is designed for reliable circuit switching in panel-mounted applications. This rotary switch supports three selectable positions, enabling versatile configuration options for controlling electrical loads, signal routing, or selector functions in industrial and commercial electrical systems.

The 4PST (Four Pole Single Throw) contact arrangement allows for simultaneous switching of four separate circuits, providing excellent isolation and flexibility in complex installations. The switch is rated for 150mA contact current and can withstand up to 250V AC, making it suitable for low-power control panels and instrumentation circuits.

Constructed with a polyamide body, the switch offers high mechanical strength and electrical insulation properties. Solder tab terminals provide robust and easy connections for both PCB mounting and direct wiring. The switch is panel-mountable, featuring a spindle diameter of 6mm, body width of 27.5mm, and height of 71.1mm. The design includes adjustable stops and continuous rotation options, with a throw angle of 90 degrees for precise control.

This rotary switch is non-illuminated and comes with a silver actuator for clear visual identification. The mechanical life is rated at 10,000 cycles, ensuring reliable long-term operation even in frequently switched environments. Operating temperature ranges from -30°C to +85°C, allowing usage in a wide range of ambient conditions.

Industrial, laboratory, and commercial applications benefit from the CK1032's precise switching action, durability, and compliance with RoHS standards. It's well-suited for control panels, selector switches, signal routing, manufacturing equipment, and instrumentation.
