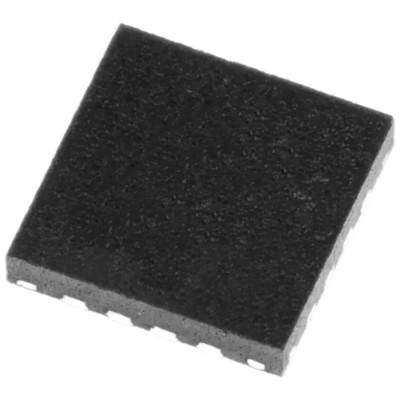

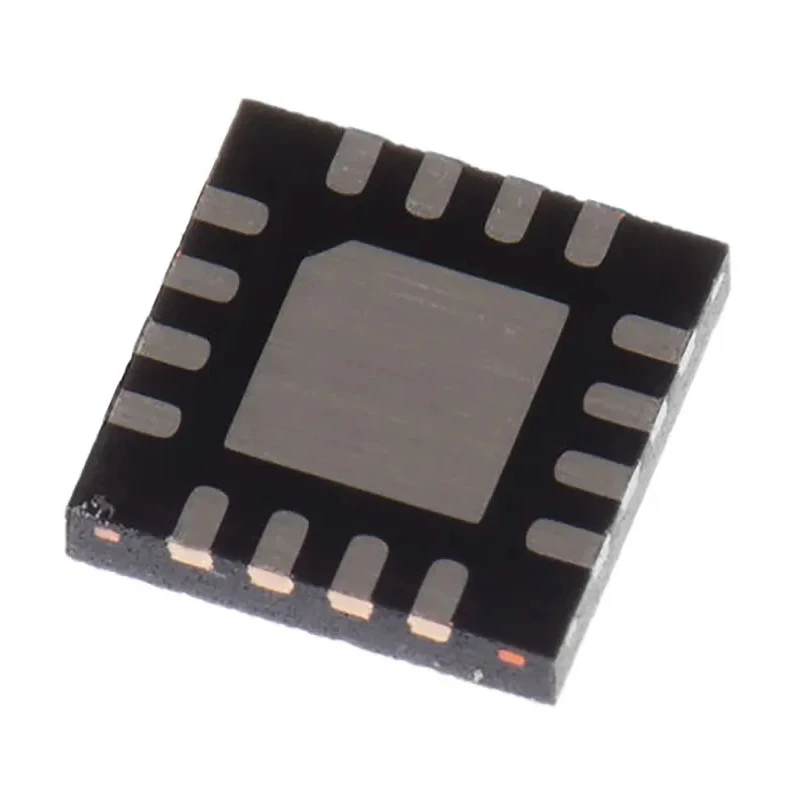

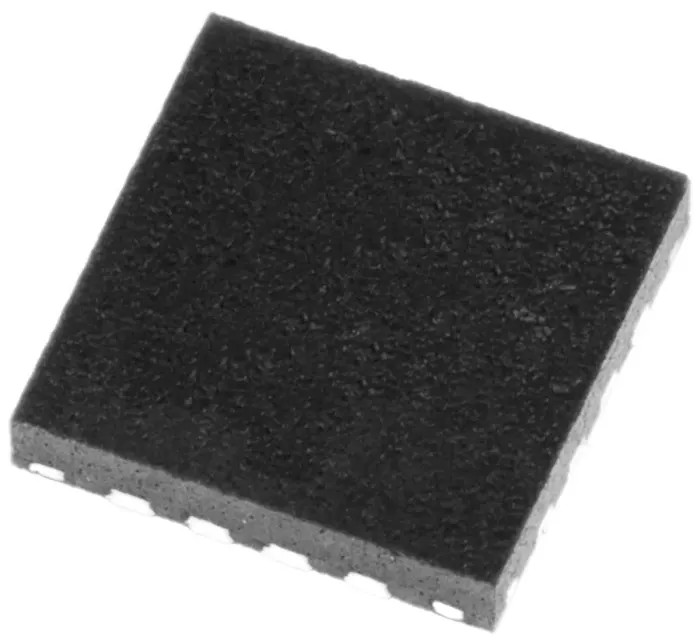

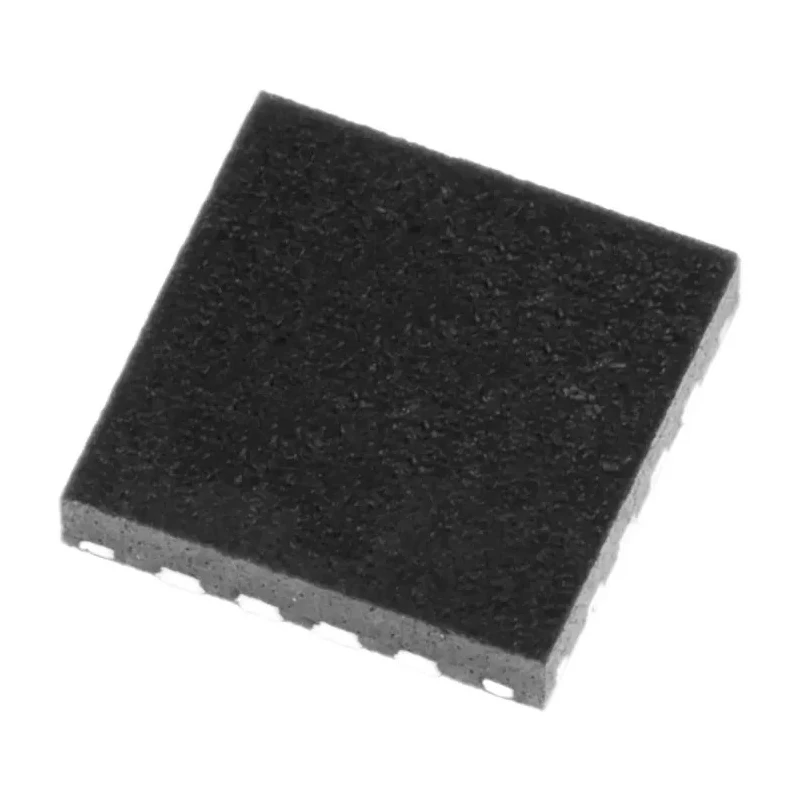

Infineon Capacitive Touch Screen Controller Serial-I2C 2 Wire, 16-Pin QFN CY8C20110-LDX2I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 550μm |
| Length | 3mm |
| Model | CY8C20110-LDX2I |
| Width | 3mm |
| Mount Type | Surface |
| Series | CY8C20110 |
| Input Type | Capacitive Button |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Touch Screen Controller |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-I2C |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 2.4V |
| Supply Current | 2.5mA |
| Sensing Technology | Capacitive |
| Sensing Wire Type | 2 Wire |
Key Features
- Operates with a minimum supply voltage of 2.4V and maximum of 5.25V.
- Utilizes capacitive button input type for accurate touch sensing.
- Designed for surface mount with compact 3mm x 3mm x 0.55mm dimensions.
- Low supply current consumption of 2.5mA optimizes power use.
- Operating temperature range from -40°C to 85°C supports harsh environments.
- Integrates a programmable system-on-chip (PSoC) architecture with MCU for flexible configurations.
- Suitable for industrial, consumer electronics, and embedded touch interface applications.
- Encapsulated in QFN package ensuring reliable surface mounting.
Product Description
Infineon CY8C20110-LDX2I is a capacitive touch screen controller designed for precise capacitive button sensing applications. Featuring a Serial-I2C 2 wire interface and housed in a compact 16-Pin QFN package measuring 3mm length, 3mm width, and 0.55mm height, it offers efficient performance with a low supply current of 2.5mA.
This device supports a supply voltage range from 2.4V to 5.25V and operates reliably within a broad temperature range from -40°C to 85°C, making it suitable for various industrial, consumer electronics, and embedded applications requiring touch interface technology.
Based on CapSense® technology from Cypress Semiconductor, the CY8C20110-LDX2I integrates analog subsystems and an on-board microcontroller unit (MCU) within a programmable system-on-chip (PSoC) architecture. This allows for flexible firmware adaptations to enhance touch sensing accuracy, noise immunity, and interface responsiveness.
Operates with low supply voltage starting at 2.4V. Maximum supply voltage rating of 5.25V ensures electrical robustness. Low supply current consumption at 2.5mA enables power-efficient designs. Compact 3mm by 3mm QFN surface mount package for space-constrained systems.
Wide operating temperature range from -40°C to 85°C to meet industrial standards. 16 pins accommodate necessary signal and power connections effectively. Capacitive button input optimized for sensitive touch detection.
This touch screen controller is ideal for industrial control panels, consumer touch interfaces, home appliances, automotive dash applications, and other environments where reliable capacitive touch sensing is critical.
The product is manufactured under brand Infineon, model CY8C20110-LDX2I, assuring compliance with quality standards and supported by technical documentation including RoHS certification and conformity statements.
EnvMart offers this product within the Touch Screen Sensor category suitable for electronics, electrical engineering, and embedded system projects needing robust capacitive sensing controllers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The CY8C20110-LDX2I operates with a supply voltage range from 2.4V to 5.25V.
This model operates reliably within a temperature range from -40°C to 85°C.
It utilizes a Serial-I2C 2 wire interface for communication.
The QFN package measures 3mm in length, 3mm in width, and 0.55mm in height.
It has a low supply current consumption of 2.5mA, optimizing power use.
The CY8C20110-LDX2I features a total of 16 pins for signal and power connections.
It employs capacitive sensing technology for accurate touch detection.
This model is designed for surface mounting.
It is suitable for industrial control panels, consumer touch interfaces, home appliances, and automotive dash applications.
The input type is capacitive button, optimized for sensitive touch detection.
The CY8C20110-LDX2I belongs to the CY8C20110 series.
The product is manufactured in India.
