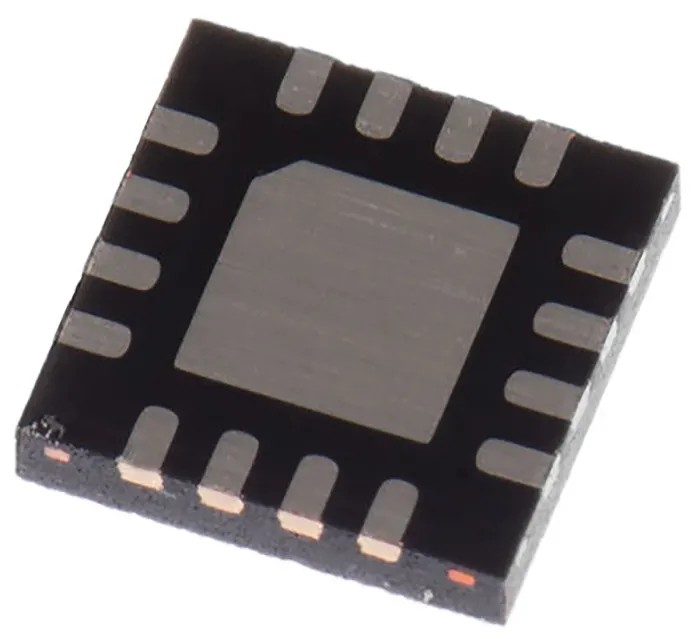

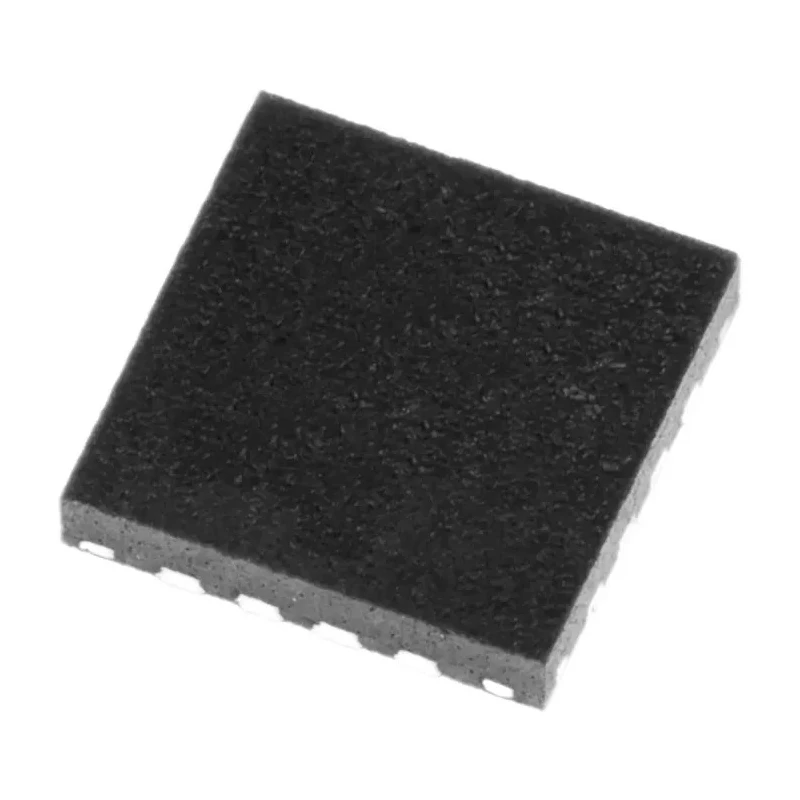

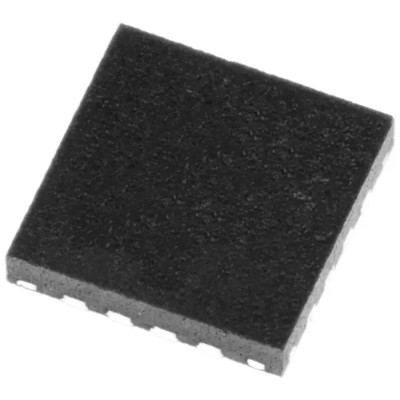

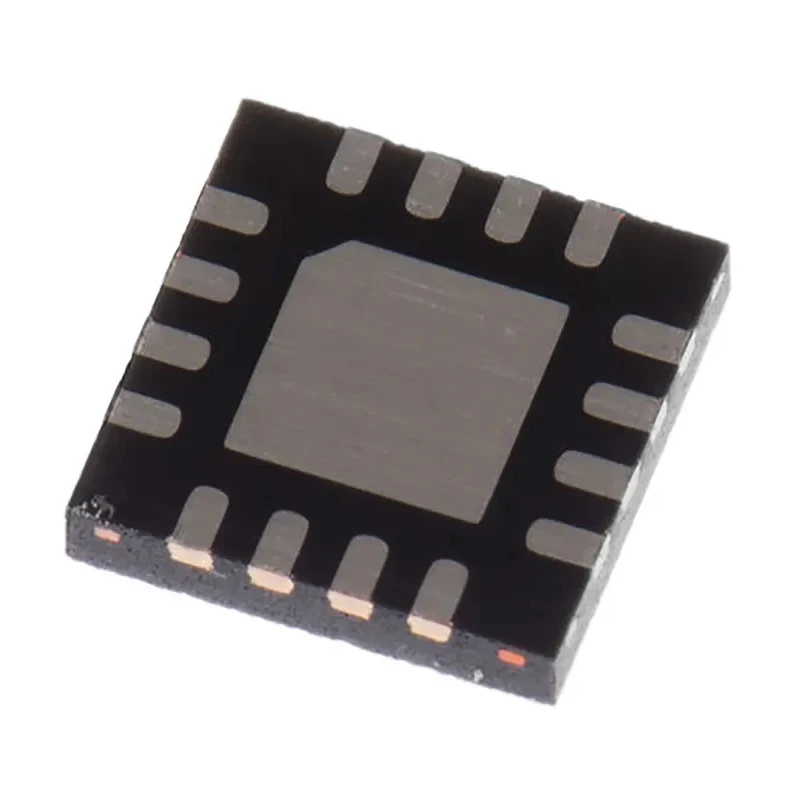

Infineon Capacitive Touch Screen Controller Serial-I2C, 2 Wire, 16-Pin QFN CY8C20110-LDX2I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 550μm |
| Length | 3mm |
| Model | CY8C20110-LDX2I |
| Width | 3mm |
| Mount Type | Surface |
| Series | CY8C20110 |
| Input Type | Capacitive Button |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Touch Screen Controller |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-I2C |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 2.4V |
| Supply Current | 2.5mA |
| Sensing Technology | Capacitive |
| Sensing Wire Type | 2 Wire |
Key Features
- 16-pin QFN package for surface mounting ensures compact integration.
- Operates on a minimum supply voltage of 2.4V and maximum of 5.25V.
- Supports 2-wire capacitive sensing technology for efficient touch detection.
- Wide operating temperature range from -40°C to 85°C suitable for diverse environments.
- Supply current of 2.5mA offering low power consumption.
- Designed without automotive standards, ideal for consumer electronic devices.
- Integrates programmable system-on-chip architecture for versatile capacitive sensing solutions.
Product Description
The Infineon CY8C20110-LDX2I is a capacitive touch screen controller designed for use in advanced electronic devices requiring precise and reliable touch sensing. Featuring a Serial-I2C interface and a compact 16-pin QFN package, this controller supports 2-wire capacitive touch detection, making it ideal for modern capacitive buttons and touch panels.
This device operates with a supply voltage ranging from 2.4V to 5.25V and features a low supply current of just 2.5mA, promoting energy efficiency in battery-powered and portable applications. It can withstand a wide operating temperature range from -40°C to 85°C, ensuring stable performance across diverse industrial, commercial, and consumer environments.
Measuring just 3mm in length and width with a height of 550μm, the CY8C20110-LDX2I fits into tight PCB layouts, enabling compact product designs. It belongs to the CY8C20110 series of CapSense® touch controllers from Cypress Semiconductor, incorporating programmable system-on-chip architecture for enhanced customization.
This capacitive touch controller is tailored for applications such as touch screen interfaces in industrial equipment, household appliances, consumer electronics, and automation systems, where reliable touch input is critical. Its surface-mount package type facilitates efficient manufacturing and assembly processes.
16-pin QFN package for surface mounting ensures compact integration. Operates on a minimum supply voltage of 2.4V and maximum of 5.25V. Supports 2-wire capacitive sensing technology for efficient touch detection. Wide operating temperature range from -40°C to 85°C suitable for diverse environments.
Supply current of 2.5mA offering low power consumption. Dimensions of 3mm x 3mm x 550μm enable space-efficient designs. Designed without automotive standards, ideal for consumer electronic devices. Integrates programmable system-on-chip architecture for versatile capacitive sensing solutions.
This product is new and manufactured in India unless otherwise specified. For additional information on usage and compatibility, see further product documents and technical resources.
Discover more related capacitive touch controllers and sensor ICs available in the Electronics & Electricals category at EnvMart.
Explore more products in our Touch Screen Sensor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage ranging from 2.4V to 5.25V.
The supply current for this unit is 2.5mA, promoting low power consumption.
It can operate in a wide temperature range from -40°C to 85°C, suitable for diverse environments.
The controller features a Serial-I2C interface for communication.
It measures 3mm in length, 3mm in width, and has a height of 550μm.
It supports 2-wire capacitive sensing technology for efficient touch detection.
This unit comes in a 16-pin QFN package designed for surface mounting.
This model is designed without automotive standards, making it suitable for consumer electronic devices.
It belongs to the CY8C20110 series of CapSense® touch controllers.
The controller is designed for surface mounting, facilitating efficient manufacturing processes.
It is tailored for applications such as touch screen interfaces in industrial equipment, household appliances, and consumer electronics.
This product is manufactured in India unless otherwise specified.
