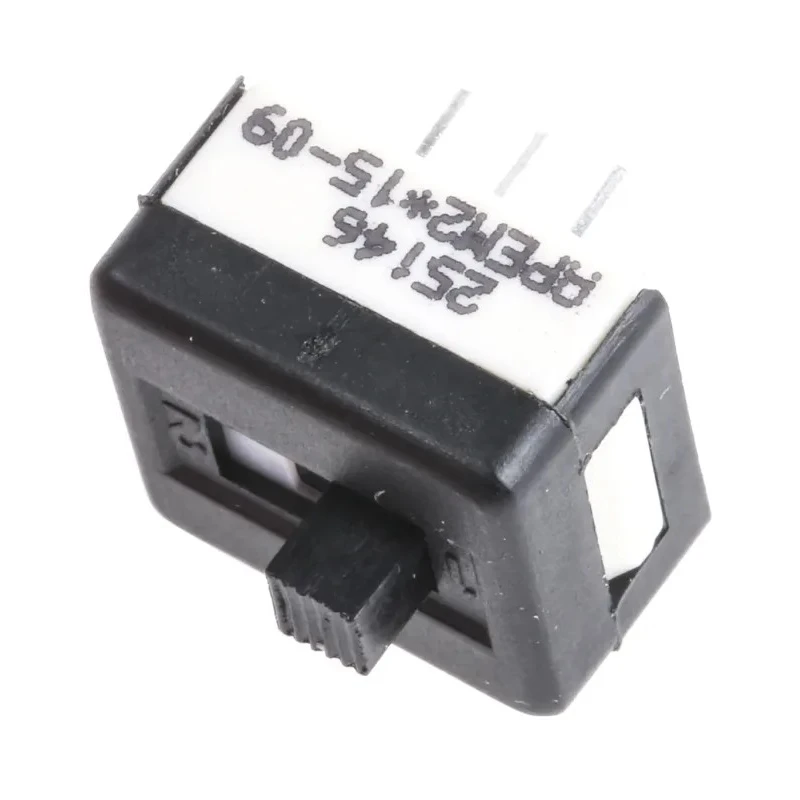

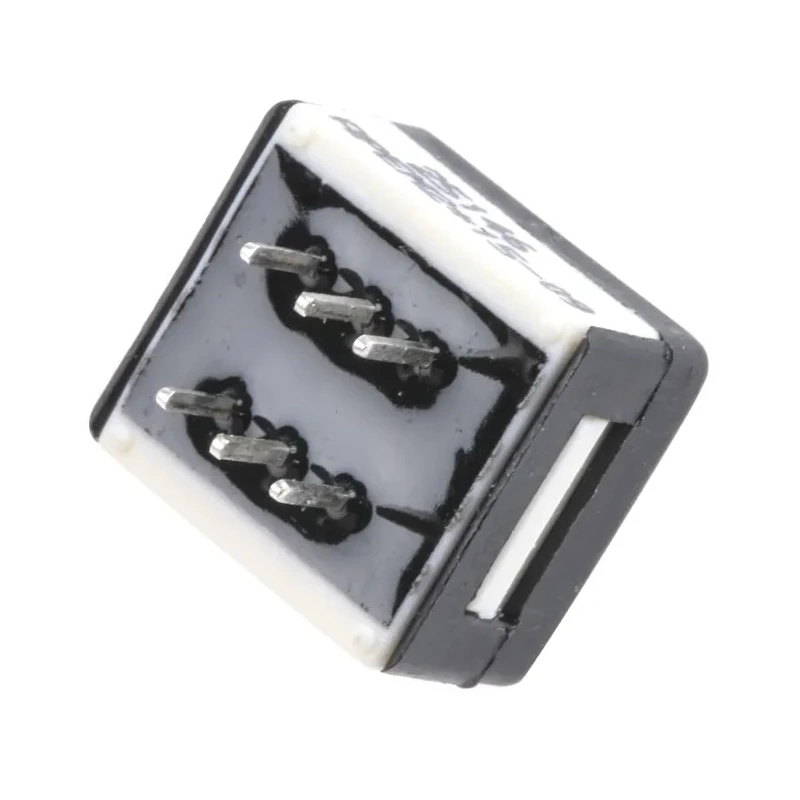

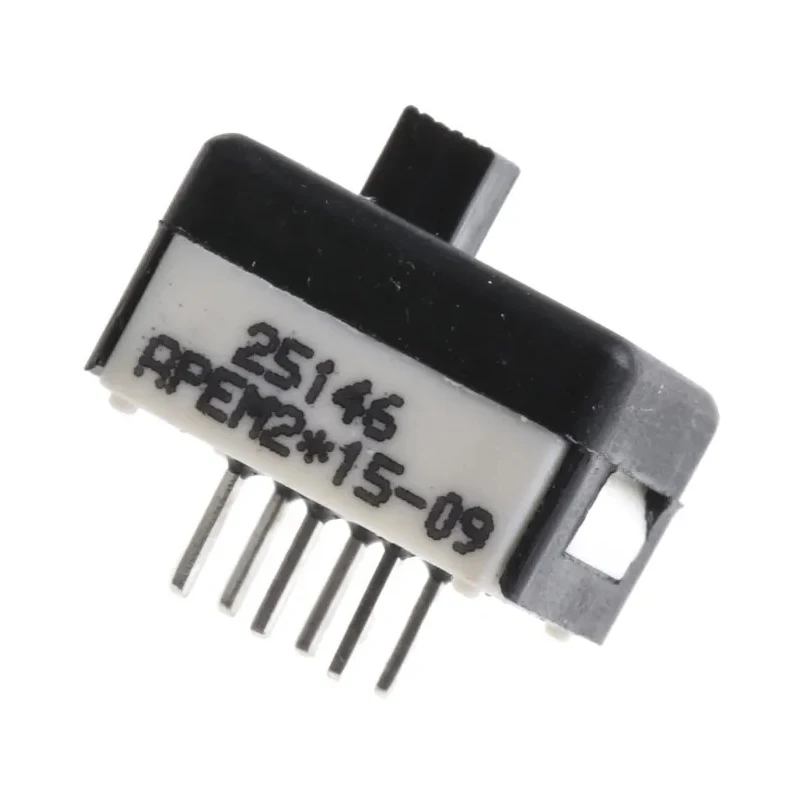

APEM PCB Slide Switch DPDT Latching 1A Fibreglass Reinforced Polyamide 25146NAH

The APEM 25146NAH PCB Slide Switch is a high-quality DPDT latching switch designed for printed circuit board mounting with through hole terminals. Featuring a durable fibreglass reinforced polyamide actuator and a high temperature resistant PBT thermoplastic case, this switch is engineered for demanding electronic applications requiring robust, reliable control.

With a contact configuration of Double Pole Double Throw (DPDT) and a latching operation mechanism, it enables stable ON and OFF positions, suitable for applications needing maintained switch states. The switch contact current rating of 1 ampere and contact voltage of up to 30V DC make it well-suited for low voltage electronic circuits and control systems.

This miniature slide switch has compact dimensions measuring 14.1mm long, 12.5mm wide, and 10.9mm deep, making it ideal for space-constrained environments on PCBs. The through hole terminal mounting ensures secure and reliable solder connections. The non-illuminated design is optimal for standard on/off circuit control without the need for indicator lighting.

Designed to withstand rigorous use, it features a mechanical life expectancy of 20,000 operations and electrical life of 10,000 cycles, providing long-lasting performance in industrial, electronics manufacturing, instrumentation, and control system applications. The operating temperature range is from -40°C to 85°C, supporting use in harsh and variable environments.

Certified to UL standards, this slide switch guarantees safety and reliability compliance, suitable for industrial automation, laboratory equipment, and various electronic devices. The product is manufactured in France, adhering to high quality and manufacturing standards.

Double Pole Double Throw (DPDT) contact configuration ensures versatile circuit control. Latching switch operation provides stable ON or OFF switching states. Supports a switch contact current rating of 1 ampere. Constructed with fibreglass reinforced polyamide actuator for durability and high temperature resistance.

Compact dimensions of 14.1mm length, 12.5mm width, and 10.9mm depth. Through hole terminal type suitable for PCB mounting and robust soldering. Non-illuminated design suitable for standard circuit switching. Maximum contact DC voltage rating is 30V DC.

Mechanical life expectancy of 20,000 operations and electrical life of 10,000 cycles ensures longevity. Operates reliably between -40°C minimum and 85°C maximum ambient temperatures. Certified to UL safety standards ensuring quality and safety compliance.
