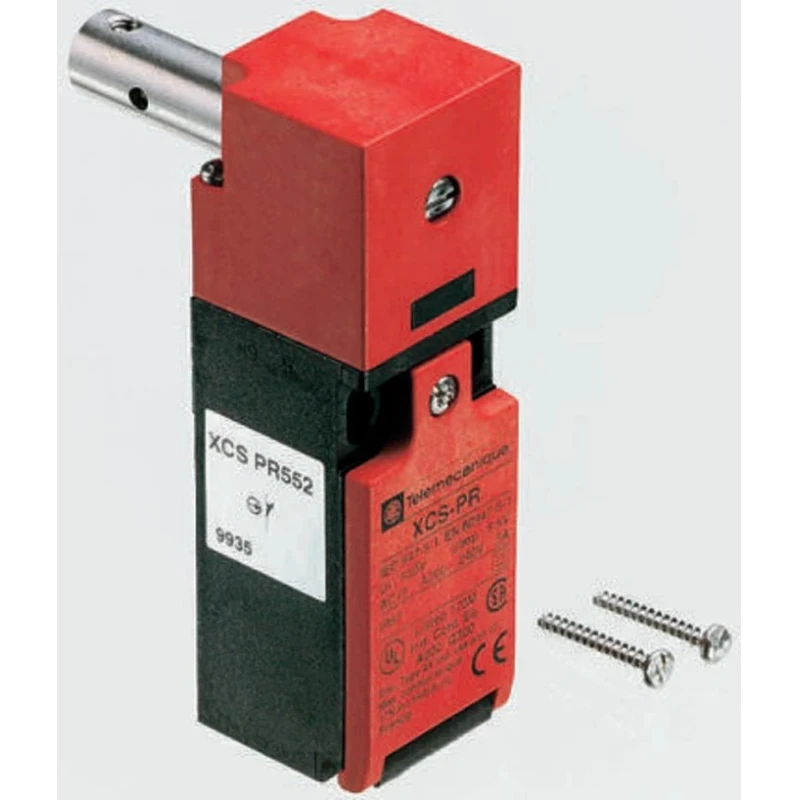

Telemecanique Sensors XCS Safety Hinge Switch Plastic Housing IP67 XCSPR752

Telemecanique Sensors XCSPR752 Safety Hinge Switch is designed to provide reliable safety interlock functions for light industrial machinery. Its plastic housing and robust IP67 ingress protection rating ensure protection against dust and water ingress, making it suitable for demanding industrial environments.

This safety hinge switch is ideal for use on hinged or rotary protective covers with a small opening radius, such as double gate guards. It offers precise tripping with a 5° displaced trigger angle, activating safety contacts to interrupt power when the cover is opened.

The switch features a single cable entry of M16 x 1.5 thread size and screw clamp terminals for durable, secure electrical connections. It operates safely and reliably across a temperature range from -25°C up to 70°C, accommodating wide industrial ambient conditions.

Electrical ratings include contact voltages of 250V DC and 240V AC with a current capacity of 3A. The slow break safety contacts have positive opening operation ensuring that normally closed contacts open when the spindle is displaced beyond 5°.

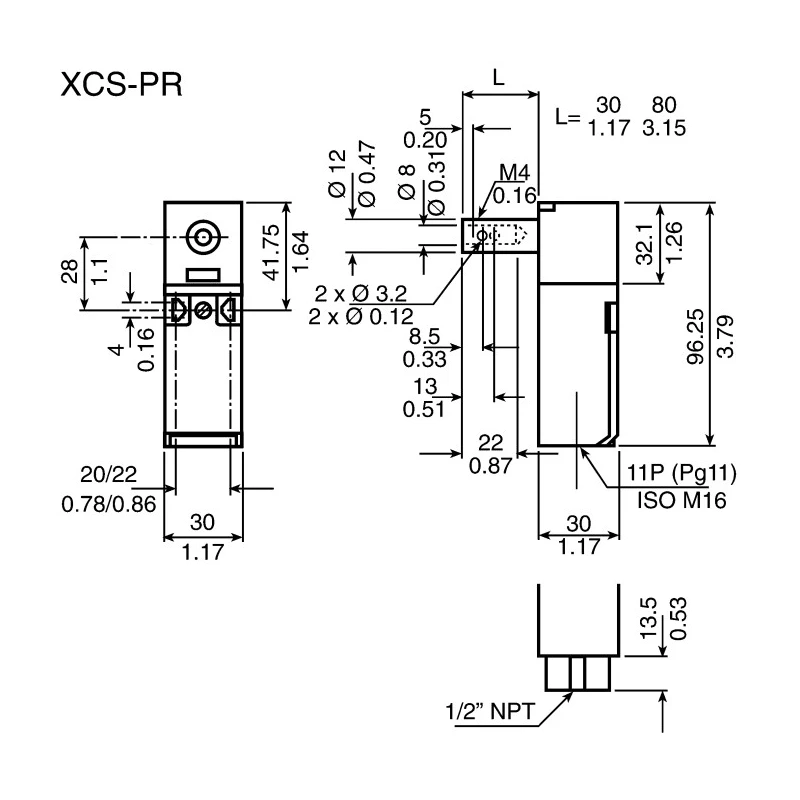

Mechanical life expectancy of 1,000,000 cycles ensures long-term reliability and reduces maintenance intervals in safety-critical applications. Its compact dimensions of 96mm height and 30mm width allow for easy integration into safety interlock systems.

Designed for light industrial machines with hinged or rotary protective covers with small opening radius. Two outputs with a 5° displaced tripping angle for accurate operation. Plastic housing providing IP67 protection against dust and water.

Single cable entry (M16 x 1.5) with screw clamp terminals. Contact ratings: 250V DC, 240V AC, 3A maximum current. Operating temperature range: -25°C to 70°C. Complies with EN 1088/ISO 14119, EN/IEC 60947-5-4, EN/IEC 60947-5-1, UL 508, and CSA C22.2 No. 14 standards.

Mechanical life of 1,000,000 cycles for durable performance. Compact size with height 96mm and width 30mm.

This switch is especially suited for industrial, electrical automation, manufacturing safety interlock applications, and environments requiring reliable ingress protection and mechanical robustness. It provides essential safety monitoring to prevent unintended access to hazardous machinery.
