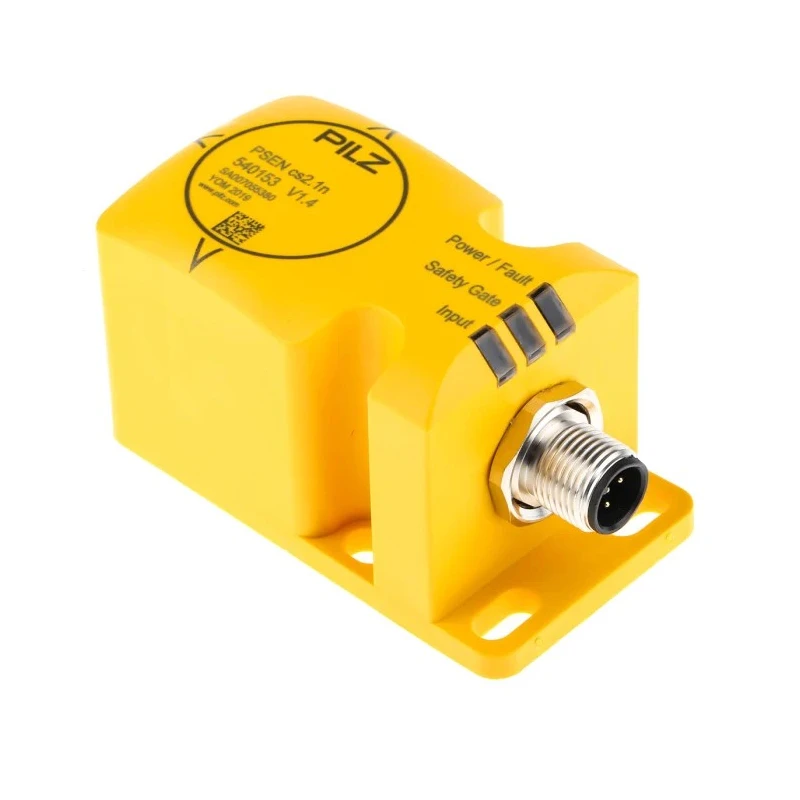

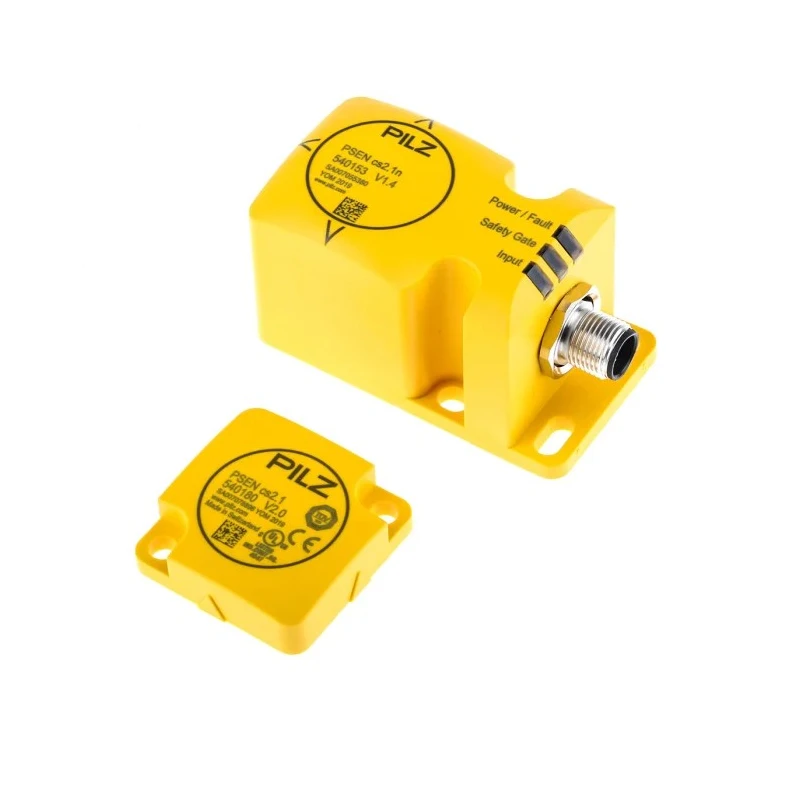

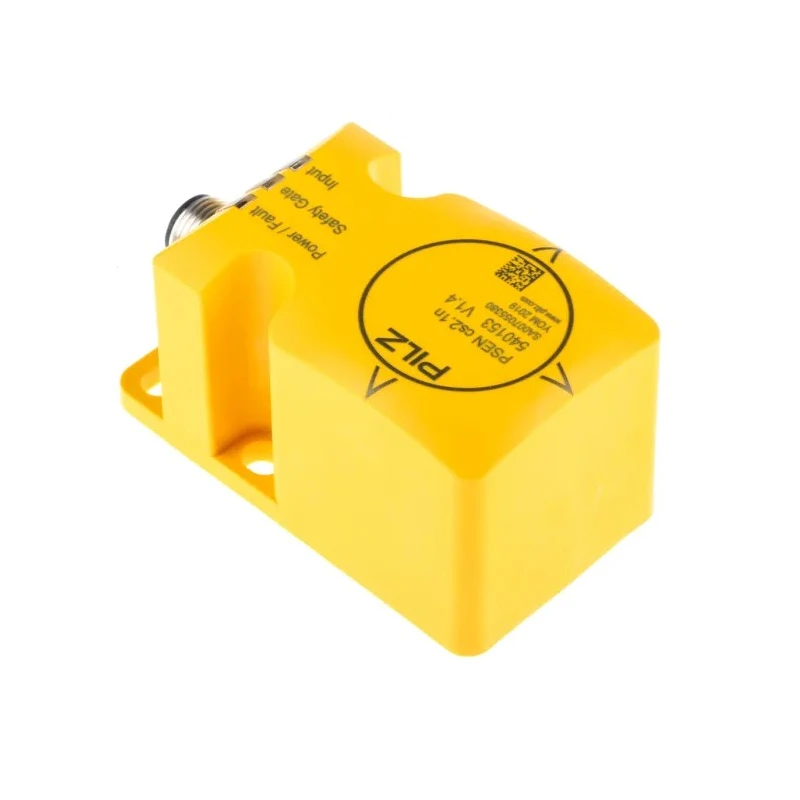

Pilz PSEN Series Transponder Non-Contact Safety Switch Polybutylene Terephthalate Housing 24V DC 2 Safety Contacts 540103

Pilz 540103 PSEN Series Transponder Non-Contact Safety Switch is designed for advanced presence detection in industrial automation and safety systems. The switch utilizes transponder technology with Pilz coding type "Coded" ensuring secure and reliable dual-channel operation with two safety outputs. This device operates on 24V DC and supports a switching current of 500mA, suitable for a wide range of automation applications.

The housing is made of robust polybutylene terephthalate in a highly visible yellow color, providing excellent durability and safety compliance. Equipped with two safety contacts and an M12 connection and terminal type, the switch supports installation flexibility and reliable communication with control systems.

Designed for industrial environments, it offers an IP67 rating for dust and water protection and complies with several international standards and approvals including CE, FCC, UL, EAC, TUV, and IC. The rectangular body measures 74mm in length, 40mm in width, and 40mm in depth, making it compact for integration into safety circuits.

Additional features include a LED display to indicate actuator status and supply voltage/fault conditions, and it supports 4 directions of actuation for versatile usage. The actuator is included with the product, facilitating immediate deployment in safety interlock applications.

This non-contact safety switch is ideal for ensuring employee safety in environments requiring monitored access control and machine guarding in industrial, manufacturing, automation, and commercial safety systems. Its transponder sensor principle enhances operational safety without mechanical wear.

Constructed with durable polybutylene terephthalate housing in yellow color for high visibility. Operates at 24V DC with a switching current of 500mA ensuring reliable safety switching. Equipped with 2 safety contacts and supports 4 directions of actuation.

M12 connection and terminal type providing secure and standard interfacing. Provides 15 mm switching distance offering precise presence detection. Certified with approvals including CE, FCC, UL, EAC, TUV, and IC for compliance and safety.

Features LED display indicating actuator state and supply voltage/fault diagnostics. IP67 rated for protection against dust and water ingress. Compact rectangular design with dimensions 74mm length, 40mm width, and 40mm depth.

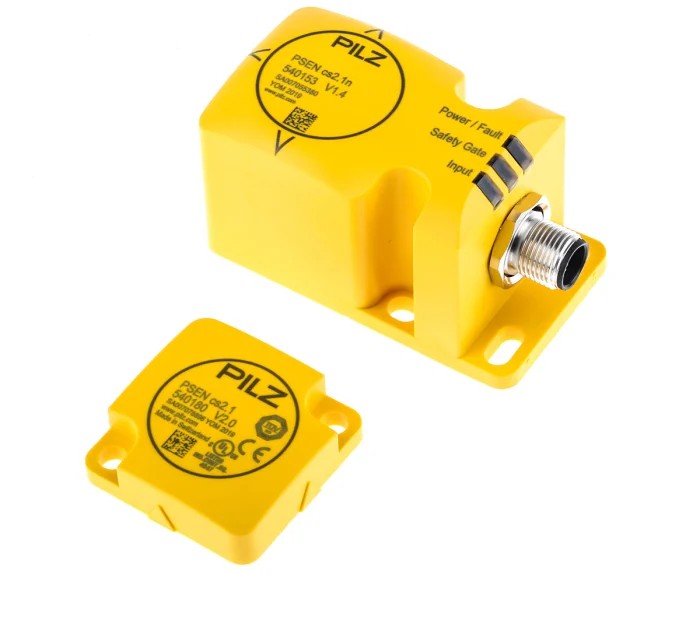

Actuator is included with the product for immediate installation. Explore the full range of Pilz Safety Switches on EnvMart to enhance workplace safety and equipment protection with industry-leading technology.
