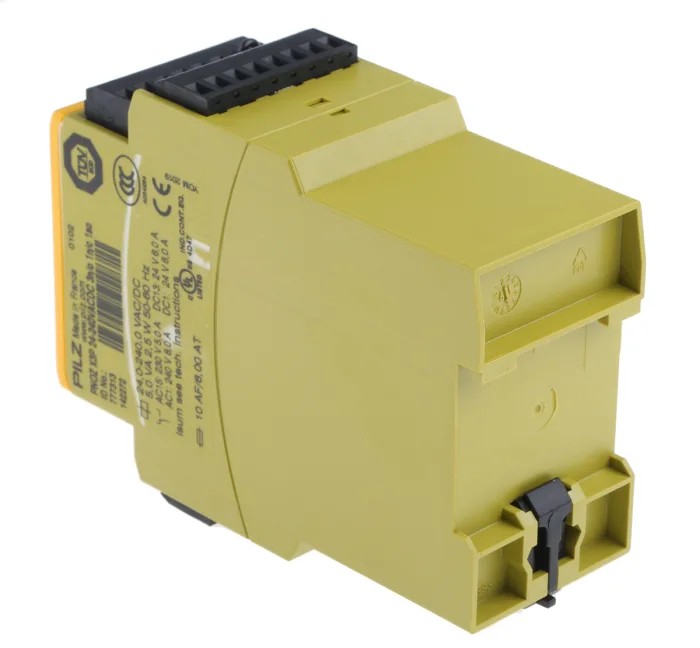

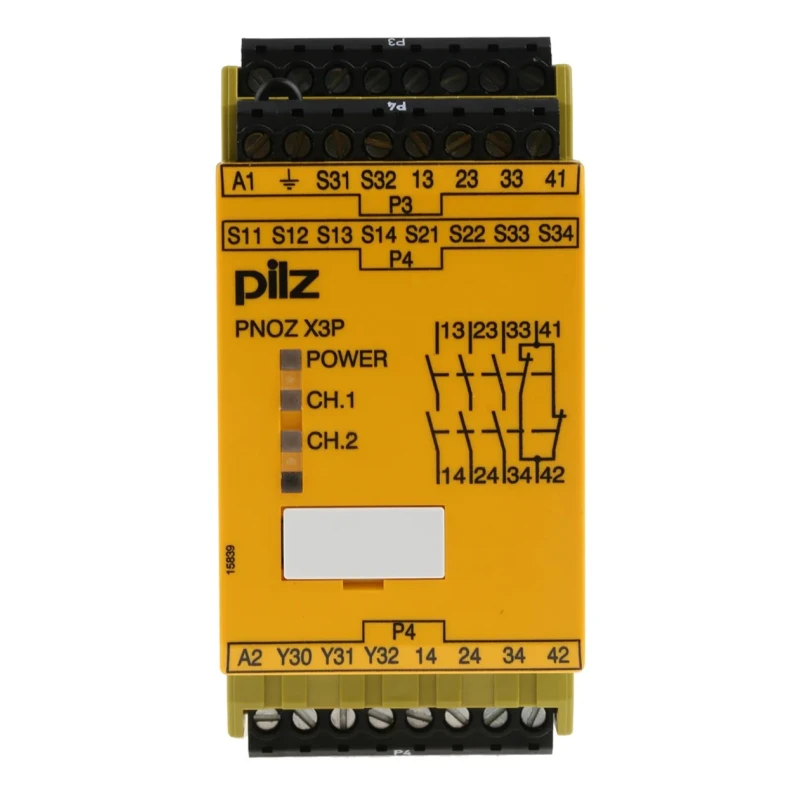

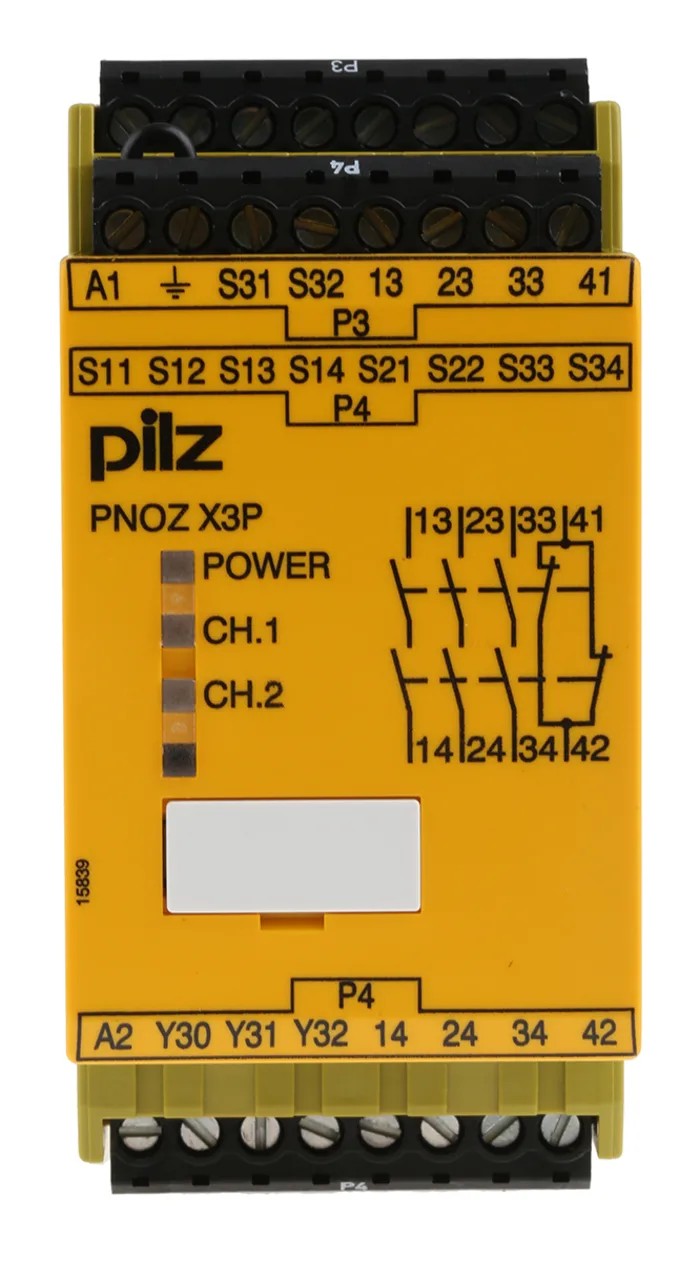

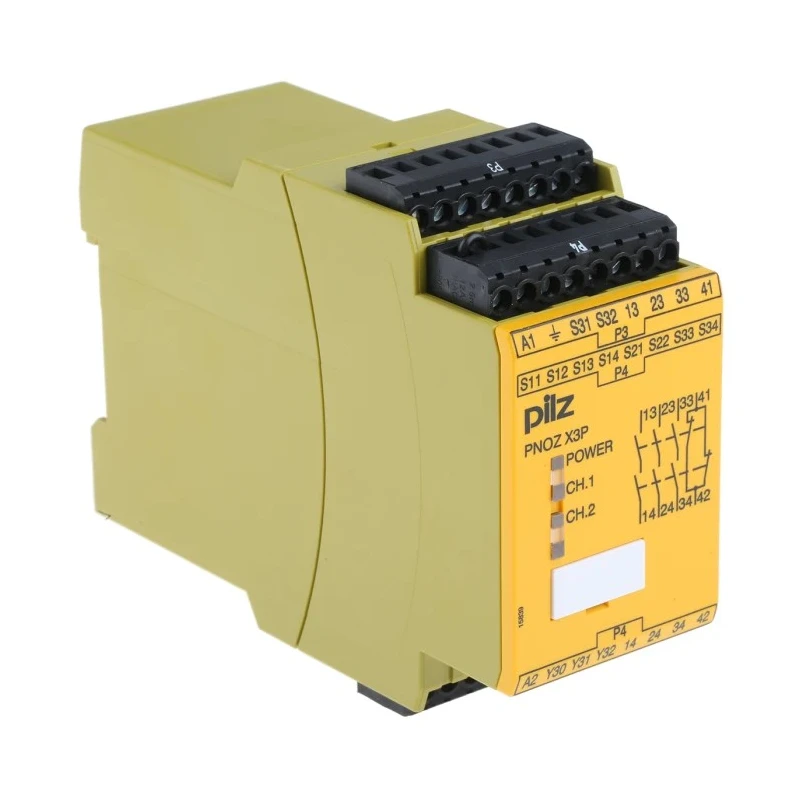

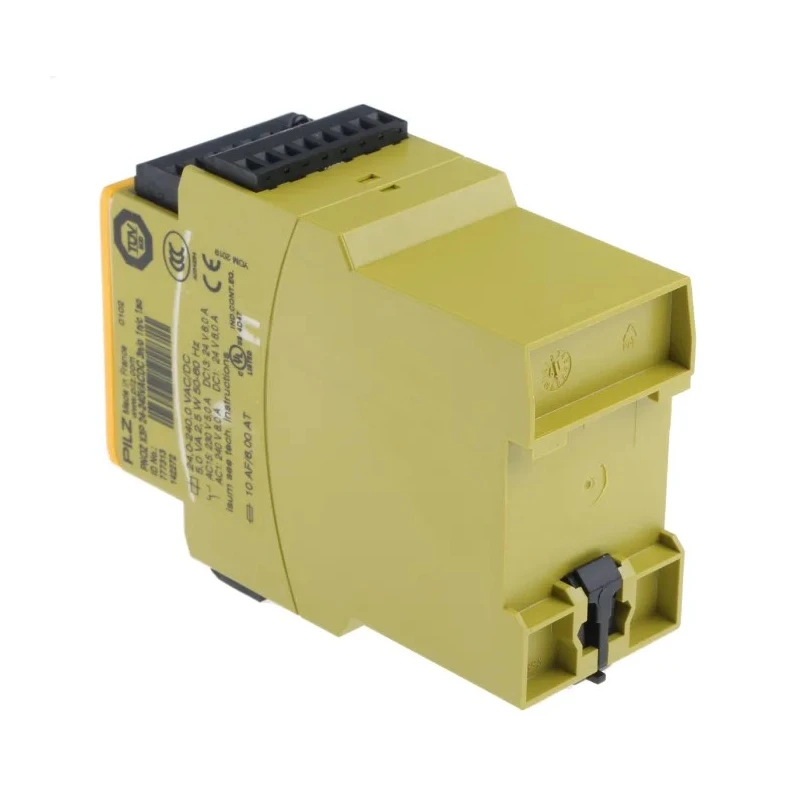

Pilz Safety Relay PNOZ X3P, 24V AC/DC, 240V AC/DC, 3 Safety Contacts, 1 Auxiliary Contact 777313
Specifications
| Country of Origin | France |
|---|---|
| Power Consumption | 2.5W |
| Brand | Pilz |
| Height | 121mm |
| Length | 94mm |
| Model | 777313 |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | PNOZ X3P |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Safety Category | 4 |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Reset Method | Automatic & Manual |
| Coil Voltage | 24, 240V ac/dc |
| Safety Contacts | 3 |
| Number of Auxiliary Contacts | 1 |
| Schmersal SRB-E, 24V ac/dc Safety Relay, 3 Safety Contacts, 1Brand | Schmersal |
| Semiconductor output signals | switch status channel 1 / 2 |
| Pilz PNOZ s4, 240V ac/dc, 48 V ac/dc Safety Relay, 3 Safety Contacts, 1Brand | Pilz |
| Pilz PSWZ X1P, 24V ac/dc, 240 V ac/dc Safety Relay, 2 Safety Contacts, 1Brand | Pilz |
Key Features
- Operates at 24V and 240V AC/DC voltage ranges.
- Equipped with screw terminals and DIN rail mount for secure installation.
- LED indicators display switching channel status and supply voltage monitoring.
- Features both automatic and manual reset methods.
- Power consumption is 2.5 watts ensuring energy efficiency.
- Compatible with industrial safety applications like emergency stops and safety gates.
- Robust design with IP20 protection and temperature operating range -20°C to 55°C.
- Redundant safety circuitry with built-in self-monitoring enhances reliability.
Product Description
Pilz 777313 Safety Relay PNOZ X3P operates at 24V and 240V AC/DC with 3 safety contacts and 1 auxiliary contact, delivering reliable automatic safety interruption suitable for hazardous industrial environments.
This model includes features such as LED status indicators for switching channels and supply voltage monitoring. It supports both automatic and manual reset methods and uses screw terminals for secure wiring. The DIN rail mounting system allows easy installation in control panels.
With a power consumption of 2.5W, it ensures energy efficiency without compromising functionality. Its design includes a redundant safety circuit with built-in self-monitoring, ensuring effective safety operation even if components fail. The device is short circuit proof on the transformer and equipped with an electronic fuse on DC supply.
The PNOZ X3P safety relay is ideal for applications including emergency stop buttons, safety gate limit switches, reset buttons, and light barriers in automated environments such as factories and warehouses. Operating temperature ranges from -20°C to 55°C with an IP20 protection rating making it suitable for industrial settings.
Certified to international safety standards including EN 60204-1, EN (IEC) 62061, EN ISO 13849-1, VDE 0113-1, and EN 60947-5-1, this product carries CE, cULus Listed, TÜV, KOSHA, and CCC approvals. Manufactured in France, the PNOZ X3P delivers industrial-grade reliability and compliance.
Operates at 24V and 240V AC/DC voltage ranges. Equipped with 3 safety contacts and 1 auxiliary contact for extended control. LED indicators for switching channel status and supply voltage monitoring. Screw terminal connections and standard DIN rail mounting.
Automatic and manual reset mechanisms. Power consumption of 2.5 watts. Redundant safety circuit with self-monitoring. IP20 rated and temperature range from -20°C to 55°C. Compliant with multiple international safety standards.
Suitable for emergency stop and safety gate applications. Explore more safety relay products and automation solutions on EnvMart for enhanced industrial safety and compliance.
Explore more products in our Safety Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at 24V and 240V AC/DC voltage ranges.
It is equipped with 3 safety contacts and 1 auxiliary contact.
The power consumption is 2.5 watts, ensuring energy efficiency.
The operating temperature range is from -20°C to 55°C.
It uses a DIN rail mounting system for secure installation in control panels.
This model has an IP20 protection rating.
The relay supports both automatic and manual reset methods.
It is equipped with screw terminals for secure wiring connections.
It is certified to international safety standards including EN 60204-1, EN (IEC) 62061, and EN ISO 13849-1.
This safety relay is manufactured in France.
It is suitable for applications such as emergency stop buttons, safety gate limit switches, and light barriers in industrial environments.
The dimensions are 121mm in height, 45mm in width, and 94mm in length.
