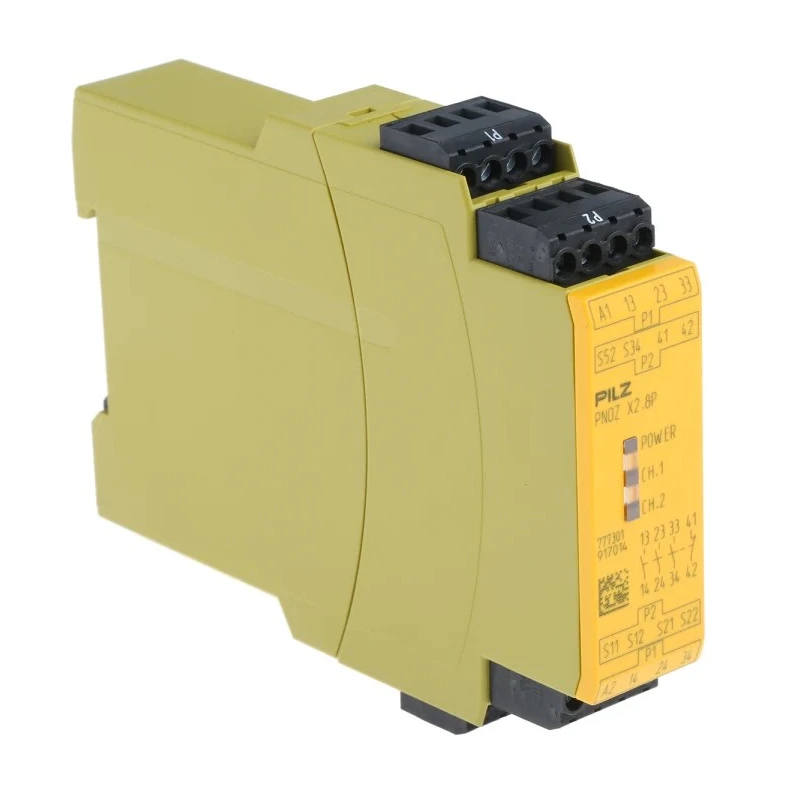

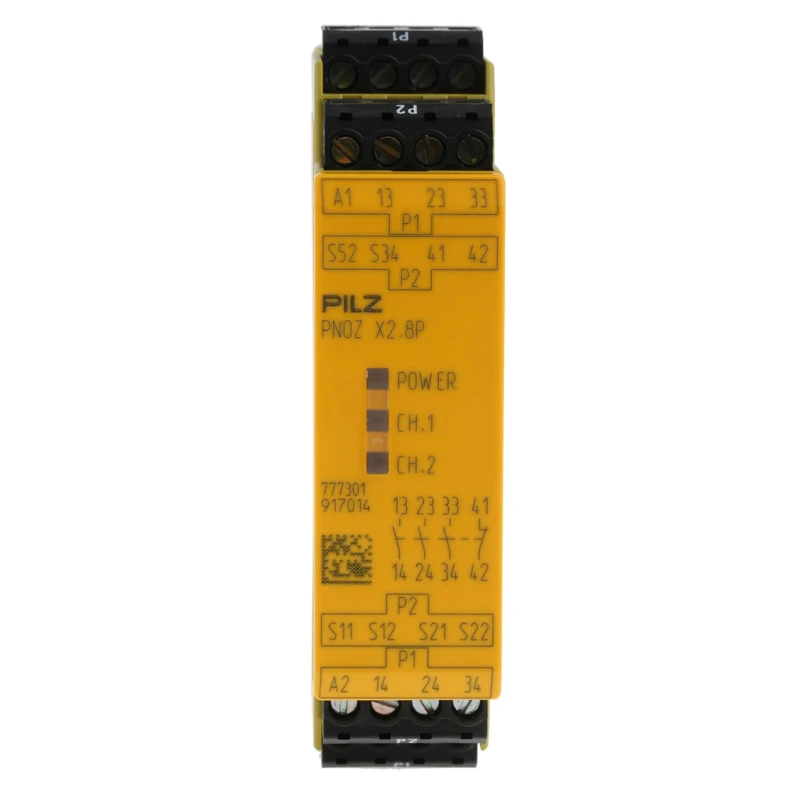

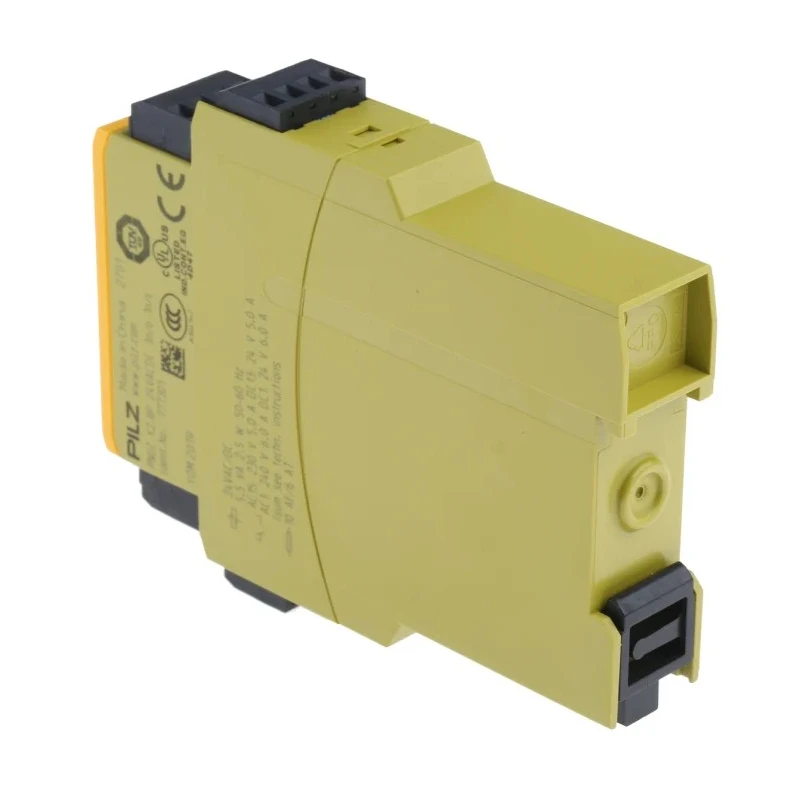

Pilz PNOZ X2.8P 24V ac/dc Safety Relay with 3 Safety Contacts and 1 Auxiliary Contact 777301

Pilz 777301 Safety Relay PNOZ X2.8P 24V ac/dc is a premium safety relay designed to enhance industrial safety and operational control. This unit features 3 safety contacts and 1 auxiliary contact with automatic and manual reset capabilities, enabling flexible and reliable safety circuit management.

The relay is DIN rail mounted, facilitating straightforward installation in industrial control panels, with robust screw terminals ensuring secure and maintenance-free connections. Operating power consumption is just 2 watts, contributing to energy-efficient setups.

Its LED indicators provide real-time feedback of supply voltage and switch status, assisting maintenance and fault diagnosis. The PNOZ X2.8P is IP20 rated, making it suitable for standard industrial environments, and it can operate reliably across a broad temperature range from -10°C to 55°C.

With compliance to Safety Category 4 standards, this relay offers high-level protection for machinery and operators. Safety applications include safety gate monitoring, instantaneous emergency stop (E-STOP), limit switch monitoring, card reader integration, and light beam device monitoring. The device also facilitates easy wiring with loop-through potential and detects shorts or miswiring automatically, ensuring fast and safe setup.

Compact and durable, the relay measures 94mm in length, 22.5mm in width, and 121mm in height, fitting well in diverse industrial automation setups. Maintenance is simplified due to the defined clamping force that negates the need for regular retightening.

Automatic and manual reset methods for flexible circuit control. Easy DIN rail mounting with secure screw terminals. Energy-efficient operation with 2 W power consumption. LED display for supply voltage and switch status monitoring.

Robust IP20 enclosure for industrial use. Wide operating temperature range from -10°C to 55°C. Designed to meet Safety Category 4 standards. Maintenance-free design with defined clamping force. Compact form factor: 94×22.5×121 mm.

Versatile applications including safety gates and E-STOP circuits.

This Pilz safety relay supports enhanced safety automation in industrial, manufacturing, and process control environments. Its advanced monitoring features prevent hazards by detecting faults and cutting power promptly, saving costly repairs and ensuring user protection. Discover more Safety Relays and automation controls in the EnvMart catalog.
