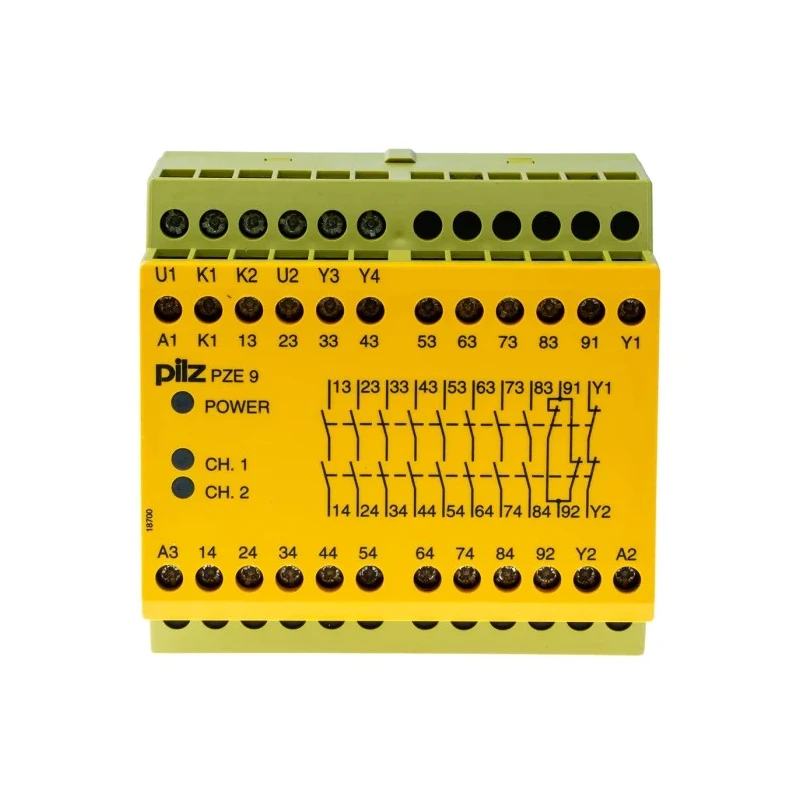

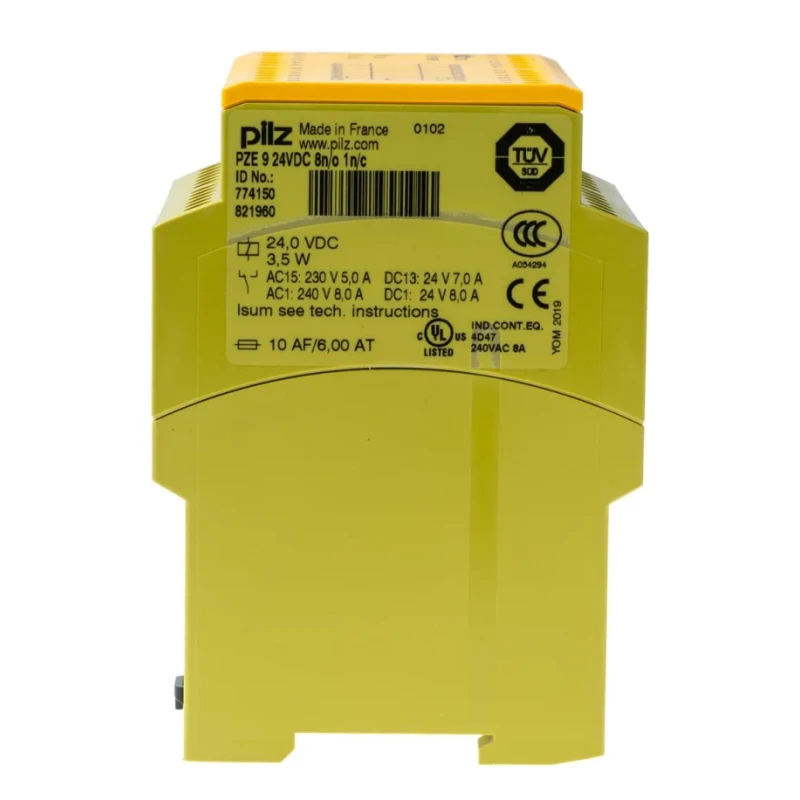

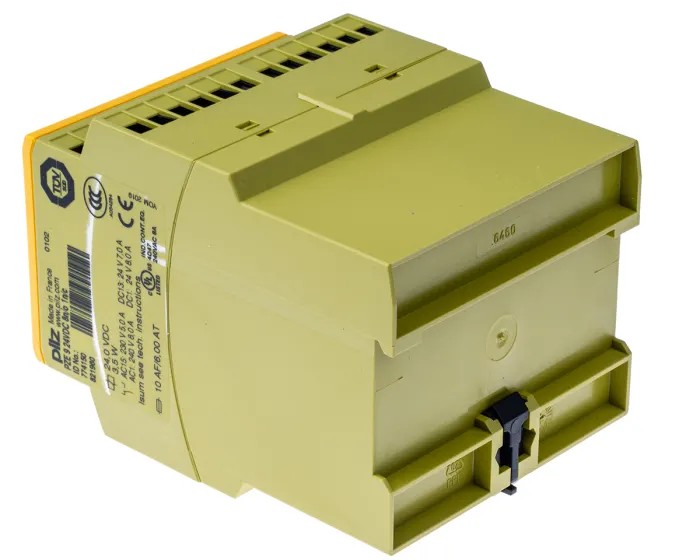

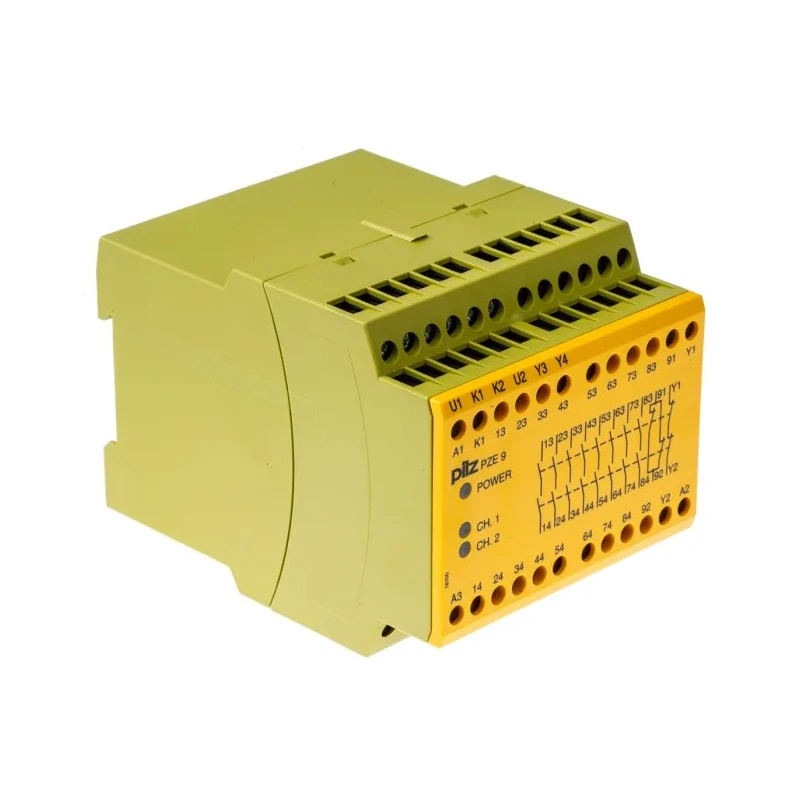

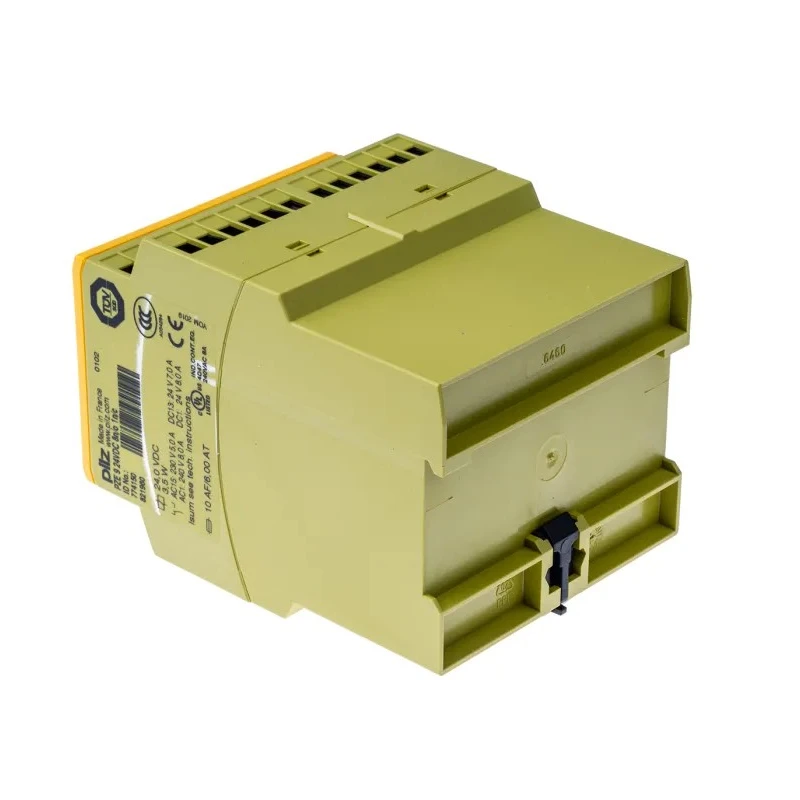

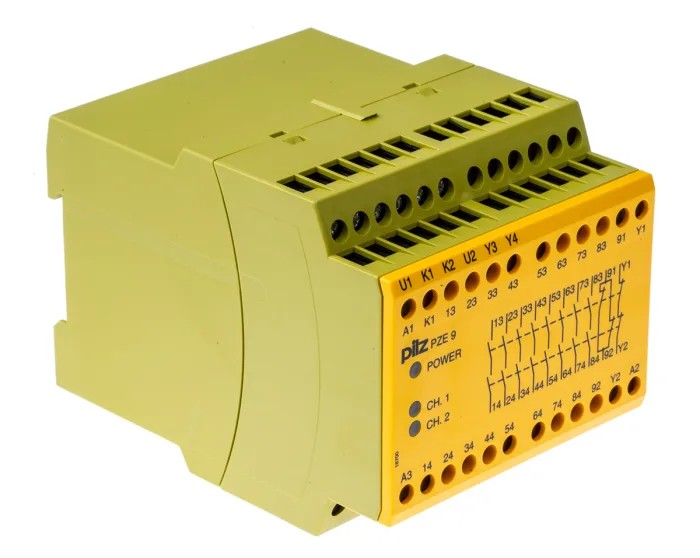

Pilz PZE 9 24V DC Safety Relay with 8 Safety Contacts and 1 Auxiliary Contact 774150
Specifications
| Country of Origin | France |
|---|---|
| Power Consumption | 3.5W |
| Brand | Pilz |
| Height | 121mm |
| Length | 87mm |
| Model | 774150 |
| IP Rating | IP54, IP40, IP20 |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | PZE 9 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 8 NO/1 NC |
| Minimum Operating Temperature | -10°C |
| Safety Category | 4 |
| Terminal type | Screw |
| Reset Method | Automatic |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 24V dc |
| Contact Current | 8A |
| Safety Contacts | 8 |
| Number of Auxiliary Contacts | 1 |
| Pilz PZE X4, 24V dc Safety Relay, 4 Safety ContactsBrand | Pilz |
Key Features
- Equipped with 8 normally open and 1 normally closed safety contacts for versatile applications.
- Operates on 24V DC coil voltage with a power consumption of 3.5W.
- Features DIN Rail mount type and screw terminal connection for easy installation.
- Rated IP54, IP40, and IP20 protection for enhanced durability in various environments.
- Automatic reset method ensures dependable safety cycle operation.
- Supports detection of earth faults and maintains function despite component failures.
- Compliant with multiple standards including EN 60204-1 and EN 60947-5-1 for safety and quality assurance.
- Designed with LED indicators for supply voltage and switching status monitoring.
Product Description
Pilz 774150 Safety Relay PZE 9 24V DC is engineered for enhancing safety control systems by expanding the number of contacts available for safety-related devices like emergency stops and safety gates. This device features 8 normally open and 1 normally closed safety contacts, providing high reliability in safety circuit monitoring.
The relay employs an automatic reset mechanism and is mounted on a DIN Rail, ensuring easy installation in industrial electrical panels. With its screw terminal type connections and universal power supply compatibility, it offers flexibility for various power sources and environments.
This safety relay meets stringent standards such as EN 60068-2-6, EN 954-1, EN 60204-1, and IEC 60947-5-1, assuring compliance with industrial safety and quality requirements. It supports feedback loop monitoring for early hazard detection and can detect earth faults in both input circuitry and feedback loops, de-energizing output relays as necessary to maintain safety.
The robust design includes IP54, IP40, and IP20 ratings, allowing use in demanding conditions while LED indicators provide visible status for channels and supply voltage to facilitate maintenance and troubleshooting.
The compact size (121mm height, 87mm length, 90mm width) enables integration into various control panels without requiring excessive space. It is suitable for guarding systems, emergency stop buttons, pull wire emergency switches, safety light curtains, and safety sensors in industrial and automation environments.
Equipped with 8 safety and 1 auxiliary contact for expanded control. Automatic reset method for reliable cycling. DIN Rail mount and screw terminal for versatile installation. Feedback loop monitoring enhances hazard detection.
LED indicators for supply and switching status visualization. Designed for operation from -10°C to 55°C. Conforms to multiple international safety and electrical standards. Compact form factor supports installation in crowded control panels.
Trust Pilz PZE 9 24V DC Safety Relay for dependable and compliant safety relay expansion in industrial automation, electrical, manufacturing, and safety applications. Explore more Safety Relays and industrial automation products at EnvMart to optimize your plant safety systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power consumption of this safety relay is 3.5W.
It features a contact configuration of 8 normally open (NO) contacts and 1 normally closed (NC) contact.
The dimensions of the Pilz PZE 9 are 121mm in height, 87mm in length, and 90mm in width.
This model operates within a temperature range of -10°C to 55°C.
It is designed for DIN Rail mounting, facilitating easy installation in electrical panels.
The coil voltage for this safety relay is 24V DC.
This model has IP54, IP40, and IP20 ratings, allowing it to be used in various environmental conditions.
The automatic reset method ensures that the relay cycles reliably after a fault condition is cleared, maintaining safety in operations.
The maximum contact current for this safety relay is 8A.
It complies with several standards including EN 60204-1 and IEC 60947-5-1, ensuring safety and quality assurance.
This model uses screw terminals for its connections, providing secure and reliable connectivity.
It is suitable for applications such as guarding systems, emergency stop buttons, safety gates, and safety sensors in industrial environments.
