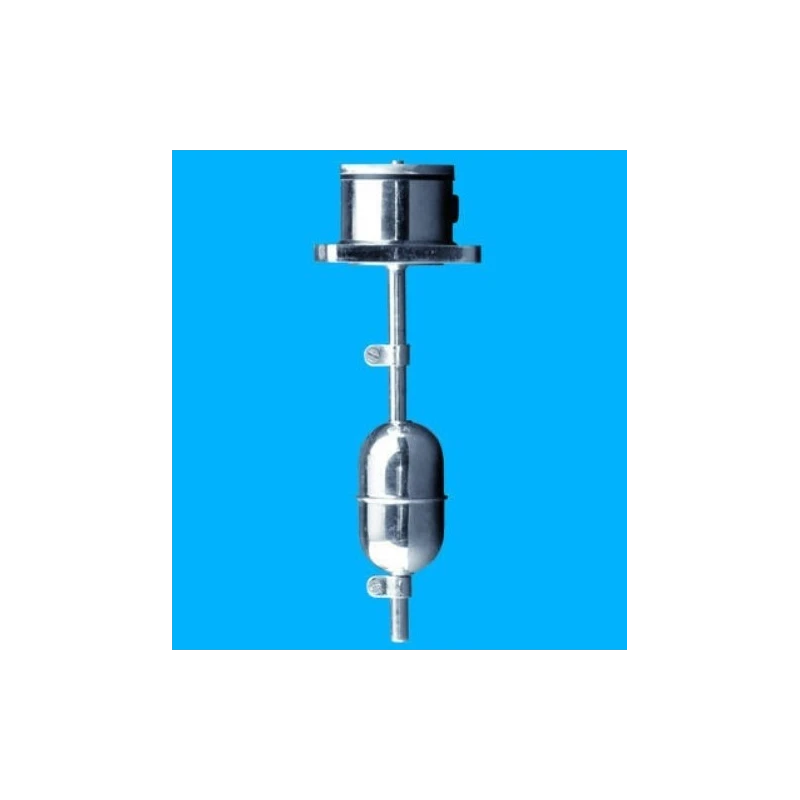

SPST Level Switches VMT-04-F82
Specifications
| Brand | Mahalaxmi Instruments |
|---|---|
| MOC | Float in SS316 L| Flange Pipe in SS304. |
| Model | VMT-04-F82 |
| Enclosure | SS 304 |
| Media Type | Liquid |
| Mounting Options | Top Mount |
| Switch Type | SPST |
| Cable entry | Neoprene Gromet |
| Process connection | 82mm Square flange with 4 nos bolt holes of 10mm dia on 82mm PCD |
| Float | 50mm Dia x 85mm Long SS316L |
| Maximum Working Pressure | 10 kg/cm2 |
| Maximum Working Temperature | 125C (Maximum Higher 175C Optional) |
| Switch Rating | 100 VA |
| Maximum Switching Voltage (V) | 230 VAC |
| Total Stem Length | 200 MM (Maximum upto 3 Meters) |
| Contact Configuration | Low Level - makes/breaks on fall of a level| high Level - makes/breaks on rising of the level. |
| Number of Levels | 1| 2| 3| 4 Up to maximum of 5 |
Key Features
- Bulk Quantities Available
Product Description
VMT-04-F82 Level SwitchesWe are offering VMT-04-F82 Level Switches to our client.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum working pressure for this model is 10 kg/cm².
This level switch is designed for use with liquid media.
The maximum operating temperature for this model is 125°C, with an optional higher limit of 175°C.
It features a Single Pole Single Throw (SPST) switch type.
This model is designed for top mounting.
The process connection consists of an 82mm square flange with four bolt holes of 10mm diameter on an 82mm PCD.
The float measures 50mm in diameter and 85mm in length, made from SS316L.
The maximum switching voltage for this model is 230 VAC.
The contact configuration includes low level makes/breaks on fall of a level and high level makes/breaks on rising of the level.
The float is made of SS316L, while the flange pipe and enclosure are made of SS304.
This model can detect up to a maximum of 5 levels.
