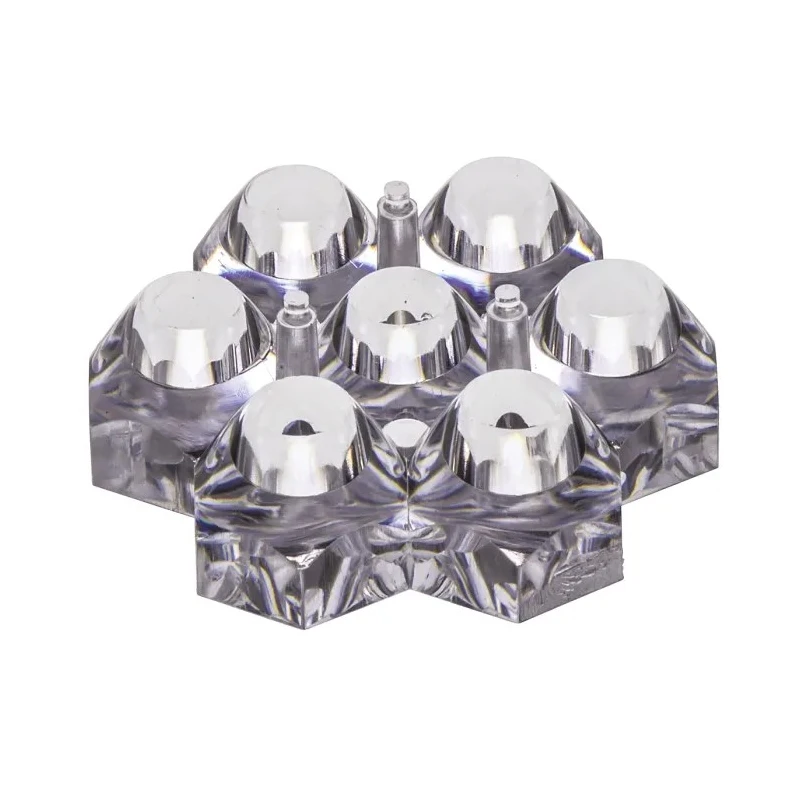

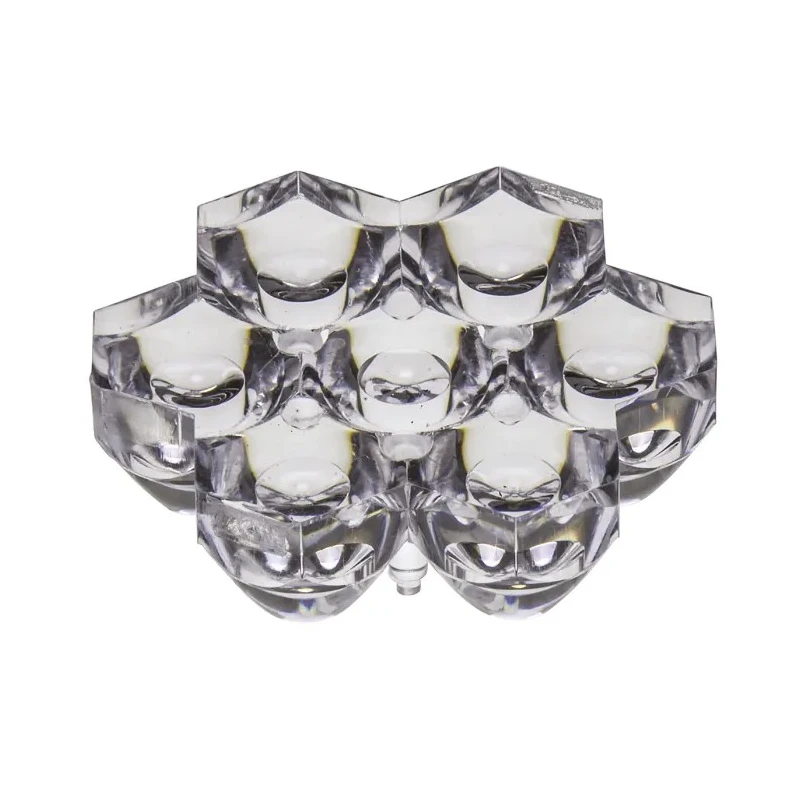

Polymer Optics Modular LED Optics Series 7-Way LED Lens 12 ° Collimator Beam 261

Polymer Optics 261 Modular LED Optics Series 7-Way LED Lens is engineered for use with smaller high power LEDs requiring precise collimation. This optical solution delivers a 12-degree viewing angle collimator beam optimized for Lumileds LUXEON Rebel LED packages, providing focused and efficient light output.

The 7 cell cluster lens design achieves a high light collection efficiency exceeding 85%, enhancing system luminous effectiveness while maintaining thermal stability thanks to its optical grade polycarbonate construction. The lens's compact size, measured at 39.15mm in diameter, 13.85mm in height, and 38.5mm in length, offers flexibility in tight lighting assemblies.

As part of the Modular LED Optics® range, these lenses can be combined across different configurations to achieve a variety of illumination patterns and designs, catering to diverse industrial and commercial lighting needs including architectural lighting, display illumination, and specialized LED lighting components.

Designed as a 7 cell cluster lens for small high power LEDs. High light collection efficiency greater than 85% enables superior illumination. Constructed from optical grade polycarbonate for excellent thermal stability. Modular design allows combination in various ways for versatile lighting applications.

Compatible with Lumileds LUXEON Rebel LEDs for optimized performance. Compact dimensions with 39.15mm diameter and 13.85mm height. Durable optical lens ensures long-lasting system durability. Precision moulding supports consistent optical performance.

This LED lens finds application across electronic components manufacturing, LED lighting projects, optics customization in industrial lighting, and other commercial illumination setups requiring efficient light collimation. The product is manufactured in the United Kingdom and subjected to standard quality assurance procedures.
