Lascar PanelPilotACE TFT Digital Multi-Function Panel Meter for Voltage, Current, Depth 75mm, Operating Temp SGD 70-A-DK+

Free Delivery in India | Lowest Global Shipping Charges

Lascar PanelPilotACE TFT Digital Multi-Function Panel Meter for Voltage, Current, Depth 75mm, Operating Temp SGD 70-A-DK+

Name: Lascar PanelPilotACE TFT Digital Multi-Function Panel Meter for Voltage, Current, Depth 75mm, Operating Temp SGD 70-A-DK+
Brand: Lascar
SKU: 208843
Price: 671.4 USD
Availability: InStock



Category Multi-Function Panel Meter Brand Lascar Condition New

Specifications

Country of Origin	India
Display Type	TFT
Brand	Lascar
Model	SGD 70-A-DK+
Depth	75mm
Series	PanelPilotACE
Maximum Operating Temperature	40°C
Meter Type	Digital
Minimum Operating Temperature	0°C
Properties Measured	Voltage, Current
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007

Key Features

Features four analogue inputs each capable of ±5V DC measurement with external input terminals.
Includes eight digital input/output interfaces with status LEDs and switches for user interaction.
Equipped with four PWM output channels with LED indicators for clear signal visualization.
Supports RS232, RS485, SPI, and I²C communication protocols for versatile connectivity.
Operates reliably within a temperature range of 0°C to 40°C for industrial environments.
Compact design with a depth of 75mm, suitable for panel installations.

Product Description

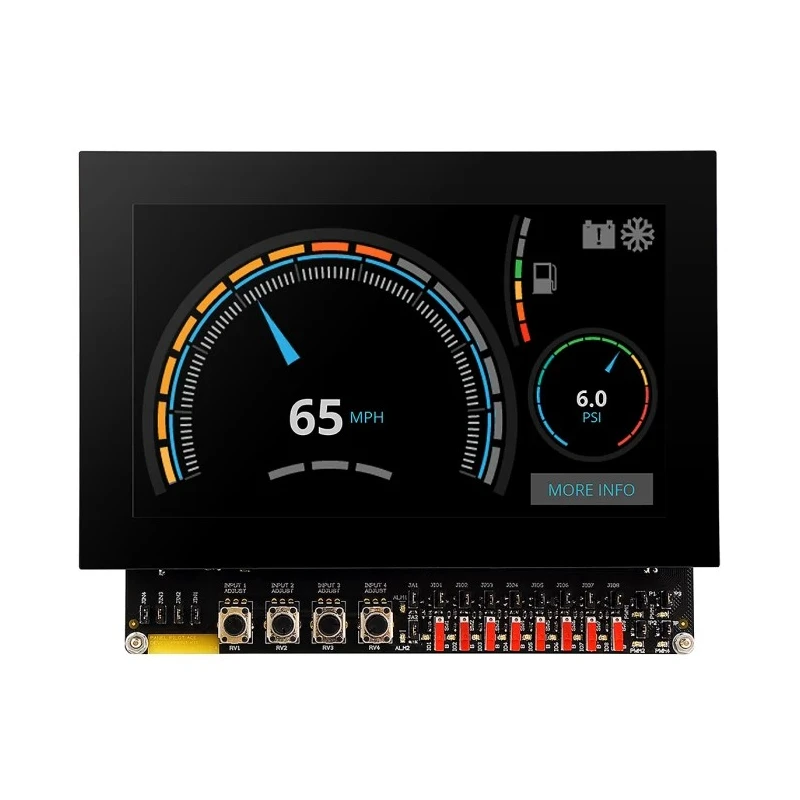

Lascar SGD 70-A-DK+ PanelPilotACE is a TFT digital Multi-Function Panel Meter designed for industrial applications requiring accurate voltage and current measurements. The device offers a user-friendly interface with a high-resolution TFT display, facilitating real-time monitoring in control panels.

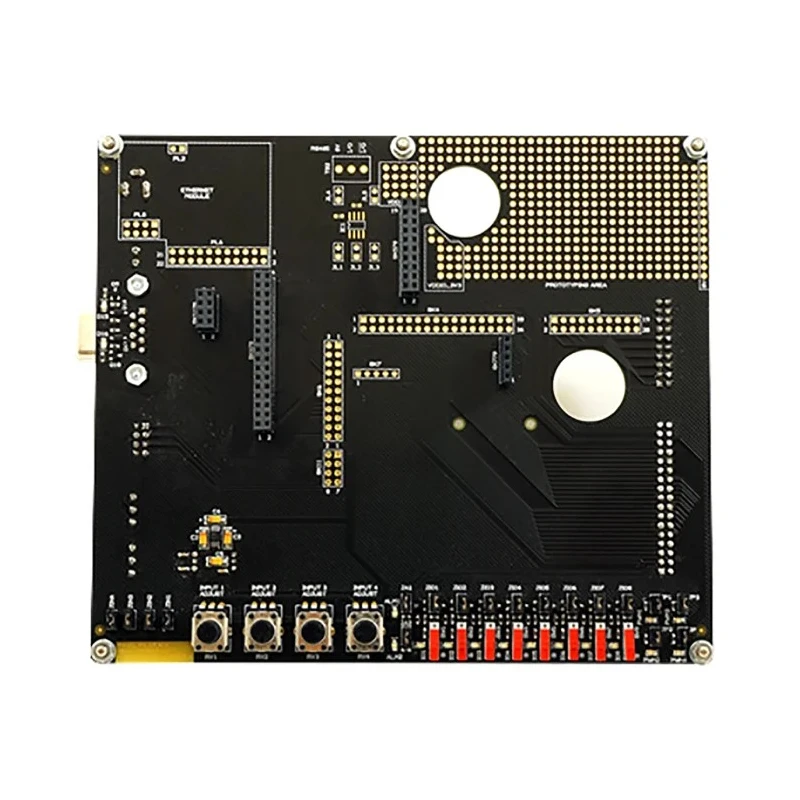

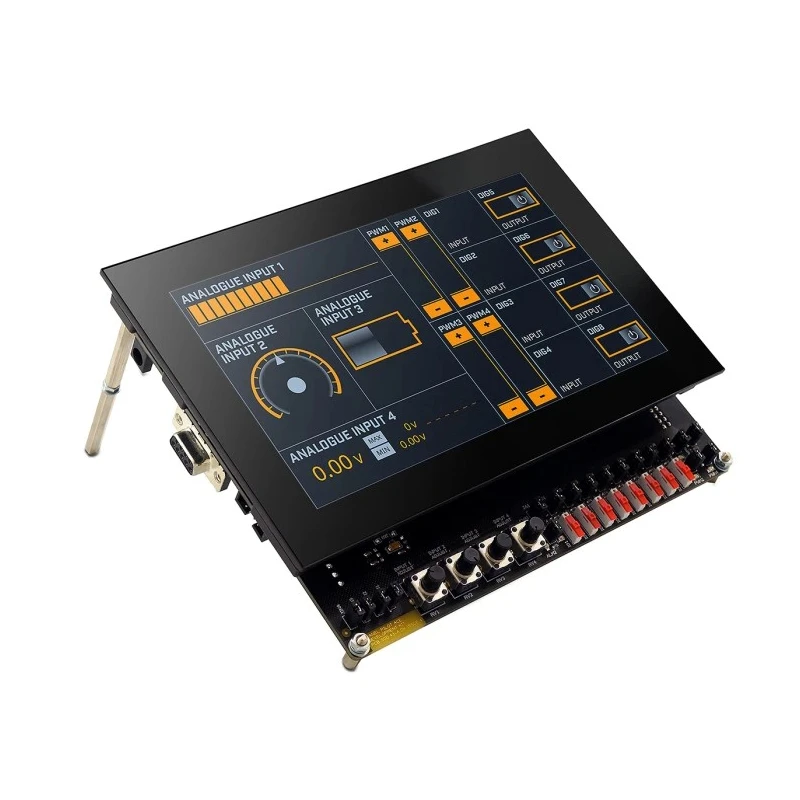

This development kit provides users with a versatile testing board that includes four analogue inputs featuring ±5V DC range and screw terminals for external signals. It also integrates eight digital input/output ports with attached status LEDs and switches for operational control, alongside four PWM output channels with variable brightness LEDs to indicate output intensity.

The SGD 70-A-DK+ supports multiple communication interfaces including RS232, RS485, SPI, and I²C, making it adaptable for various automation systems. Its compact 75mm depth and operating temperature range from 0°C to 40°C ensure easy integration into industrial panels used in manufacturing, process control, and electrical automation settings.

The product complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, providing reliability and electrical safety in demanding environments. Additional features include a prototyping area facilitating customized circuit development and signal testing.

Four analogue input channels for precise voltage measurements. Eight digital input/output ports with visual status indicators. Four PWM outputs with brightness LEDs for feedback. Broad communication protocol support (RS232, RS485, SPI, I²C).

Compact design with 75mm depth suitable for panel mounting. Operating temperature range suitable for industrial use. Certified for electrostatic discharge protection and compliance.

This panel meter is ideal for industrial automation, process monitoring, laboratory instrumentation, and electrical system control. It enables engineers to develop, test, and deploy measurement systems with high accuracy and flexible connectivity within various electrical and automation environments.
