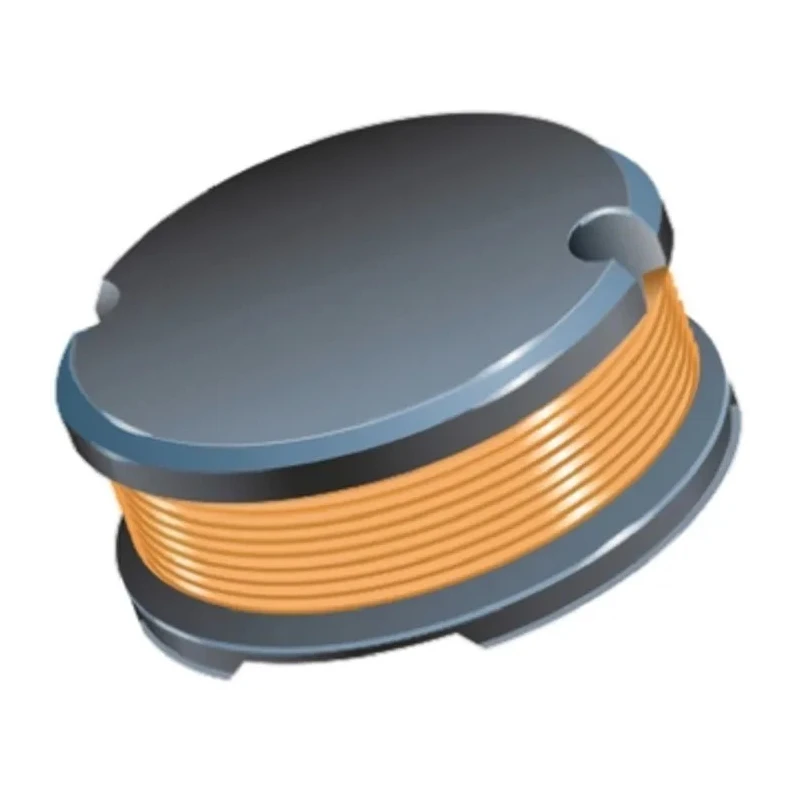

Bourns Wirewound Surface Mount Inductor 68μH ±10% 840mA Ferrite DR Core 0604 Package SDR0604
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.8mm |
| Brand | Bourns |
| Height | 4.8mm |
| Length | 5.8mm |
| Model | SDR0604 |
| Depth | 5.8mm |
| Packaging | Reel |
| Series | SDR0604 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 68μH |
| Standards/Approvals | RoHS |
| Package/Case | 0604 |
| Maximum DC Current | 840mA |
| Maximum DC Resistance | 520mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 10MHz |
| Minimum Quality Factor | 22 |
| Inductor Construction | Wirewound |
Key Features
- The inductor features a 0604 package with compact dimensions of 5.8mm diameter and 4.8mm height.
- Constructed with a ferrite DR core and wirewound design for stable inductance performance.
- Rated for a maximum DC resistance of 520mΩ and maximum operating temperature of 125°C.
- The device is RoHS compliant and shield-free for use in various electronic applications.
- Typical applications include filtering and energy storage in DC/DC converter circuits and power supplies.
- Offers a minimum quality factor (Q) of 22 at resonance frequency, peaking at 10 MHz.
- Packaging is supplied on reels, suitable for automated placement in manufacturing processes.
Product Description
Bourns SDR0604 wirewound surface mount inductor is an essential component for electronic circuits requiring inductance of 68μH with a precise ±10% tolerance. It is constructed using a ferrite DR core combined with wirewound technology to optimize magnetic performance and stability under load.
Measuring 5.8mm in diameter and 4.8mm in height within the 0604 package format, this surface mount device supports a maximum DC current of 840mA and can operate reliably up to 125°C ambient temperature, making it suitable for demanding industrial and commercial electronics applications.
The inductor exhibits a maximum DC resistance of 520mΩ, ensuring efficient current flow with minimal power loss. It is designed without shielding to reduce size and weight, maintaining compatibility with compact PCB designs. The product also complies with RoHS standards, aligning with environmental and safety regulations.
Its high-quality factor (Q) of 22 at the resonant frequency of 10 MHz allows effective filtering and energy storage, especially in power management circuits such as DC/DC converters and power supplies. The device is supplied on reels, facilitating automated assembly lines and enhancing production efficiency.
The inductor features a compact 0604 surface mount package with dimensions optimized for high-density PCBs. Wirewound construction with ferrite DR core provides performance stability and reliability. Maximum DC current rating is 840mA, suitable for moderate power applications.
Maximum operating temperature is 125°C, supporting robust industrial environments. RoHS compliance ensures the product meets environmental safety standards. Ideal for filtering, energy storage, and power management in electronic circuits.
Packaging on reels enables streamlined manufacturing and assembly processes.
This Bourns SDR0604 series inductor is extensively used in electronics manufacturing, including industrial controls, automotive electronics (non-automotive certified), telecommunications, and consumer power supplies, providing reliable inductance with excellent electrical characteristics.
Explore more Surface Mount Inductors and electronic components from Bourns and related brands on EnvMart for your diverse industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 68μH with a tolerance of ±10%.
The inductor features a diameter of 5.8mm and a height of 4.8mm, fitting within the 0604 package format.
It is rated for a maximum DC current of 840mA, suitable for moderate power applications.
The maximum operating temperature is 125°C, allowing it to function in demanding environments.
This model is constructed with a ferrite DR core, which enhances its magnetic performance.
The maximum DC resistance is 520mΩ, ensuring efficient current flow with minimal power loss.
It offers a minimum quality factor (Q) of 22 at a resonant frequency of 10 MHz.
The inductor is supplied on reels, which facilitates automated placement in manufacturing processes.
Typical applications include filtering and energy storage in DC/DC converter circuits and power supplies.
Yes, this model is RoHS compliant, meeting environmental and safety regulations.
The termination style is surface mount, making it suitable for compact PCB designs.
The maximum self-resonant frequency of this unit is 10 MHz, allowing effective performance in high-frequency applications.
