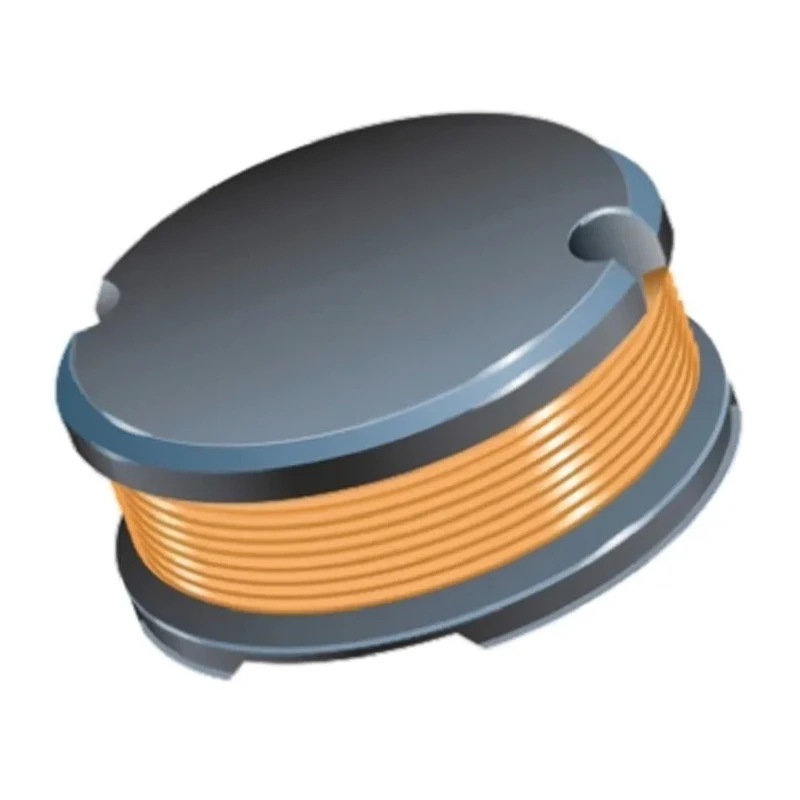

Bourns Wirewound Surface Mount Inductor 5.8mm x 4.8mm x 5.8mm Ferrite DR Core 680 μH ±10% 250 mA IDC 2MHz Q:26 SDR0604
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.8mm |
| Brand | Bourns |
| Height | 4.8mm |
| Length | 5.8mm |
| Model | SDR0604 |
| Depth | 5.8mm |
| Packaging | Reel |
| Series | SDR0604 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 680μH |
| Standards/Approvals | RoHS |
| Package/Case | 0604 |
| Maximum DC Current | 250mA |
| Maximum DC Resistance | 4.65Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2MHz |
| Minimum Quality Factor | 26 |
| Inductor Construction | Wirewound |
Key Features
- Compact 0604 package measuring 5.8mm length, 4.8mm height, and 5.8mm depth.
- Offers inductance value of 680 microhenries with ±10% tolerance.
- Maximum DC current rating of 250 mA suitable for low power applications.
- Ferrite DR core construction provides stability and low losses.
- Maximum DC resistance is 4.65 ohms ensuring efficient operation.
- Operating temperature range from -40°C to 125°C for varied environments.
- Maximum self-resonant frequency of 2 MHz and minimum quality factor of 26.
- Surface mount termination style suitable for automated PCB assembly.
Product Description
Bourns SDR0604 Wirewound Surface Mount Inductor featuring a ferrite DR core and 680 μH inductance with ±10% tolerance. This compact inductor is designed for use in electronic components, particularly in power and passive circuits.
It comes in a 0604 package with precise dimensions of 5.8mm length, 4.8mm height, and 5.8mm depth, making it ideal for high-density PCBs. The inductor supports a maximum DC current of 250 mA, and its maximum DC resistance is 4.65 ohms, which helps maintain efficient current flow with minimal losses.
The device operates reliably in temperature ranges from -40°C to 125°C, suitable for demanding environmental conditions. With a maximum self-resonant frequency of 2 MHz and a minimum quality factor of 26, it offers consistent performance in filtering and energy storage applications.
This wirewound inductor is surface mount terminated, facilitating automated assembly and reducing manual soldering errors. The ferrite DR core construction ensures robust magnetic properties and minimal interference.
Its RoHS compliance guarantees environmentally responsible manufacturing, making it suitable for use in modern electronic manufacturing processes. Typical applications include input/output filtering for DC/DC converters and power supply circuits in electronic devices.
Compact 0604 surface mount package with precise dimensions. 680 μH inductance with ±10% tolerance for predictable performance. Maximum DC current of 250 mA ideal for low power applications. Ferrite DR core providing low losses and high stability.
Wide temperature range of -40°C to 125°C for diverse environments. 2 MHz self-resonant frequency and quality factor of 26 for efficient filtering. Surface mount termination style supports automated PCB assembly. RoHS compliant for environmentally friendly production.
Single-piece packaging on reels for manufacturing efficiency. Suitable for industrial, commercial, and consumer electronics manufacturing. Browse related Bourns inductors and components on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 680 microhenries with a tolerance of ±10%.
The inductor has dimensions of 5.8mm in length, 4.8mm in height, and 5.8mm in depth.
It supports a maximum DC current rating of 250 mA, making it suitable for low power applications.
The maximum self-resonant frequency is 2 MHz, which is important for filtering applications.
It operates reliably within a temperature range of -40°C to 125°C.
The maximum DC resistance is 4.65 ohms, ensuring efficient operation.
This inductor uses a ferrite DR core, which provides stability and low losses.
It features a surface mount termination style, making it suitable for automated PCB assembly.
Yes, this model is RoHS compliant, ensuring environmentally responsible manufacturing.
The minimum quality factor is 26, which contributes to its performance in filtering applications.
It is packaged on reels, which facilitates manufacturing efficiency.
Typical applications include input/output filtering for DC/DC converters and power supply circuits in electronic devices.
