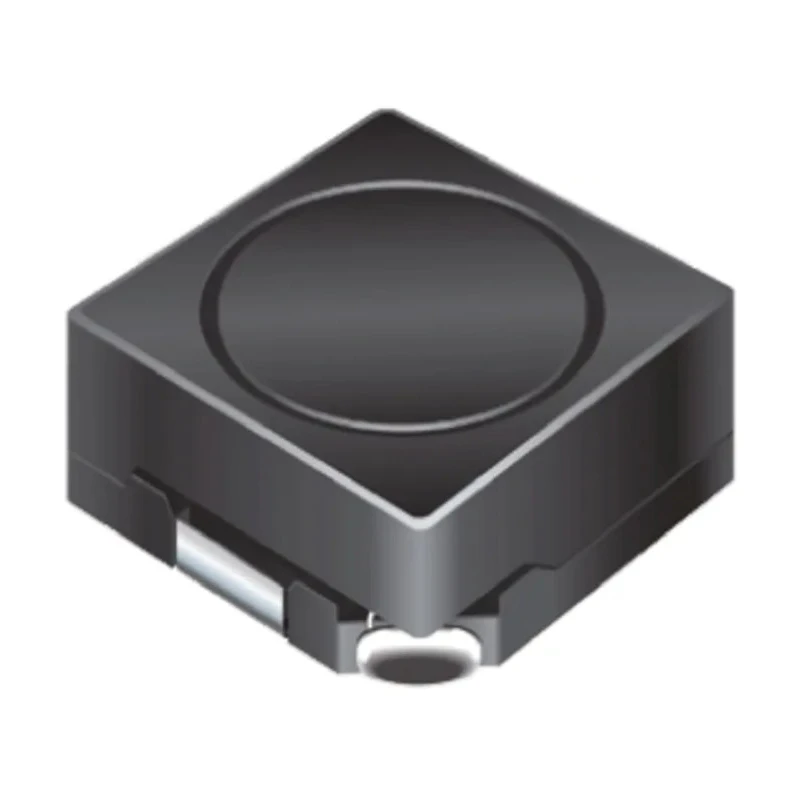

Bourns 0604 Shielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±10% 570 mA Idc Q:23 SRR0604
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 4.8mm |
| Length | 6.5mm |
| Model | SRR0604 |
| Depth | 6.5mm |
| Packaging | Reel |
| Series | SRR0604 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 0604 |
| Maximum DC Current | 570mA |
| Maximum DC Resistance | 650mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 13MHz |
| Minimum Quality Factor | 23 |
| Inductor Construction | Wirewound |
Key Features
- The inductor is constructed with a ferrite core for magnetic shielding.
- It has a package case dimension of 0604 suitable for surface mount technology.
- The device operates reliably within a temperature range of -40°C to 125°C.
- Maximum DC resistance of 650 mΩ ensures efficient conduction.
- Quality factor minimum rating of 23 supports high-performance applications.
- Designed for use in DC/DC converters, power supplies, and other electronic circuits.
- RoHS compliant materials align with environmental and safety standards.
- The inductor is supplied in a reel packaging for ease of automated assembly.
Product Description
Bourns SRR0604 shielded wirewound surface mount inductor with ferrite core, model SRR0604-101KL, provides an inductance of 100 μH with ±10% tolerance and is rated for a maximum DC current of 570 mA. This Surface Mount Inductor has a compact 0604 package size, measuring 6.5 mm in length, 4.8 mm in height, and 6.5 mm in depth, making it suitable for high-density PCB applications.
Constructed with a ferrite core, the device ensures magnetic shielding essential for minimizing electromagnetic interference. It offers a low maximum DC resistance of 650 mΩ and operates reliably from -40°C up to 125°C, supporting demanding industrial and electronic environments. Its minimum quality factor of 23 and a maximum self-resonant frequency of 13 MHz further emphasize its suitability in efficient power conversion circuits.
This inductor series is magnetically shielded and moulded, with surface mount termination style facilitating easy mounting. The reel packaging enables automated manufacturing and reduces assembly time in electronics production lines.
Common applications include input/output filtering in DC/DC converters, power supply modules, telecommunications, and other electronic devices requiring stable inductance under high current loads.
The inductor is magnetically shielded with a ferrite core to reduce EMI. Its compact 0604 case size fits surface mount technology requirements. Supports up to 570 mA maximum DC current with low resistance for efficient operation.
Wide operating temperature range of -40°C to 125°C ensures durability. RoHS compliant, supporting environmentally safe and legal electronic manufacturing. High quality factor of minimum 23 guarantees effective inductive performance at intended frequencies.
Packaged on a reel to optimize automated PCB assembly and reliability. Explore more inductors and electronic components on EnvMart, where quality and technical precision meet industry needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 100 μH with a tolerance of ±10%.
The maximum DC current rating for this inductor is 570 mA.
The inductor has a length of 6.5 mm, a height of 4.8 mm, and a depth of 6.5 mm.
The maximum DC resistance is 650 mΩ, ensuring efficient conduction.
It operates reliably within a temperature range of -40°C to 125°C.
This inductor has a minimum quality factor of 23, which supports high-performance applications.
The maximum self-resonant frequency is 13 MHz.
The inductor is constructed with a ferrite core for magnetic shielding.
This unit features a surface mount termination style, facilitating easy mounting.
It is supplied in reel packaging, which optimizes automated PCB assembly.
The inductor is made from RoHS compliant materials, aligning with environmental and safety standards.
Common applications include input/output filtering in DC/DC converters and power supply modules.
