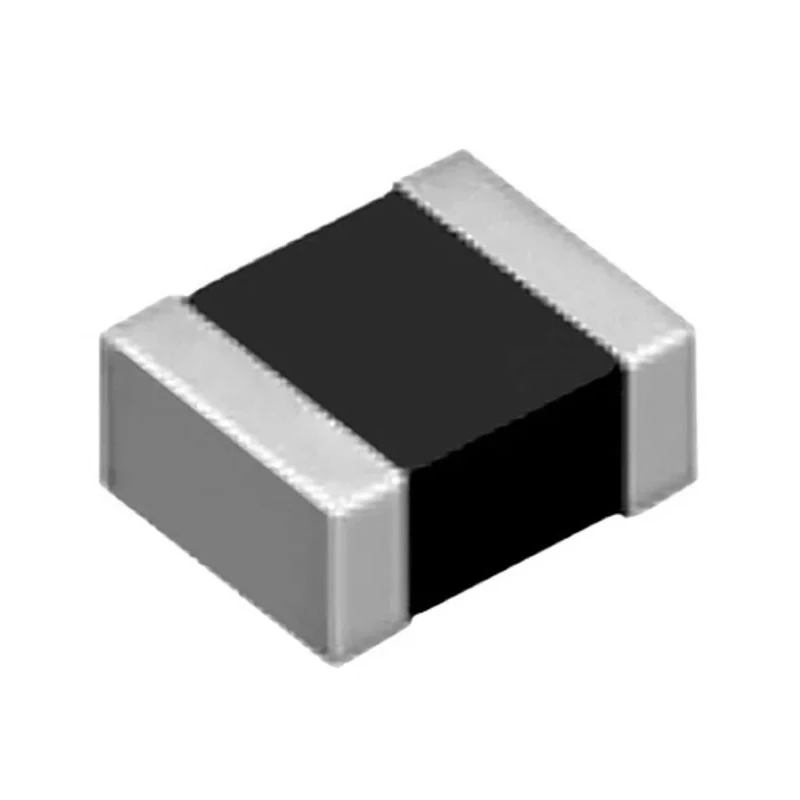

Toko 2016 Shielded Wirewound Surface Mount Inductor with Powdered Iron Core 2.2 μH ±20% 2.2 A DFE201610P

Free Delivery in India | Lowest Global Shipping Charges

Toko 2016 Shielded Wirewound Surface Mount Inductor with Powdered Iron Core 2.2 μH ±20% 2.2 A DFE201610P

Name: Toko 2016 Shielded Wirewound Surface Mount Inductor with Powdered Iron Core 2.2 μH ±20% 2.2 A DFE201610P
Brand: Toko
SKU: 138561
Price: 0.26 USD
Availability: InStock



Category Surface Mount Inductors Brand Toko Condition New

Specifications

Country of Origin	Honduras
Brand	Toko
Height	1mm
Length	2mm
Model	DFE201610P
Depth	1.6mm
Packaging	Embossed Tape
Series	DFE201610P
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Powdered Iron
Inductance	2.2μH
Standards/Approvals	RoHS
Package/Case	2016
Maximum DC Current	2.2A
Pin Count	2
Maximum DC Resistance	168mΩ
Inductance Tolerance	±20 %
Termination Style	Solder
Inductor Construction	Wirewound
These SMD inductors are a miniature size	2016 footprint (2.0 mmx1.6 mm) and have a low profile (1.2 mm max. height)

Key Features

The inductor features a powdered iron core for enhanced magnetic performance.
It has a 2016 package size with a length of 2 mm, depth of 1.6 mm, and height of 1 mm.
Designed with solder termination style suitable for surface mounting.
Provides an inductance tolerance of ±20% and maximum DC resistance of 168 mΩ.
Operates reliably in temperature range from -40°C to 125°C.
The component is RoHS compliant and molded for mechanical stability.
Wirewound construction ensures strong current handling and durability.
Shielding is incorporated to reduce electromagnetic interference.

Product Description

Toko DFE201610P shielded wirewound surface mount inductor with a powdered iron core offers stable inductance of 2.2 μH ±20% and supports a maximum DC current of 2.2 A. This 2016 size SMD inductor has compact dimensions of 2 mm length, 1.6 mm depth, and 1 mm height, making it suitable for miniature electronic circuits.

Constructed with wirewound methodology and a molded design, it provides excellent mechanical strength and low DC resistance of 168 mΩ, ensuring efficient power handling and minimal losses. The solder termination style allows for reliable surface mounting on PCB assemblies.

Operating within the temperature range of -40°C to 125°C, the inductor maintains consistent performance in harsh industrial and electronic environments. The device is shielded to reduce electromagnetic interference, improving signal integrity in sensitive applications.

Manufactured in Honduras, this component complies with RoHS standards, confirming its environmentally friendly production and safety. Typical uses include power supply circuits, filtering, energy storage, and electronic power management in industrial, automotive, and commercial electronics.

The inductor features a powdered iron core for enhanced magnetic performance. It has a 2016 package size with a length of 2 mm, depth of 1.6 mm, and height of 1 mm. Designed with solder termination style suitable for surface mounting.

Provides an inductance tolerance of ±20% and maximum DC resistance of 168 mΩ. Operates reliably in temperature range from -40°C to 125°C. The component is RoHS compliant and molded for mechanical stability. Wirewound construction ensures strong current handling and durability.

Shielding is incorporated to reduce electromagnetic interference. Ideal for use in power electronics, industrial machinery, and electronic assemblies. Manufactured in Honduras with high quality standards. Explore more Surface Mount Inductors and passive electronic components at EnvMart for your industrial and commercial electronic design needs.
