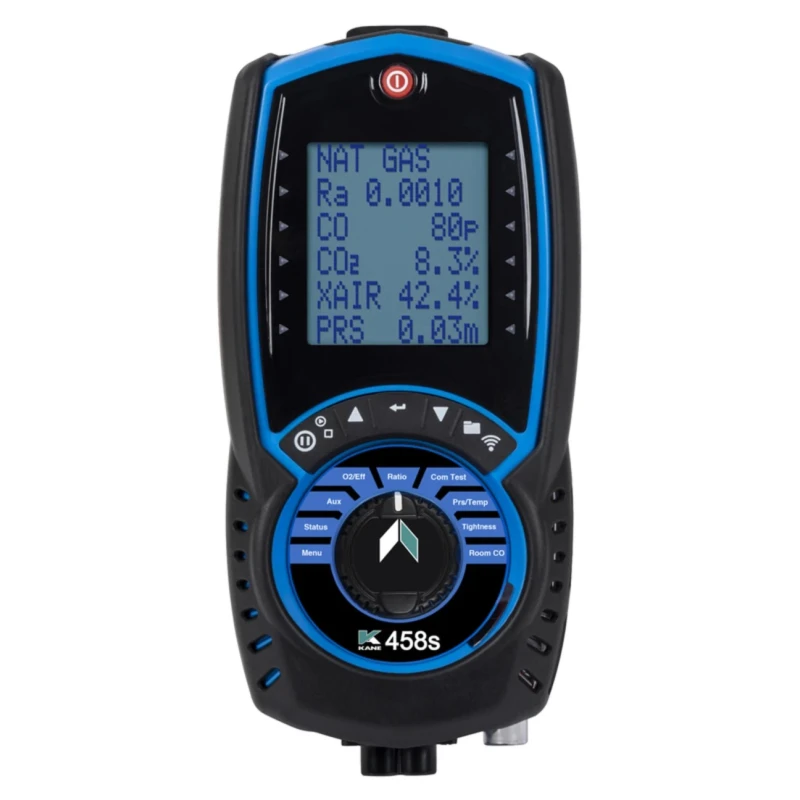

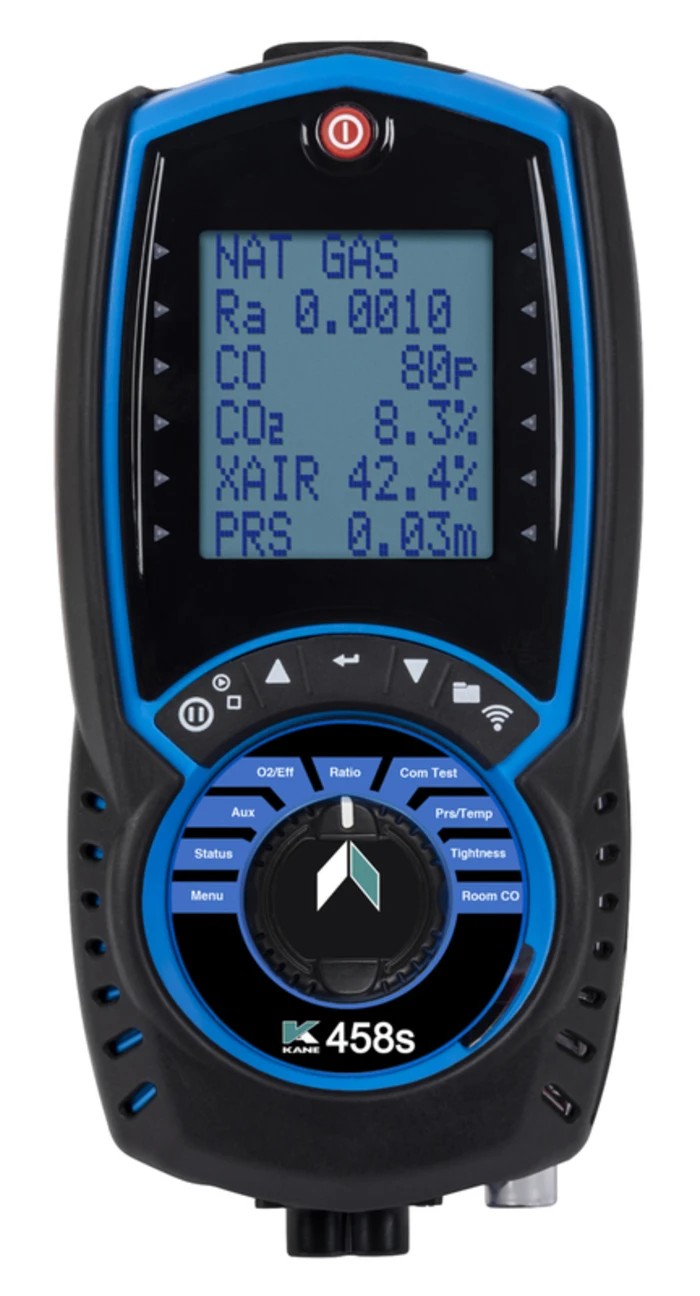

Kane Flue Gas Analyser with Wireless Module, ±0.3 % CO2 Accuracy, ±5 % CO Accuracy, 400 mbar Max Gas Pressure KANE458s
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Kane |
| Battery Life | 8h |
| Battery type | Nickel-Metal Hydride |
| Height | 45mm |
| Length | 216mm |
| Model | KANE458s |
| Maximum Operating Temperature | 45°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB charger |
| Carbon Monoxide Resolution | 1ppm |
| Gases Detected | Carbon Dioxide, Oxygen, Carbon Monoxide |
| Standards/Approvals | EN/IEC |
| Carbon Dioxide Accuracy | ±0.3 % |
| Carbon Monoxide Accuracy | ±5 % |
| Maximum Gas Pressure | 400mbar |
| Minimum Gas Pressure | 80mbar |
| Oxygen Level Resolution | 0.1% |
| Flue Temperature Resolution | 0.1°C |
| Maximum Flue Temperature | 600°C |
| Oxygen Level Accuracy | ±0.3 % |
| Minimum Oxygen Level | 0% |
| Maximum Carbon Monoxide Level | 2000ppm |
| Maximum Carbon Dioxide Level | 20% |
| Minimum Carbon Monoxide Level | 0ppm |
| Minimum Carbon Dioxide Level | 0% |
| Maximum Oxygen Level | 21% |
| Fuel Types | Natural Gas, LPG, Wood, pellets, Butane, Light oil, Propane |
| Calculates | O2. CO/CO2 ratio. Excess air. Combustion efficiency |
Key Features
- Features wireless module for enhanced connectivity and data transfer.
- Measures CO2 with ±0.3% accuracy and CO with ±5% accuracy.
- Operates with maximum gas pressure of 400 mbar and flue temperature up to 600°C.
- Incorporates rechargeable Nickel-Metal Hydride battery supporting 8 hours of operation.
- Includes purge pump protection to prevent sensor damage and is hydrogen ready for up to 20% blend.
- Equipped with rotary dial and 6 line display for user-friendly operation.
- Suitable for testing domestic gas, oil, biomass, and commercial appliances.
- Calculates combustion parameters including O2, CO/CO2 ratio, excess air, and efficiency.
Product Description
Kane KANE458s Flue Gas Analyser is a highly precise instrument designed for measuring carbon dioxide, oxygen, and carbon monoxide gases with wide application in domestic and commercial settings. It features advanced gas sensors providing an accuracy of ±0.3% for CO2 and ±5% for CO, ensuring reliable combustion analysis.
The analyser supports gas pressures up to 400 mbar and can withstand flue temperatures up to 600°C. Its Nickel-Metal Hydride rechargeable battery offers an 8-hour operational life, enhancing portability and convenience on-site. The device includes a protective purge pump to prevent accidental sensor damage and is primed for hydrogen blends up to 20%, catering to evolving fuel types.
With a user-friendly rotary dial and clear 6-line display, the unit facilitates quick and efficient testing of domestic gas, oil, biomass, and certain commercial appliances. Key combustion parameters such as oxygen levels, CO/CO2 ratio, excess air, and combustion efficiency are automatically calculated, supporting thorough safety and performance assessments.
The KANE458s comes complete with an analyser probe, small carry bag, two sets of five filters, pressure connectors, USB charger, quick reference guide, and calibration certificate, making it a comprehensive solution for environmental test and measurement applications.
Wireless module enables seamless data integration and remote monitoring. Direct CO, CO2 & CO sensor over-range protection ensures sensor longevity. High accuracy differential pressure meter at ±80 mbar enhances measurement precision.
Hydrogen-ready capabilities accommodate fuel blends up to 20%. TUV SUD independently tested to EN50379 standard - usable for BS7967 and TB 413 compliance. Ideal for installation, service, safety checks, and combustion efficiency evaluations.
This flue gas analyser is suitable for use in industrial, environmental, and HVAC applications where accurate gas detection is critical. It represents a reliable tool for professionals conducting combustion performance and safety assessments.
Explore more in the Industrial Machines & Instruments category for cutting-edge measuring equipment.
Explore more products in our Gas Analyzer category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can measure carbon dioxide (CO2), oxygen (O2), and carbon monoxide (CO).
The accuracy for CO2 measurement is ±0.3%.
It can operate with a maximum gas pressure of 400 mbar.
The maximum flue temperature it can withstand is 600°C.
The rechargeable Nickel-Metal Hydride battery supports up to 8 hours of operation.
The resolution for carbon monoxide is 1 ppm.
It uses a Nickel-Metal Hydride rechargeable battery.
The minimum operating temperature is 0°C, and the maximum is 45°C.
It calculates oxygen levels, CO/CO2 ratio, excess air, and combustion efficiency.
It is suitable for natural gas, LPG, wood, pellets, butane, light oil, and propane.
It is tested to EN/IEC standards.
Yes, it includes purge pump protection to prevent sensor damage and is hydrogen ready for up to 20% blend.
