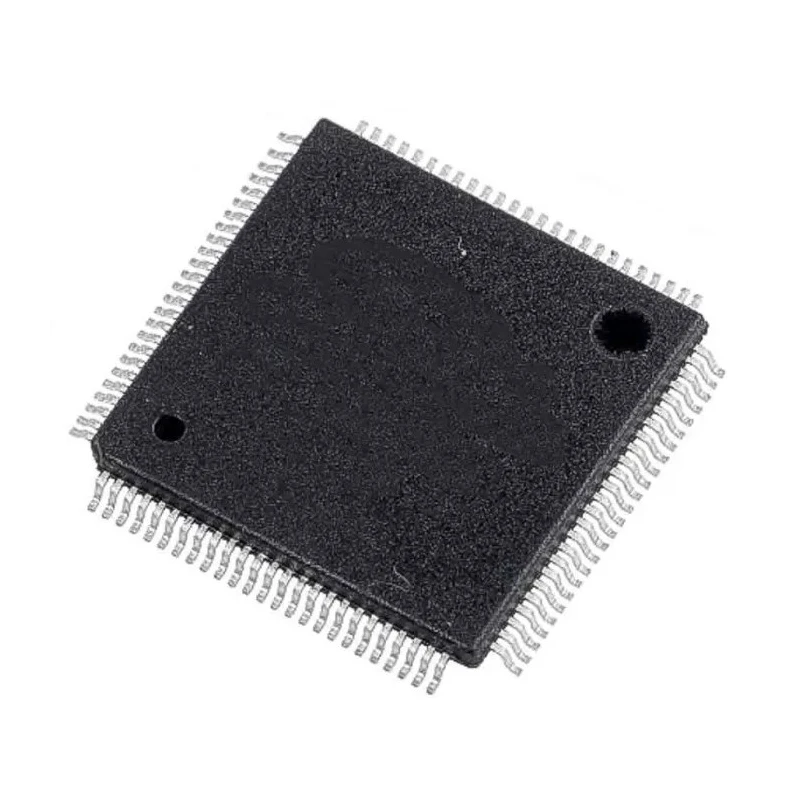

STMicroelectronics 32 bit ARM Cortex M4 Microcontroller STM32F401VET6 84 MHz 512kB FLASH 100-Pin LQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 14.2mm |
| Model | STM32F401VET6 |
| Width | 14.2mm |
| Mount Type | Surface |
| Series | STM32F4 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 96kB |
| Standards/Approvals | FBI |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 465mW |
| Minimum Supply Voltage | 1.7V |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 512kB |
| Maximum Clock Frequency | 84MHz |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Features a 32-bit ARM Cortex M4 core with single-precision Floating Point Unit (FPU).
- Operates at a maximum clock frequency of 84 MHz for efficient processing.
- Includes 512kB of embedded Flash memory and 96kB of SRAM.
- Equipped with 16 channels of 12-bit ADC for high-resolution analog to digital conversion.
- Offers multiple timers including two general-purpose 16-bit timers and two 32-bit timers.
- Supports a maximum supply voltage of 3.6V and minimum of 1.7V.
- Operates reliably in temperatures from -40°C to 85°C.
- Designed in a 100-pin Low-Profile Quad Flat Package (LQFP) measuring 14.2mm x 14.2mm with 1.45mm height.
Product Description
STMicroelectronics STM32F401VET6 Microcontroller is a high-performance 32-bit ARM Cortex M4 based device designed for advanced embedded applications. It operates at up to 84 MHz and integrates 512 kB of Flash memory along with 96 kB of SRAM to handle complex programs and data storage efficiently.
The Cortex M4 core features a single-precision Floating Point Unit (FPU) and a full set of DSP instructions for efficient signal processing tasks. It also includes a memory protection unit (MPU) to enhance application security.
This microcontroller supports an extensive range of peripherals and interfaces through two APB buses, two AHB buses, and a 32-bit multi-AHB bus matrix for versatile connectivity.
Key peripherals include a 16-channel 12-bit ADC for precise analog signal acquisition, multiple general-purpose timers (two 16-bit and two 32-bit) suitable for PWM and timing applications, and standard communication interfaces optimized for embedded systems.
The device is rated for operation between -40°C to 85°C, suitable for industrial environments, and supports supply voltages between 1.7V and 3.6V.
Packaged in a 100-pin Low-Profile Quad Flat Package (LQFP) with dimensions 14.2mm x 14.2mm by 1.45mm height, it offers a compact footprint for integration in space-constrained designs.
Features a 32-bit ARM Cortex M4 core with single-precision FPU. 84 MHz maximum clock frequency for high-speed processing. 512 kB Flash memory and 96 kB SRAM for program and data storage. 16 channels of 12-bit ADC for accurate analog inputs.
Multiple timers including 16-bit and 32-bit options for versatile applications. Wide operating temperature range from -40°C to 85°C. Supports supply voltages from 1.7V to 3.6V. Compact 100-pin LQFP package measuring 14.2mm by 14.2mm.
This Microcontroller is ideal for embedded industrial, consumer electronics, medical devices, and automotive control systems. It is designed to deliver robust performance while supporting advanced signal processing and security features.
Explore the STM32F4 series and enhance your embedded system designs with STMicroelectronics products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F401VET6 operates at a maximum clock frequency of 84 MHz.
It includes 512 kB of embedded Flash memory for program storage.
This microcontroller operates reliably within a temperature range of -40°C to 85°C.
It is packaged in a 100-pin Low-Profile Quad Flat Package (LQFP).
The microcontroller features a 16-channel 12-bit ADC for high-resolution analog to digital conversion.
The dimensions are 14.2mm x 14.2mm with a height of 1.45mm.
This model includes 96 kB of SRAM.
It supports a supply voltage range from 1.7V to 3.6V.
It includes two general-purpose 16-bit timers and two 32-bit timers.
The microcontroller is based on a 32-bit ARM Cortex M4 core with a single-precision Floating Point Unit (FPU).
It has been approved under the FBI standards.
The maximum power dissipation is rated at 465 mW.
