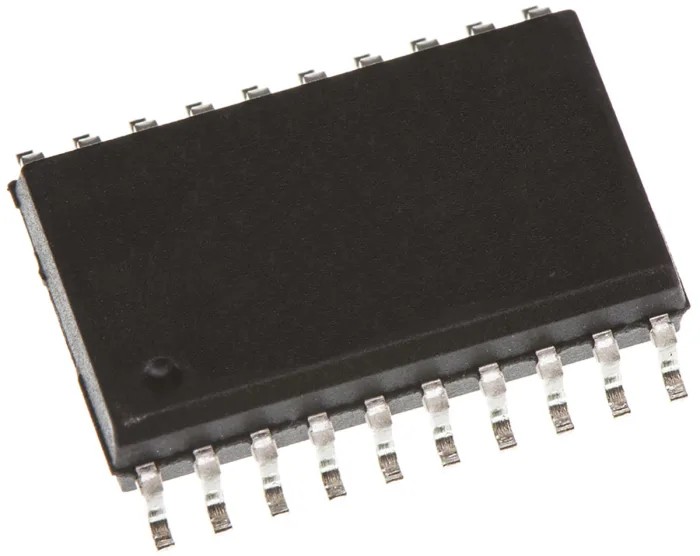

Microchip 16-Bit PIC24FV Microcontroller 32 MHz 32kB FLASH 20-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 12.8mm |
| Model | PIC24FV |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC24FV |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 3 |
| Maximum Expanded Memory Size | 64MB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 12 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with a maximum clock frequency of 32 MHz providing efficient processing speed.
- Features 32kB of FLASH program memory and 2kB of RAM for robust application support.
- Utilizes a 16-bit data bus width with PIC device core architecture.
- Includes 12 analog-to-digital converters of 12-bit resolution and 3 analog comparators.
- Functions within operating temperature range from -40°C to 85°C for reliability.
- Supports a maximum supply voltage of 5.5 V with minimum voltage at 2 V.
- Comes in a surface mount 20-pin SOIC package ensuring compact design integration.
- Equipped with 5 timers and a RISC instruction set architecture for advanced control.
Product Description
Microchip PIC24FV32KA301-I/SO is a high-performance 16-bit PIC microcontroller designed for embedded system applications requiring efficient processing and reliable operation. Featuring a 32 MHz maximum clock frequency and 32kB program memory of FLASH type, it supports complex and high-speed application execution.
This microcontroller operates with a 16-bit data bus and contains a PIC device core optimized for industrial-grade embedded applications. It includes 12 channels of 12-bit analog-to-digital converters and 3 analog comparators, enabling precise analog signal processing.
The 20-pin SOIC surface mount package with dimensions of 12.8 mm length, 7.5 mm width, and 2.35 mm height allows for compact PCB mounting. The device supports operation within the temperature range of -40°C to 85°C and accommodates a supply voltage ranging between 2 V and 5.5 V, ensuring wide environmental compatibility.
It features 5 programmable timers and employs a RISC instruction set for fast and efficient program execution. The microcontroller complies with RoHS standards, certifying its environmental compliance and reliability.
Operates at a reliable 32 MHz clock frequency allowing fast processing. Equipped with 32kB Flash program memory and 2kB RAM capacity. Utilizes a 16-bit data bus width and PIC core architecture for efficient operations. Includes 12 ADC channels of 12-bit resolution and 3 analog comparators for precise control.
Wide operating temperature range of -40°C to 85°C for industrial use. Surface mount 20-pin SOIC package for compact application design. Supports supply voltages from 2 V to 5.5 V for flexible power options. Features 5 timers and RISC architecture for advanced embedded programming.
Compliant with RoHS directives, ensuring environmental safety.
This Microchip PIC24F series microcontroller is suited for industrial, commercial, and laboratory embedded applications, offering balanced performance and energy efficiency. It supports usage in manufacturing control systems, automotive electronics (non-automotive standard compliant), communication devices, and other advanced electronics projects. Microchip's development ecosystem and DesignSpark software compatibility assist in design and collaboration for engineers.
Explore a wide range of Microcontrollers and related electronics components at EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz, allowing for efficient processing speed.
It features a program memory size of 32kB FLASH, providing ample space for application development.
This model includes 12 channels of 12-bit analog-to-digital converters for precise analog signal processing.
The operating temperature range for this microcontroller is from -40°C to 85°C, ensuring reliability in various environments.
The dimensions of the 20-pin SOIC package are 12.8 mm in length, 7.5 mm in width, and 2.35 mm in height.
It supports a supply voltage range from 2 V to 5.5 V, providing flexibility for different power requirements.
This microcontroller is equipped with 5 programmable timers for advanced control in applications.
The data bus width of this model is 16 bits, which is standard for its architecture.
It employs a RISC instruction set architecture, which allows for efficient program execution.
Yes, it complies with RoHS standards, ensuring environmental safety and compliance.
The RAM size of this microcontroller is 2kB, which supports robust application functionality.
This microcontroller is suited for industrial, commercial, and laboratory embedded applications, including manufacturing control systems and automotive electronics.
