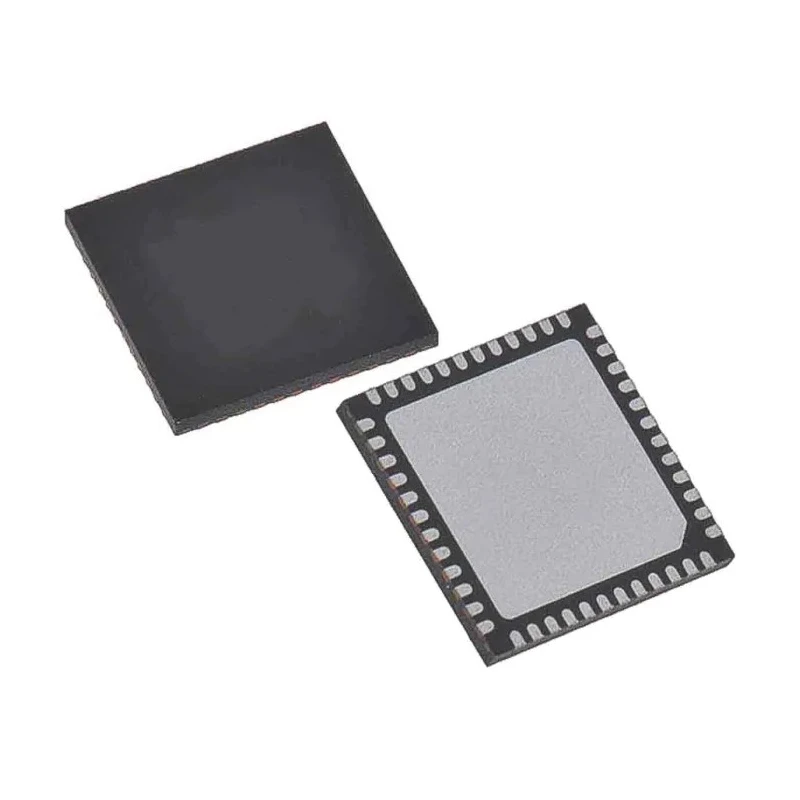

STMicroelectronics 32 bit ARM Cortex M0 Microcontroller STM32F072C8U6 48 MHz 64kB FLASH 48-Pin UFQFPN

STMicroelectronics STM32F072C8U6 is a 32 bit ARM Cortex M0 microcontroller designed for embedded applications requiring efficient processing and low power consumption.

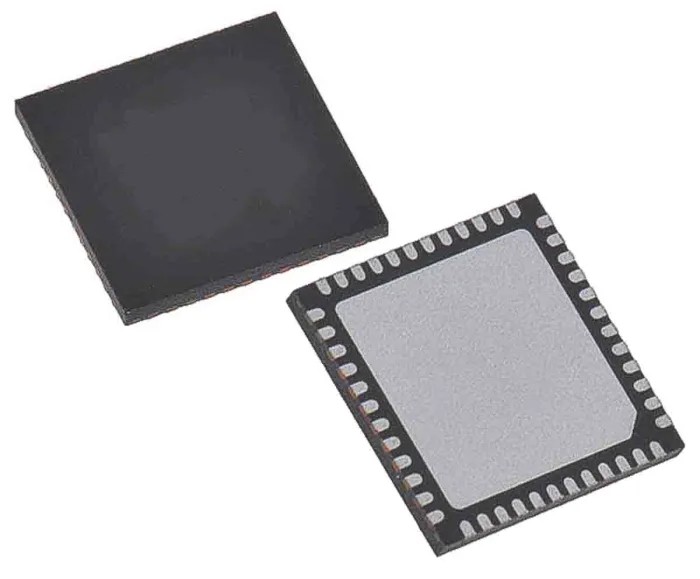

Operating at a maximum clock frequency of 48 MHz, it integrates 64kB of FLASH program memory and 16kB of RAM. The device is housed in a 48-pin UFQFPN package with dimensions 7.1mm by 7.1mm and a height of 550μm, suitable for surface mounting.

This microcontroller features multiple built-in peripherals including 13 12-bit analog-to-digital converters (ADCs), a 12-bit digital-to-analog converter (DAC), 2 analogue comparators, four 16-bit timers, one 32-bit timer, and communication interfaces such as two I2Cs, two SPI/I2S, one HDMI CEC, four USARTs, USB Full-speed device, and CAN interface.

The device supports a supply voltage range of 2.0 to 3.6 V and operates reliably within temperatures from -40°C to 85°C. It dissipates a maximum power of 625 mW which allows for optimized power management in embedded systems.

This microcontroller is ideal for diverse industrial and commercial applications including handheld equipment, user interfaces, audio/video receivers, PC peripherals, GPS platforms, industrial automation, and HVAC systems.

Features an ARM Cortex M0 RISC core with 32-bit bus width. 64kB FLASH and 16kB RAM for program and data memory. Supports extensive peripheral set including ADCs, DAC, timers, and communication protocols. Operates over a wide temperature range for industrial use.

Compact 48-pin UFQFPN surface mount package enhances design flexibility. Efficient power consumption between 2.0 and 3.6 V supply voltages. High reliability with maximum power dissipation of 625 mW.

The STM32F072C8U6 microcontroller is a robust choice for engineers seeking high performance and integration in a compact footprint. Explore related Microcontrollers and industrial electronics in the EnvMart catalog.
