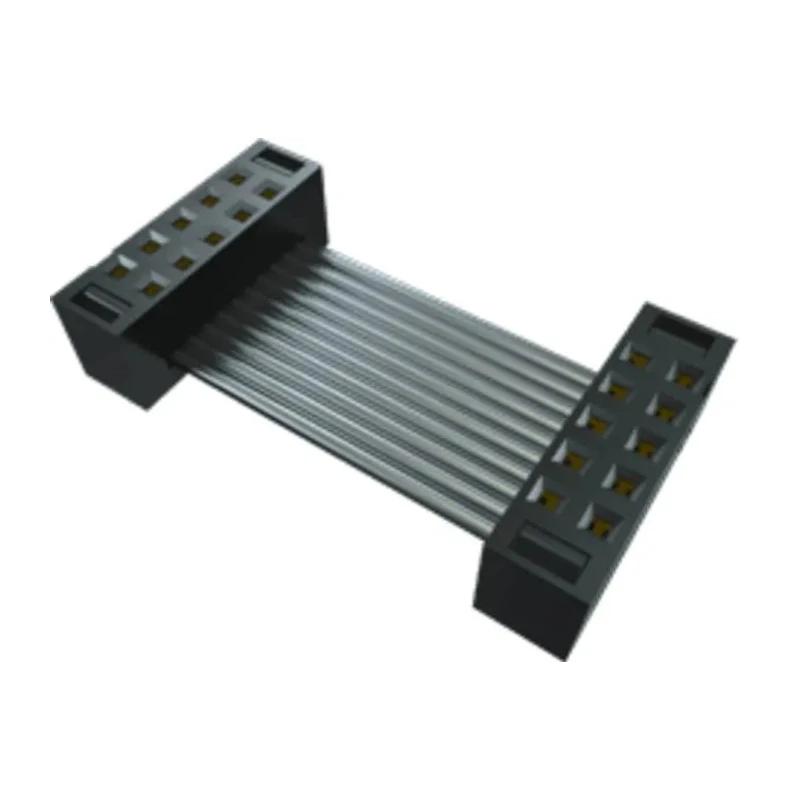

Samtec Flat Ribbon IDC Socket Cable Assembly, Tiger Eye IDC Connector, Glass Filled Polyester Jacket TCSD-05-S-06.00-01-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | TCSD-05-S-06.00-01-N |
| Cable Length | 3.175mm |
| Series | TCSD |
| Cable Type | Flat Ribbon |
| Jacket Material | Glass Filled Polyester |
| Standards/Approvals | RoHS Compliant |
| Connector Type A | Tiger Eye IDC |
| Connector Gender A | Female |
| Jacket Colour | Black |
| Contact Gender A | Female |
Key Features
- Constructed with black glass filled polyester jacket for robust insulation.
- Connector Type A and B are Tiger Eye IDC with female contact and connector gender.
- Cable rated for current capacity of 2.8 A per pin.
- Operating temperature ranges from -40°C to +105°C ensuring reliability in harsh environments.
- Complies with RoHS standards for environmental compliance.
- Suitable for industrial and automation applications requiring precision wire to board connections.
Product Description
Samtec TCSD-05-S-06.00-01-N is a high-quality flat ribbon IDC socket cable assembly designed for industrial, automation, and electrical applications requiring reliable wire-to-board connection solutions. The assembly features Tiger Eye IDC connectors on both ends with female contact and connector genders, ensuring secure mating with compatible devices.
The cable has a compact 3.175 mm length with a jacket made from black glass filled polyester, providing excellent insulation properties and mechanical strength. The contact points are crafted from beryllium copper to maintain superior electrical conductivity and durability. This cable supports a current rating of 2.8 amps per pin, suitable for moderate power applications.
Designed to function in demanding environments, the cable operates effectively across a wide temperature range from -40°C to +105°C, making it ideal for various industrial automation, manufacturing, and control equipment installations. The product is fully RoHS compliant, adhering to environmental safety standards.
Black glass filled polyester jacket ensures high insulation and durability. Tiger Eye IDC connectors provide reliable female contacts on both ends. 3.175 mm precise cable length for compact connectivity. Beryllium copper contact points for excellent conductivity.
Current rating of 2.8 A per pin suitable for moderate power needs. Wide operating temperature range from -40°C to +105°C. RoHS compliant for environmental safety and sustainability.
This Cable Assembly is ideally deployed in electronic industrial automation systems, manufacturing equipment, laboratory instruments, and commercial electrical applications requiring precise, durable wire to board cable assemblies. For optimum performance and durability, Samtec TCSD-05-S-06.00-01-N offers a trusted solution compatible with a variety of industrial connectors.
Explore more cable assemblies within our Electronics & Electricals category to find matching components and accessories for your specific needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable assembly is rated for a current capacity of 2.8 A per pin, making it suitable for moderate power applications.
It operates effectively across a wide temperature range from -40°C to +105°C, ensuring reliability in harsh environments.
The jacket is made from black glass filled polyester, providing excellent insulation properties and mechanical strength.
It features Tiger Eye IDC connectors on both ends with female contact and connector genders, ensuring secure mating with compatible devices.
The cable has a precise length of 3.175 mm, designed for compact connectivity.
Yes, this cable assembly complies with RoHS standards for environmental safety and sustainability.
It is suitable for industrial automation, manufacturing equipment, laboratory instruments, and commercial electrical applications requiring precise wire-to-board connections.
The contact points are crafted from beryllium copper, which maintains superior electrical conductivity and durability.
Both connectors are female, ensuring compatibility with devices that require female contacts.
This assembly belongs to the TCSD series, which includes various flat ribbon cable solutions.
The country of origin for this cable assembly is India.
This assembly is classified as a flat ribbon cable, designed for efficient wire-to-board connections.
