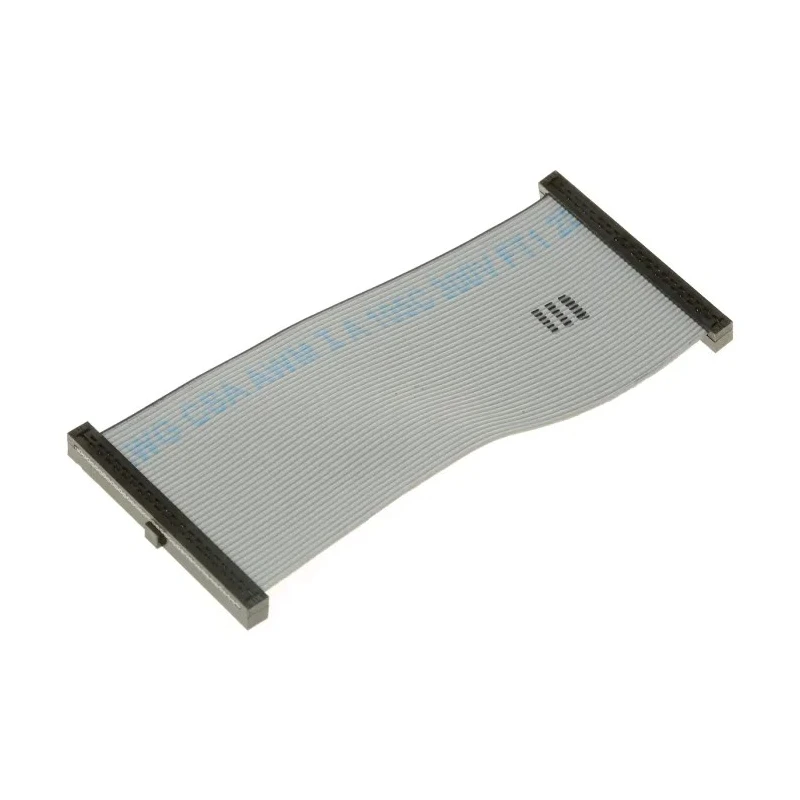

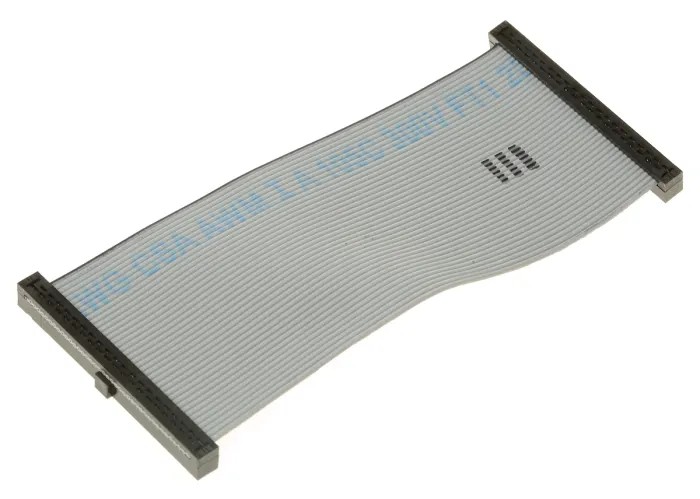

Samtec TCSD Series Flat IDC Socket Cable Assembly 100 mm Length TCSD-20-D-04.00-01-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | TCSD-20-D-04.00-01-N |
| Cable Length | 100mm |
| Series | TCSD |
| Cable Type | Flat |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | RoHS Compliant, UL |
| Connector Type A | TCSD IDC |
| Connector Gender A | Female |
| Jacket Colour | Grey |
| Contact Gender A | Female |
Key Features
- Constructed with 28 AWG 7/36 stranded tinned copper wires insulated by PVC jacket.
- Features gold plated IDC Tiger Eye contacts for enhanced signal integrity.
- Grey PVC jacket provides durable and flexible insulation.
- Complies with RoHS and UL standards for safe industrial use.
- Designed for IDC socket to socket ribbon cable applications with double-row female connectors.
- Polarizing notch ensures accurate mating with compatible connectors.
- Suitable for electronics, automation, and wire-to-board cable applications.
- Connector and contact genders are female at both ends for consistent interface.
Product Description
Samtec TCSD-20-D-04.00-01-N is a TCSD Series flat IDC socket cable assembly measuring 100 mm in length, featuring a 2.00 mm pitch double-row female socket IDC connector at each end. This cable assembly utilizes 28 AWG 7/36 stranded tinned copper wires insulated with polyvinyl chloride jacket in grey color to provide robust electrical insulation and flexibility.
Its highly reliable gold plated IDC Tiger Eye contacts and polarizing notch design deliver accurate mating and optimal signal performance in demanding electrical and automation applications. This cable is RoHS compliant and meets UL standards, ensuring it is suitable for industrial, laboratory, manufacturing, and automation environments.
The assembly is intended for wire-to-board connection using TCSD IDC connectors on both ends and is compatible with a variety of header series such as TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, and ZSTMM.
The grey PVC jacket provides durability and protection in harsh environments while maintaining flexibility. The female connector and contact genders at both ends ensure a consistent connection interface throughout the cable assembly.
Constructed with 28 AWG stranded tinned copper wire and PVC insulation. Double-row 2.00 mm pitch female IDC sockets with gold plated contacts. RoHS compliant and UL approved for industrial safety. 100 mm overall cable length ideal for compact wiring solutions.
Polarizing notch for accurate connector mating and reliability. Designed for electronic, automation, and wire-to-board cable systems. Compatible with multiple header series connectors from Samtec. Grey polyvinyl chloride jacket for enhanced durability and flexibility.
This Samtec TCSD Series IDC socket Cable Assembly is a critical component for electrical, automation, and manufacturing system wiring requiring high-precision connector solutions. Explore EnvMart's selection of cable assemblies and related components for optimized connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TCSD-20-D-04.00-01-N cable assembly measures 100 mm in length.
This model features TCSD IDC connectors with female gender at both ends.
It is constructed with 28 AWG 7/36 stranded tinned copper wires insulated by a grey polyvinyl chloride (PVC) jacket.
Yes, it is RoHS compliant and meets UL standards for safety in industrial use.
This cable assembly is designed for electronics, automation, and wire-to-board cable applications.
The connectors on this assembly have a 2.00 mm pitch.
Yes, it includes a polarizing notch that ensures accurate mating with compatible connectors.
The jacket of this cable assembly is grey in color.
This assembly is classified as a flat cable type.
The country of origin for this cable assembly is India.
The gold plated IDC Tiger Eye contacts enhance signal integrity and performance in electrical applications.
Yes, it is compatible with various header series including TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, and ZSTMM.
