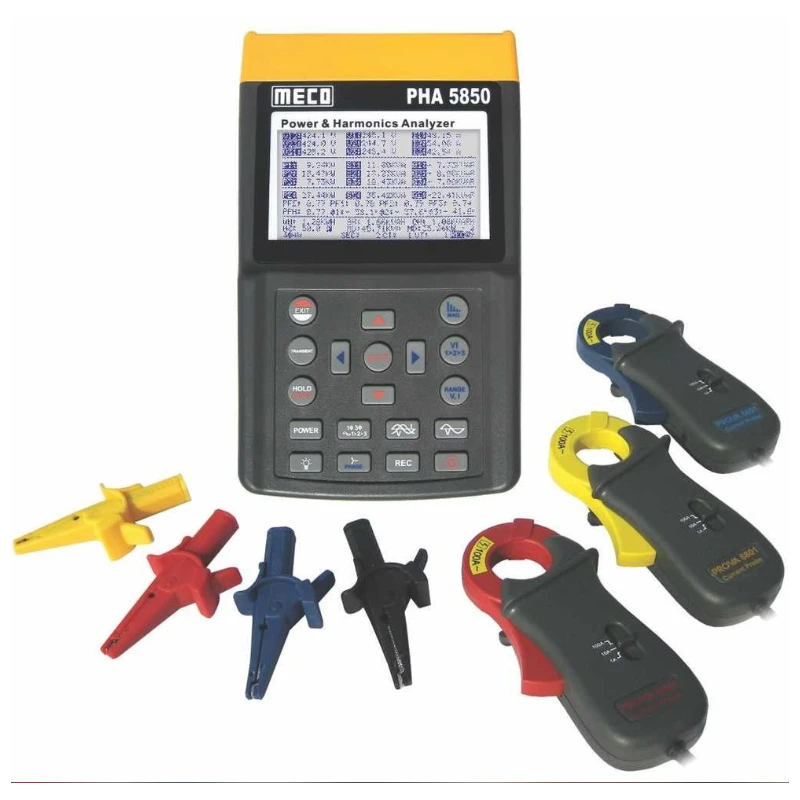

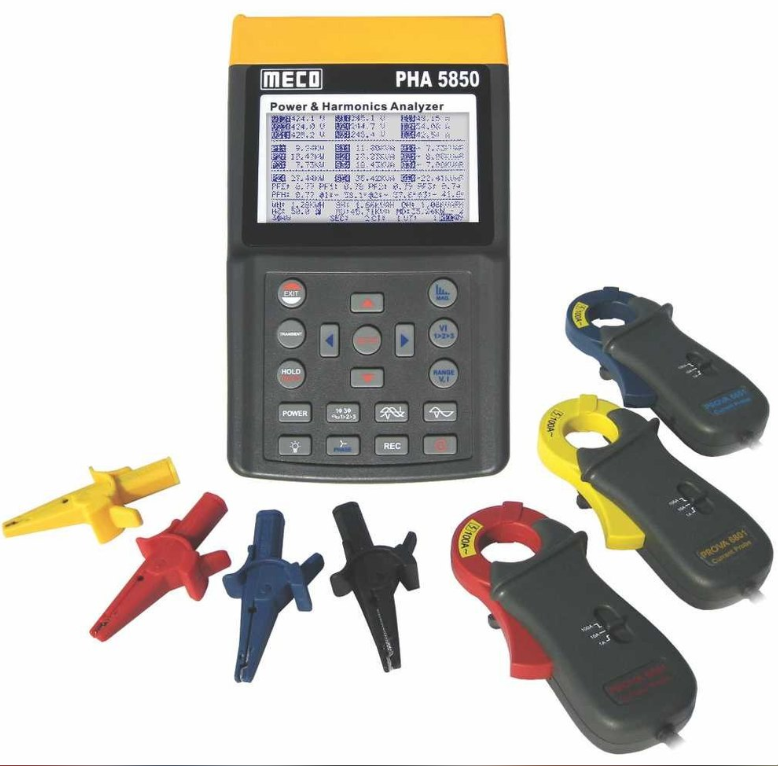

Meco Power & Harmonics Analyzer PHA-5850C
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Voltage Test Leads /Alligator Clips (Voltage) /Carrying Bag /Batteries 1.5V /External DC Adaptor /Software CD /Users Manual /Software Manual /Optical USB Cable /Current Clamps |
| Power Consumption | 140mA(approx) |
| Display | Dot Matrix LCD (240×128) with backlight |
| Operating Condition | -10°C to 50°C Less than 85%RH |
| Brand | Meco |
| Power | Eight×1.5V AA Batteries |
| Dimensions | 257×155×57mm |
| Model | PHA-5850C |
| Weight | 1.16 kg |
| Sampling Time | 2 to 3000 seconds for data logging |
| No. of samples | 1024 samples /period |
| Storage Condition | -20°C to 60°C Less than 75%RH |
| LCD Update Rate | 1 time /second |
| External DC Input | Power supply adapter 12V DC |
Key Features
- Analysis of 3P4W, 3P3W, 1P2W, 1P3W Systems
- Display of 35 Parameters in one screen (3P4W)
- Programmable CT (1 to 600) and PT (1 to 3000) Ratios
- RMS, PEAK Value & Crest Factor
- True RMS value, Active Power, Apparent & Reactive Power ( KVA, KVAR)
- Power Factor, Phase Angle ( ? ) & Energy (WH, KWH, KVARH, PFH)
- Average / Maximum Demand (KW, MW, KVA, MVA) with Programmable Period
- Display of 50 Harmonics in one Screen with Waveform with Peak value (1024 Sample / Period)
- Analysis of total Harmonics Distortion (THD-F)
- Capture 28 Transient Events with Programmable Threshold (%) (DIP, SWELL & OUTAGE)
- Built-in timer & Calender for Data Logging
- 512K Memory with Programmable interval (2 to 3000 seconds, 17000 records for 3P4W Systems)
- Optical Isolated RS-232C ~ USB Interface
- Calculated Unbalanced Current through Neutral line
- Graphic Phasor Diagram
- Facility to retrieve Power Data & Harmonics on Meter Screen
Product Description
The Meco PHA-5850C is a professional-grade power and harmonics analyzer suitable for industrial power quality analysis. It measures voltage, current, frequency, power factor, active/reactive power, and harmonic distortion with precision. Its large graphical LCD and data logging features enable real-time monitoring and analysis of three-phase systems. Designed for electrical engineers and technicians, the device supports energy audits and system diagnostics, helping identify inefficiencies, power anomalies, and equipment wear caused by harmonic distortions.
Available on EnvMart, these Digital Analyzers are designed for accurate analysis of electrical parameters and power quality. Meco Digital Analyzers provide precision, durability, and reliability for industrial, laboratory, and maintenance applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Meco PHA-5850C measures voltage, current, frequency, power factor, active/reactive power, and harmonic distortion. It displays 35 parameters on one screen and supports the analysis of total harmonic distortion (THD-F) and captures transient events.
The Meco PHA-5850C operates within a temperature range of -10°C to 50°C with a relative humidity of less than 85% RH.
The Meco PHA-5850C features a dot matrix LCD display with a resolution of 240×128 pixels and includes a backlight for visibility.
The Meco PHA-5850C is powered by eight 1.5V AA batteries and also has an external DC input requirement of 12V DC.
The dimensions of the Meco PHA-5850C are 257×155×57 mm, and it weighs 1.16 kg.
The Meco PHA-5850C can analyze 3P4W, 3P3W, 1P2W, and 1P3W systems, providing comprehensive power quality analysis.
The Meco PHA-5850C captures 1024 samples per period for detailed analysis of electrical parameters.
The Meco PHA-5850C has a memory capacity of 512K, allowing for data logging of up to 17,000 records for 3P4W systems with programmable intervals from 2 to 3000 seconds.
The Meco PHA-5850C package includes voltage test leads, alligator clips, a carrying bag, batteries, an external DC adaptor, software CD, user manuals, an optical USB cable, and current clamps.
The LCD update rate for the Meco PHA-5850C is 1 time per second, ensuring timely data display during analysis.
The Meco PHA-5850C is manufactured in India.
The power consumption of the Meco PHA-5850C is approximately 140mA.
