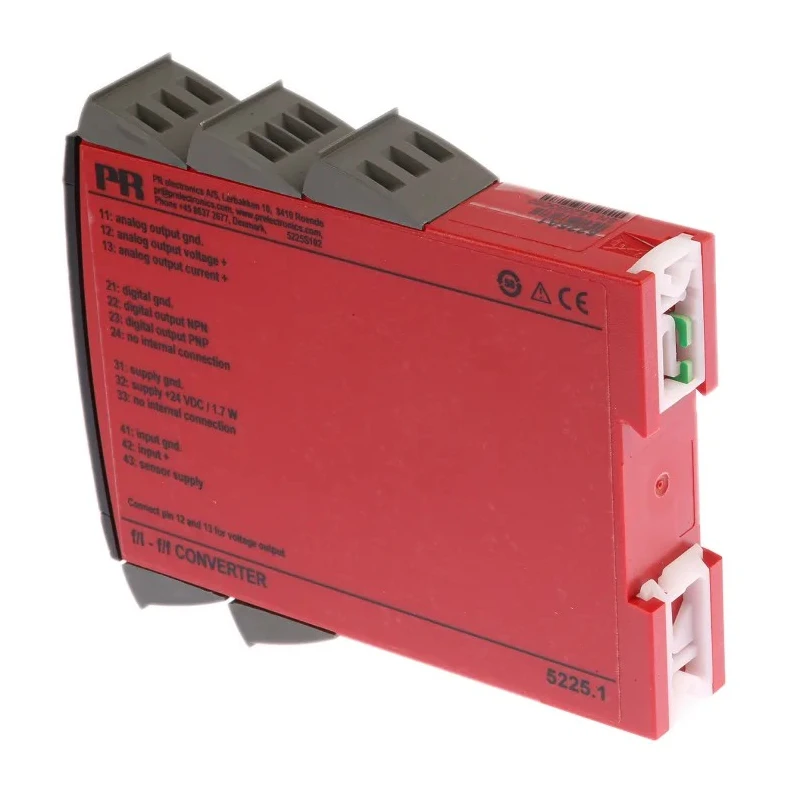

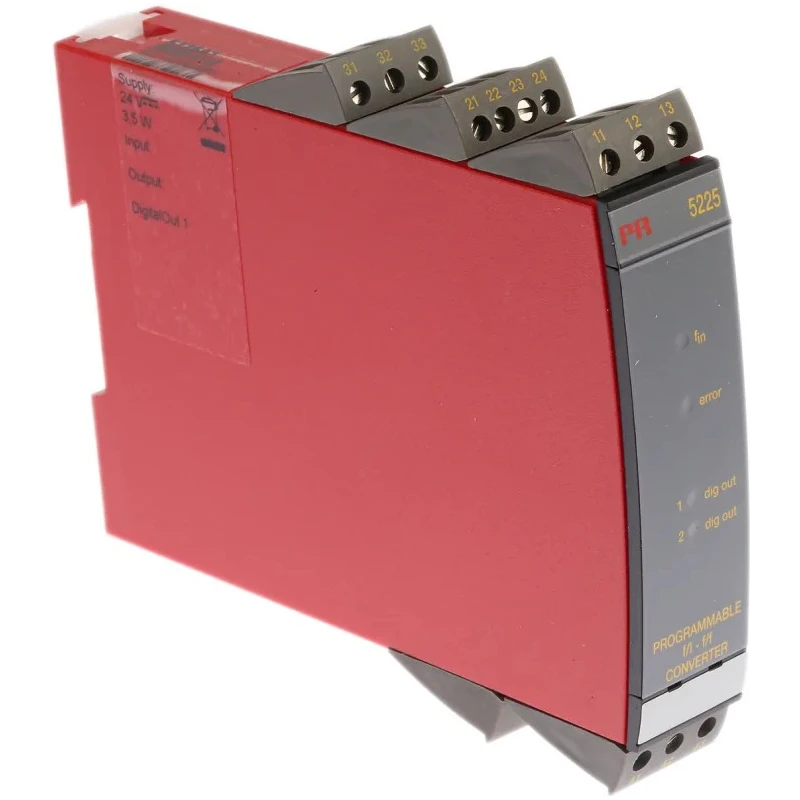

PR Electronics 5000 Series Signal Conditioner, Frequency Input, Voltage, Current, Relay Output, 19.2V dc, 28.8 V dc 5225A1
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | PR Electronics |
| Model | 5225A1 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Isolation | 3.75kV ac |
| Series | 5000 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Output Range | 0 → 20 mA |
| Input Range | 0 → 20 kHz |
| Supply Voltage | 19.2, 28.8V dc |
| Input Signal Type | Frequency |
| Standards/Approvals | CE, EAC, EMC, LVD |
| Output Signal Type | Voltage, Current, Relay |
| Signal Conditioner Type | Converter |
Key Features
- Programmable frequency to current and frequency to frequency converter functions are included.
- Provides galvanic isolation of 3.75 kV ac for system protection.
- Supports pulse conditioning and frequency generation with multiple output types.

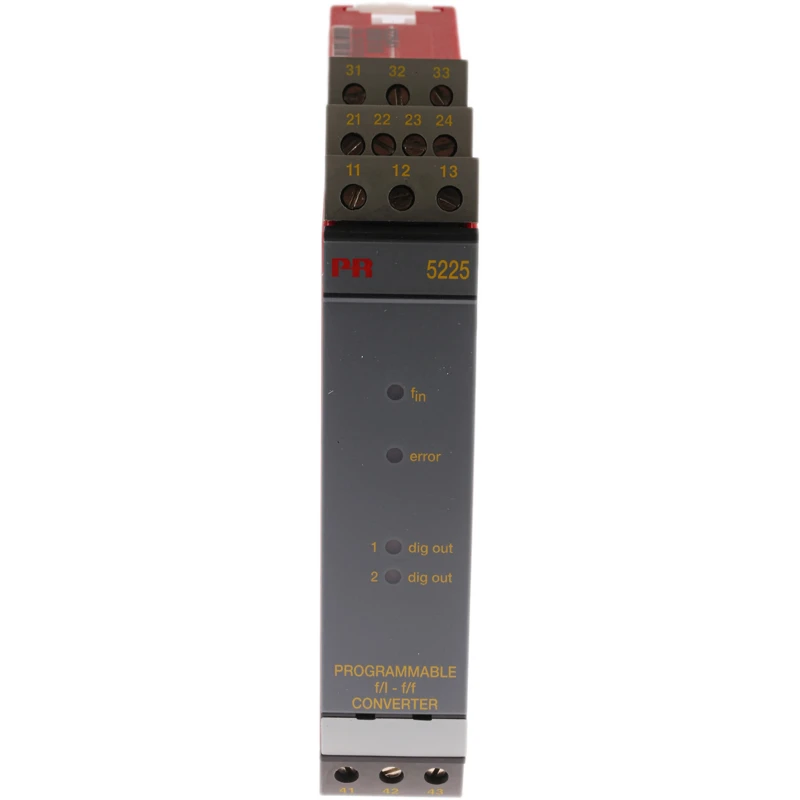

- Equipped with 4 status LEDs on the front panel for monitoring.
- Designed with DIN rail mount type and IP20 rated enclosure.
- Operates reliably within the temperature range of -20°C to 60°C.
- Output ranges include 0 to 20 mA analog current and voltage outputs (0 to 10 Vdc / 0 to 1 Vdc).
- Input range supports frequencies from 0 up to 20 kHz.
Product Description
PR Electronics 5225A1 Signal Conditioner is a programmable frequency-to-current and frequency-to-frequency converter designed for industrial and automation applications. It handles frequency input signals and provides voltage, current, and relay outputs, powered by 19.2 V dc and 28.8 V dc supply voltages. The device is mounted on a DIN rail and features a durable IP20 rated enclosure suitable for electrical panels.
This model offers pulse conditioning capabilities and is well-suited for frequency generators and pulse train buffering. The converter includes galvanic isolation rated at 3.75 kV ac, ensuring electrical safety and system isolation during operation.
Equipped with 4 status LEDs on the front side, it offers clear indication of operational status. The signal conditioner supports voltage and current output ranges of 0 - 10 Vdc/0 - 1 Vdc and 0 - 20 mA respectively, enabling flexible interfacing with control systems and instrumentation.
Operating efficiently in environments from -20°C to 60°C, the product uses screw-type terminal connectors for easy and secure wiring. It meets CE, EAC, EMC, and LVD standards, confirming compliance with international safety and performance requirements.
The 5225A1 can be configured using standard PC software along with the Loop Link communications unit. User programming is possible with or without an external power supply. An optional display front (PR4510) is available separately for enhanced user interface and monitoring.
This signal conditioner is ideal for industrial automation, laboratory instrumentation, electrical systems, and HVAC control applications where reliable signal conversion and conditioning are required.
Programmable frequency to current and frequency to frequency conversion functionality. Galvanic isolation for enhanced system protection. Multiple output types including voltage, current, and relay for versatile use. DIN rail mounting facilitates installation in control panels.
Wide operating temperature range ensures adaptability to harsh industrial environments. Compliance with international electrical and safety standards. Easy configuration using PC and communications tools. Robust construction with screw terminals and IP20 rating.
Explore more Signal Conditioners and related products from PR Electronics and other leading brands on EnvMart for reliable industrial electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an input frequency range from 0 to 20 kHz.
It provides voltage, current, and relay output signals, specifically 0 to 20 mA for current and 0 to 10 Vdc / 0 to 1 Vdc for voltage outputs.
The device operates on supply voltages of 19.2 V dc and 28.8 V dc.
The maximum operating temperature for this model is 60°C.
It is designed for DIN rail mounting, making it suitable for installation in control panels.
This signal conditioner features galvanic isolation rated at 3.75 kV ac for system protection.
The 5225A1 has an IP20 rated enclosure, which is suitable for indoor use in electrical panels.
It uses screw-type terminal connectors for secure and easy wiring.
This model meets CE, EAC, EMC, and LVD standards, confirming its compliance with international safety and performance requirements.
The minimum operating temperature for this signal conditioner is -20°C.
This model is a single-channel signal conditioner.
Yes, it can be configured using standard PC software along with the Loop Link communications unit.
