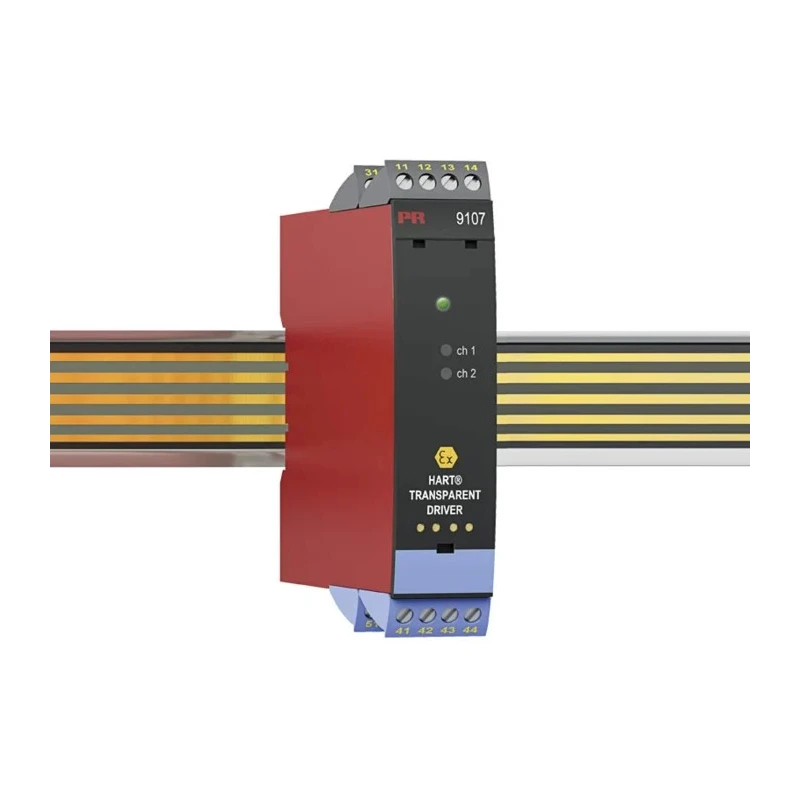

PR Electronics 9100 Series HART Transparent Driver Current Input Current Relay Output 19.2V dc 31.2V dc Supply 9107BA

PR Electronics 9107BA HART Transparent Driver is a high-performance signal conditioner for operation and control of I/P converters, valves, and indicators in hazardous areas. This device supports bidirectional transmission of HART communication signals over a 4-20 mA current loop, allowing interaction with HART-enabled field devices.

Designed for intrinsically safe energy levels, the 9107BA model complies with SIL 2 safety standards as per IEC 61508. It is suitable for installation in safe areas or hazardous zones such as Zone 2 / Cl. 1 Div. 2 and transmits signals safely to zones 0, 1, 2 and zones 20, 21, 22. This includes compliance with mining and Class I/II/III Div. 1 Group A-G hazardous environments.

Key features include 2.6 kVac galvanic isolation between input, output, and power supply, configurable direct or inverted channel functions, and monitoring of internal error events with individual status relay outputs. The transparent driver allows easy configuration and programming through the detachable PR 4501 display, which offers a user-friendly interface with a four-line backlit LCD and password protection.

The driver supports mounting on standard DIN rails and uses screw terminals for reliable electrical connections. It operates reliably within an ambient temperature range from -20°C to 60°C and includes an IP20 rated enclosure for dust protection.

Supports intrinsic safety and hazardous area certifications including ATEX. Enables operation of HART devices in flammable atmospheres. Monitors device status and fault signals for operational safety. Detachable programming display offers advanced setup capabilities.

Galvanic isolation protects against electrical interference and hazards. Durable DIN rail mountable design. Complies with multiple industrial standards including NE 43, IECEX, FM, and UL 61010/508.

This driver is ideal for applications in industrial automation, process control, and instrumentation systems where reliable signal conditioning and safe HART communication are required. It supports operation in industries such as chemical processing, oil and gas, manufacturing, HVAC, and water treatment facilities.
