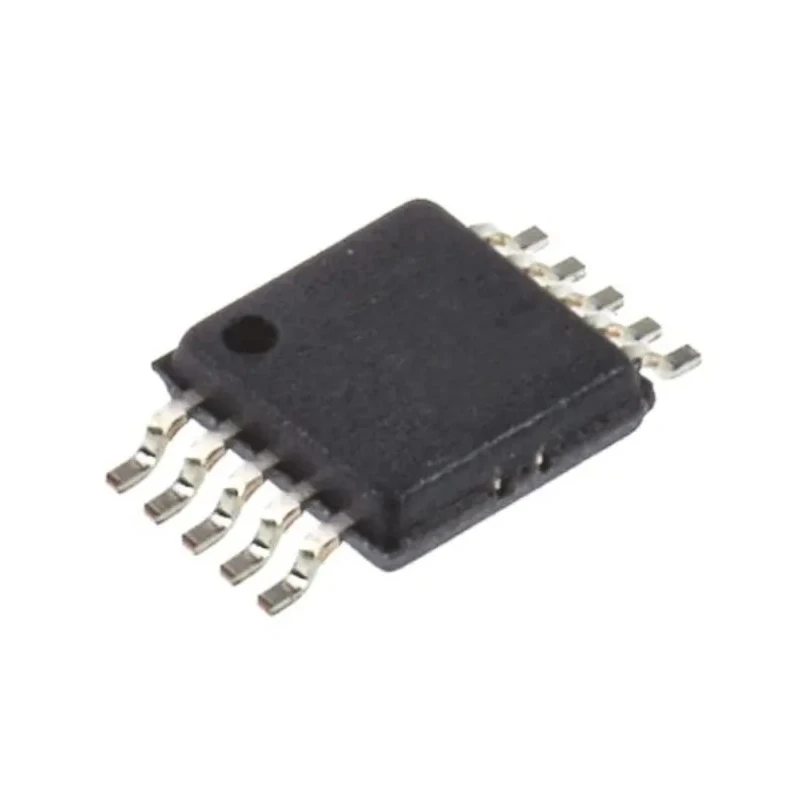

Maxim Integrated CMOS Logic Multiplexer, 1 Element Single 4:1 Configuration, 10-Pin μMAX Package MAX4704EUB+

Maxim Integrated's MAX4704EUB+ is a high-performance CMOS logic multiplexer designed for single-element 4:1 switching applications. Packaged in a 10-pin μMAX surface-mount package measuring 3.05mm by 3.05mm with a height of 950μm, this device integrates seamlessly into compact electronic designs.

Supporting a minimum supply voltage of 1.8V and a maximum of 5.5V, the MAX4704EUB+ guarantees reliable operation across a broad voltage range. It offers a maximum on-state resistance of 70Ω ensuring efficient signal conduction, while its low leakage current of 100pA (max at 25°C) minimizes power loss, making it suitable for battery-powered and portable systems.

The multiplexer supports rail-to-rail signal handling with a high -3dB bandwidth exceeding 200MHz, delivering excellent frequency response and signal fidelity. Switching times are optimized with an on-time (tON) of 60ns and off-time (tOFF) of 20ns, enabling fast channel selection required in communication and data acquisition systems.

Key features include low crosstalk (-90dB at 1MHz) and high off-isolation (-85dB at 1MHz), which ensure minimal signal interference between channels. This CMOS logic device is fully compatible with TTL outputs, facilitating integration into diverse electronic architectures.

Typical applications for the MAX4704EUB+ multiplexer include audio/video signal routing, cell phones, communication systems, modems, MP3 players, PCMCIA cards, and as relay replacements in various industrial and consumer electronics.

Operates from 1.8V to 5.5V single supply voltage. Compact 10-pin μMAX surface-mount package measuring 3.05mm × 3.05mm × 0.95mm. Low on-state resistance and matched channel resistance for precise switching. Fast switching speeds with minimal switching delay.

Low leakage currents ensuring energy-efficient operation in low-power devices. Superior channel isolation, minimizing signal degradation and crosstalk. Rail-to-rail signal handling ensuring full voltage range compatibility.

Applications in telecommunications, audio/video, and data acquisition systems.

For engineers and designers seeking compact, efficient analog multiplexers suitable for low-voltage and precision applications, Maxim Integrated's MAX4704EUB+ provides a reliable, high-performance solution. Explore the full range of multiplexer and demultiplexer ICs at EnvMart to meet your project needs.
