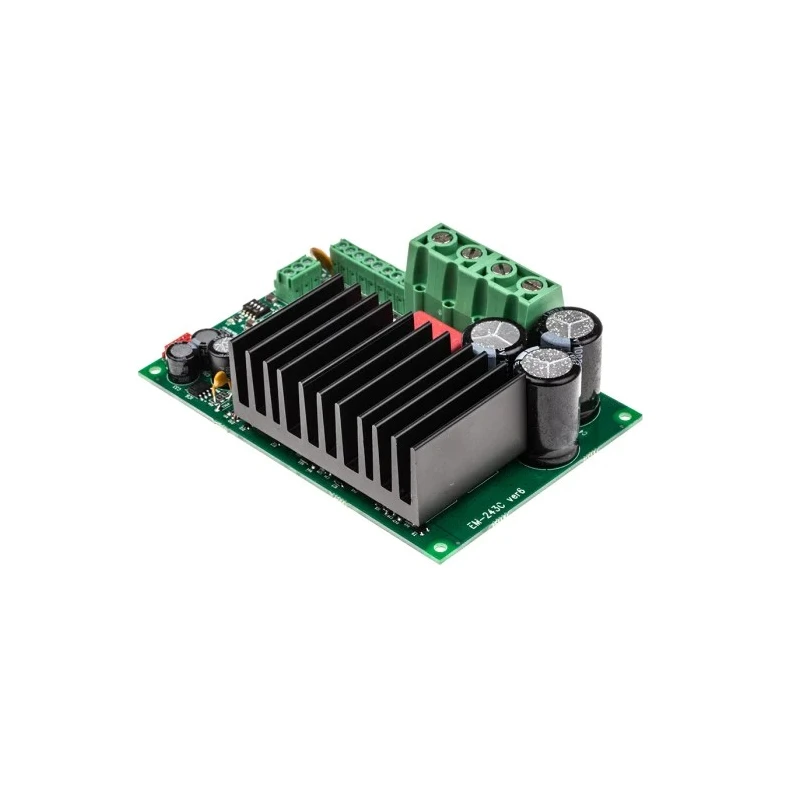

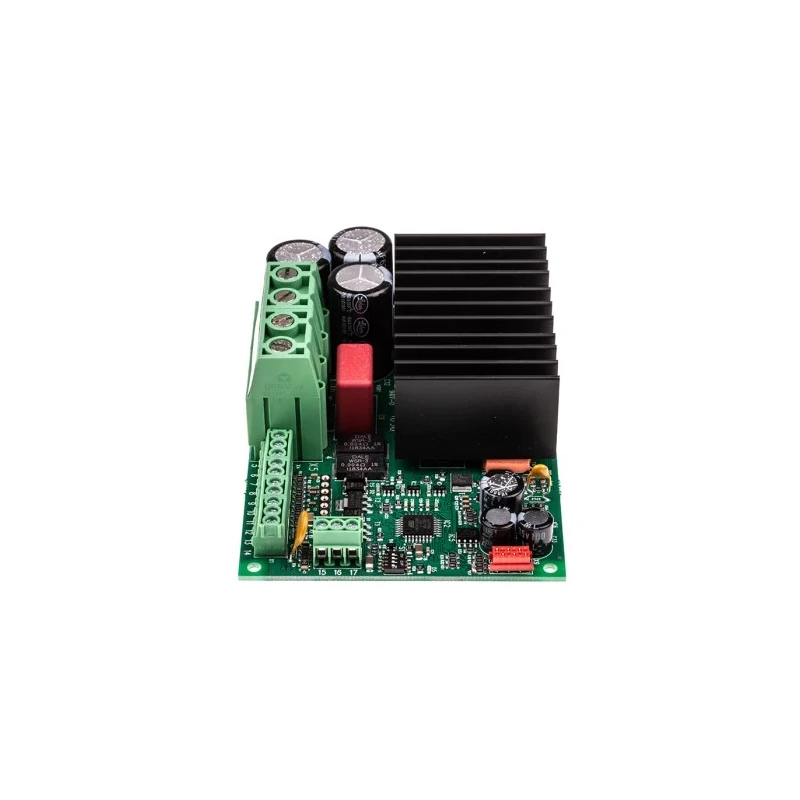

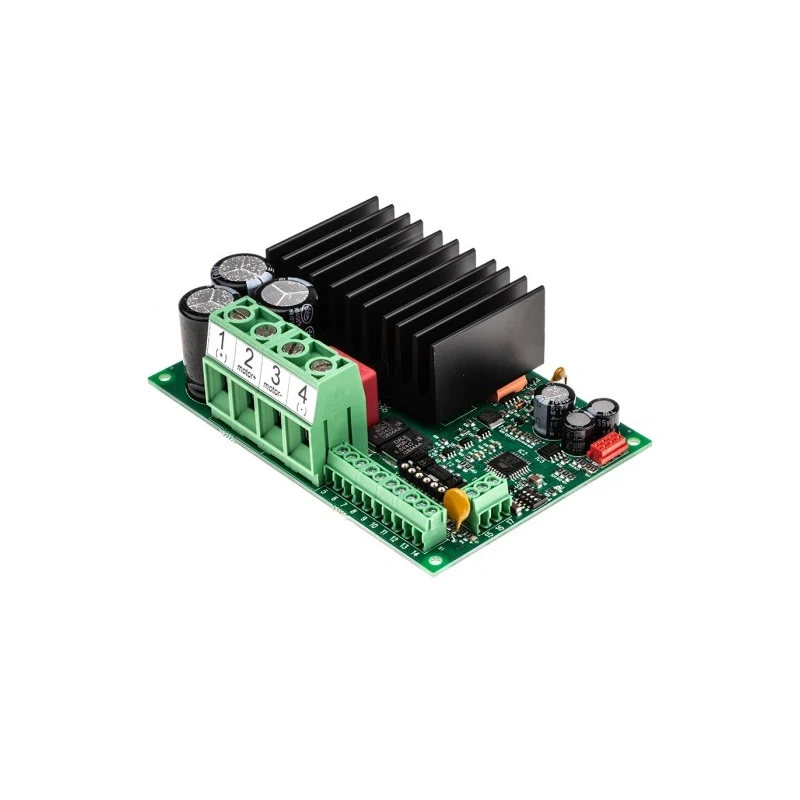

Electromen OY 12V DC 48V DC 50A DC Motor Controller with Potentiometer Function EM-243C

Electromen OY EM-243C DC Motor Controller is a compact full bridge starter designed for precise control of DC motors operating between 12V and 48V DC with a maximum current of 50A. It incorporates potentiometer control functionality ideal for applications requiring adjustable speed and direction control.

The controller offers adjustable acceleration and deceleration ramps for smooth motor operation and protection against current surges via a configurable current limit. Dual settable speeds support positioning tasks, controlled by dedicated forward, backward, and stop inputs as well as individual limit inputs for direction control.

The fault terminal acts as both input and output, enabling thermal and overcurrent shutdown, and allows linking multiple units for synchronous motor stops, enhancing system safety. Two control modes, continuous and impulse, accommodate operational flexibility, with the impulse mode allowing motor start/stop via short commands.

This model is compact, rail base mountable, and digital parameter configurable, compatible with both C and A version cards for firmware updates. The latest 243C v.2 board version adds features including freewheel options, PWM frequency selection at 2kHz or 16kHz, analog current limit input, speed and direction modes, and fan and brake control capabilities.

With dimensions of 110mm length, 80mm width, and 55mm depth, the EM-243C supports operation in harsh environments between -40°C and 60°C. Manufactured in Finland, it is suitable for industrial, automation, robotics, and manufacturing applications needing reliable DC motor control.

Features adjustable acceleration and deceleration for smooth motor starts and stops. Includes an adjustable current limit for motor overcurrent protection. Offers two settable speeds useful for positioning applications. Supports forward, backward, and stop control with flexible digital inputs.

Equipped with fault detection and synchronized stop capabilities. Selectable continuous or impulse control modes for varied operation. Small compact design suitable for rail base mounting. Compatible with C and A version cards, supporting firmware updates.
