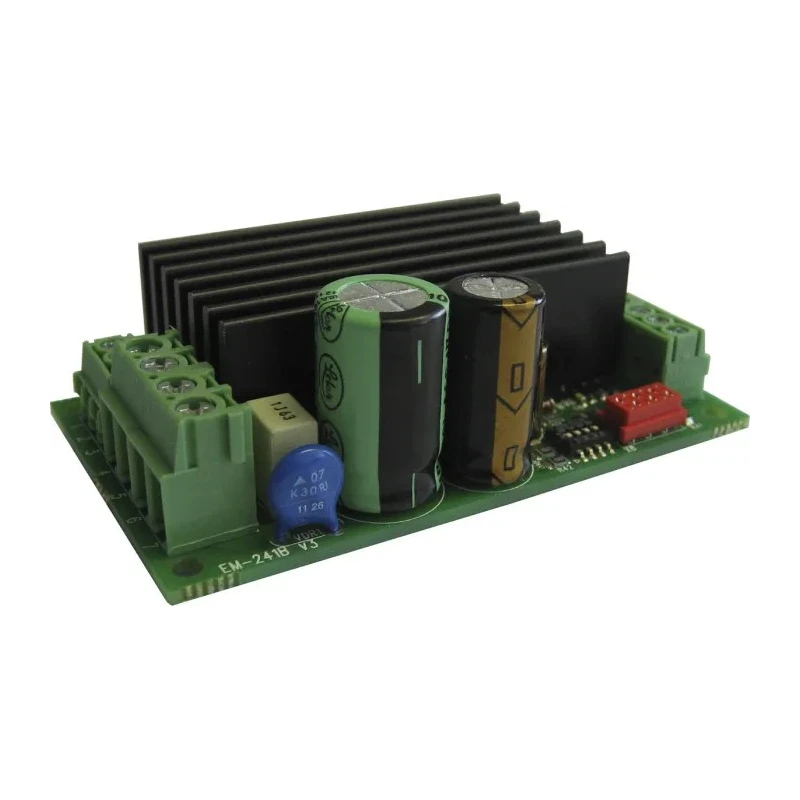

Electromen OY DC Motor Controller 20-60 V DC, 10A, PWM Function EM-241C 48V

Electromen OY EM-241C 48V DC Motor Controller is a versatile full-bridge brushed DC motor starter designed for industrial and automation applications requiring reliable PWM motor speed and direction control. The device operates from a wide supply voltage range of 20 to 60 V DC and can deliver continuous current up to 10A with peak current handling for efficient motor performance.

This controller features adjustable acceleration and deceleration ramps ensuring smooth and precise motor control during start and stop cycles, which reduces mechanical stress on the system. Built-in current limiting protects the motor from overload, while configurable end-stop functions using limit switch inputs enable precise positioning, beneficial for applications involving linear actuators or positioning mechanisms.

The compact, DIN rail mountable design facilitates installation in control panels for manufacturing, HVAC systems, and robotics. It supports fault output signals to alert users of operational issues such as current trips or overcurrent conditions, enhancing system safety and maintenance predictability.

The C-version firmware includes advanced parameters such as freewheel options for rotor release and selectable PWM frequencies up to 16 kHz, providing inaudible motor operation for noise-sensitive environments. Control inputs offer both impulse and continuous modes to cater to various automation control logics.

Parameter adjustments can be performed via multiple interfaces including the EM-236 interface unit, EM-268 PC programming software with Menthol-Lite, and the EM-326 smartphone app, allowing flexible configuration to meet diverse operational needs.

Manufactured in Finland, this product conforms to EN - 55022B standards and is ideal for industrial automation, laboratory equipment, manufacturing processes, and other environments that demand robust DC motor control solutions.

Supports output voltage of 24 to 48 V DC with PWM control. Operates safely within the temperature range of -40°C to 60°C. Features adjustable acceleration and deceleration ramps for smooth motor starts and stops. Includes current limiting and end-stop functions to protect the motor from overcurrent.

Equipped with limit switch inputs for precise positioning and end-of-travel detection. Compact design suitable for DIN rail mounting in industrial environments. Provides fault output indication for current trip and overcurrent conditions.

Includes selectable PWM frequency up to 16 kHz for inaudible operation. Offers both impulse and continuous control modes for versatile motor management. Parameter setting available via EM-236 interface, EM-268 PC program, or EM-326 smartphone app.
