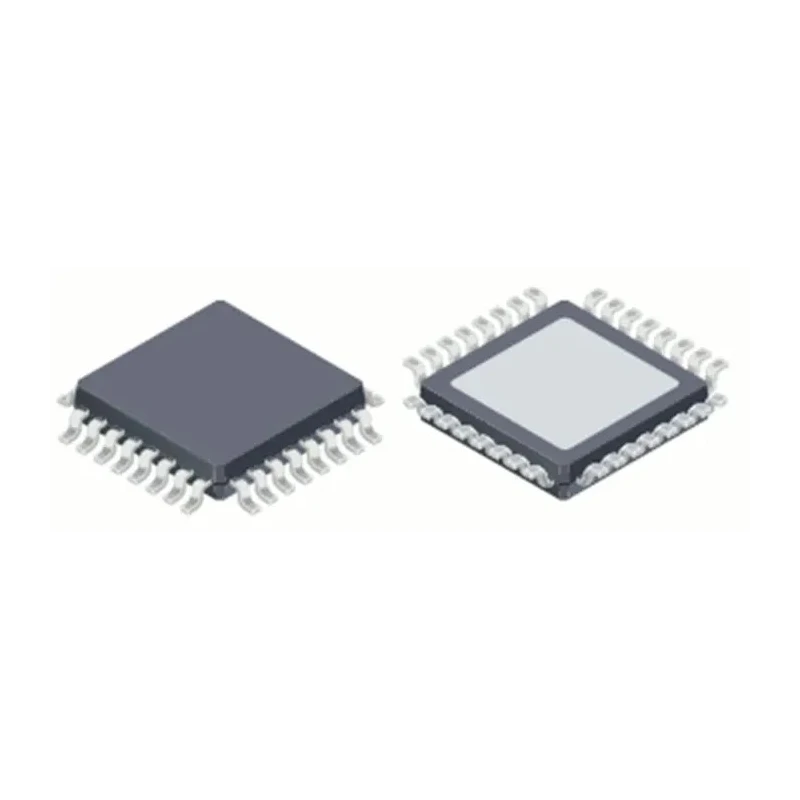

Allegro Microsystems Brushless DC Motor Controller 50 V 32-Pin LQFP A4960KJPTR-A-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Allegro Microsystems |
| Height | 1.4mm |
| Length | 7mm |
| Model | A4960KJPTR-A-T |
| Width | 7mm |
| Motor Type | Brushless DC Motor |
| Mount Type | Surface |
| Series | A4960 |
| Maximum Operating Temperature | 150°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 32 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum Supply Voltage | 50V |
| Minimum Supply Voltage | 7V |
| Supply Current | 10mA |
Key Features
- This device is fabricated in 32-pin LQFP package suitable for surface mounting.
- Operates within a voltage range of 7 V to 50 V providing versatile power supply compatibility.
- Equipped with an automotive-grade AEC-Q101 standard for high reliability in automotive applications.
- Supports motor control with a supply current of approximately 10 mA.
- Operates reliably over a temperature range of -40°C to 150°C for industrial and automotive environments.
- The compact physical dimensions include 7 mm length, 7 mm width, and 1.4 mm height.
Product Description
Allegro Microsystems A4960KJPTR-A-T is a highly integrated Brushless DC Motor Controller designed to drive brushless DC motors with a maximum collector-emitter voltage of 50 V. It is packaged in a 32-pin Low Quad Flat Package (LQFP) intended for surface mount assembly, making it suitable for modern electronics manufacturing processes.
This motor driver IC supports a power supply voltage range from 7 V minimum to 50 V maximum, providing ample flexibility for various motor power requirements. The device supports a supply current of approximately 10 mA, maintaining efficient operation.
Operating temperature range spans from -40°C to 150°C, making this model well-suited for harsh industrial and automotive applications requiring extended temperature tolerance. Its compliance with the automotive industry standard AEC-Q101 validates its robustness and reliability for vehicular systems.
The compact dimensions of 7 mm by 7 mm with a height of 1.4 mm allow it to be integrated into space-constrained designs effectively. The 32-pin configuration enables complex motor control circuit implementations using Allegro Microsystems' Brushless DC Motor Controller series A4960.
This controller implements precise motor control for brushless DC motors with high reliability. It features automotive-grade qualifications ensuring durability in transport and industrial sectors. The wide supply voltage range supports diverse motor applications and power systems.
Compact package size facilitates integration into compact PCBs for embedded systems. Extended temperature range offers reliable operation under extreme environmental conditions.
This product is ideal for electronic components applications in power management and motor driver circuits across automotive, industrial, and consumer electronics domains. It is designed to improve motor efficiency and control accuracy, providing advanced solutions for OEMs and system integrators.
Explore the 'Motor Controller' category on EnvMart for additional power management ICs and motor driver solutions from Allegro Microsystems and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Allegro Microsystems A4960KJPTR-A-T operates within a supply voltage range of 7 V to 50 V.
This motor controller has a maximum collector-emitter voltage of 50 V.
It supports a supply current of approximately 10 mA.
The dimensions of the A4960KJPTR-A-T are 7 mm in length, 7 mm in width, and 1.4 mm in height.
The operating temperature range for this model is from -40°C to 150°C.
It is designed to drive brushless DC motors.
This motor controller is packaged in a 32-pin Low Quad Flat Package (LQFP) suitable for surface mounting.
Yes, it complies with the automotive-grade AEC-Q101 standard.
The AEC-Q101 standard indicates that this motor controller is designed for high reliability in automotive applications.
Its compact dimensions facilitate integration into space-constrained designs, making it suitable for embedded systems.
This motor controller is intended for surface mount assembly.
This model is ideal for electronic components applications in power management and motor driver circuits across automotive, industrial, and consumer electronics domains.
