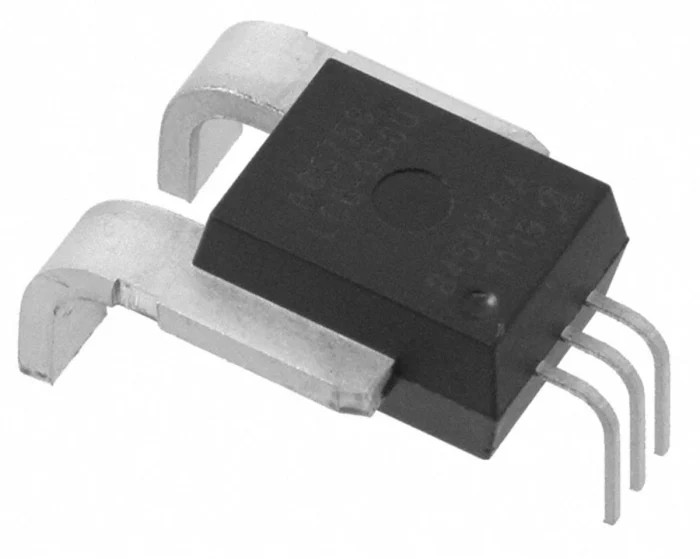

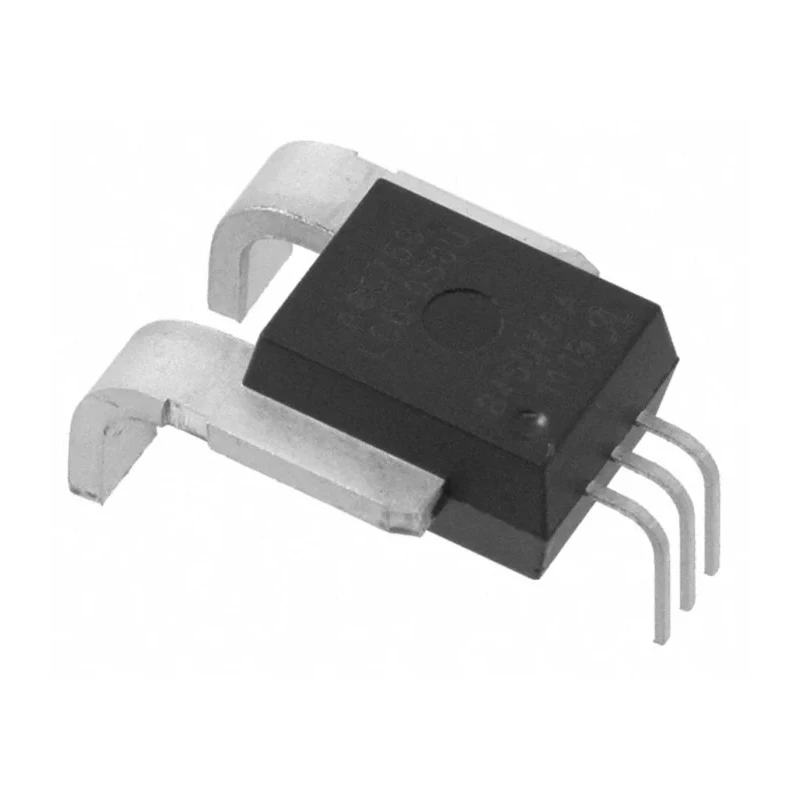

Allegro Microsystems Current Sensor 5-Pin Through Hole, Offset Voltage ±6 mV, Bandwidth 120kHz ACS770LCB-050U-PFF-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Allegro Microsystems |
| Height | 7mm |
| Length | 14mm |
| Model | ACS770LCB-050U-PFF-T |
| Mount Type | Through Hole |
| Bandwidth | 120kHz |
| Series | ACS770 |
| Maximum Operating Temperature | 150°C |
| Package Type | PFF |
| Minimum Operating Temperature | -40°C |
| Offset Voltage | ±6 mV |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
Key Features
- Features an offset voltage of ±6 mV for accurate sensing.
- Operates with a bandwidth of 120 kHz suitable for various electrical applications.
- Package type PFF with 5 pins enables easy integration in through-hole mounting systems.
- Supports supply voltage range from 4.5V to 5.5V for flexible use.
- Recommended operating temperature range from -40°C to 150°C for robustness in harsh environments.
- Compact dimensions with a height of 7 mm and length of 14 mm for small footprint installations.
- Complies with RoHS standards and automotive-grade AEC-Q100 certification for quality assurance.
Product Description
Allegro Microsystems ACS770LCB-050U-PFF-T is a high-precision current sensor IC featuring a 5-pin PFF package and through-hole mounting configuration. This current sensor IC is engineered to deliver precise current measurements with an offset voltage of ±6 mV and a wide bandwidth of 120 kHz, making it suitable for industrial, automotive, and electrical control applications.
Designed to operate with a supply voltage between 4.5V and 5.5V, it ensures efficient performance in low-voltage circuits. The device supports a broad temperature range from -40°C to 150°C, ensuring reliability in harsh operating environments including automotive and industrial settings.
The sensor offers galvanic isolation up to 3000 Vrms and ultra-low conductor resistance of 100 μΩ to minimize power loss, enhancing system efficiency. Its compact form factor, with 7 mm height and 14 mm length, facilitates integration into tight PCB layouts.
The ACS770 series, including this model, meets RoHS compliance and automotive-grade AEC-Q100 standards, underscoring quality and safety for demanding applications. It is ideal for power management, motor control, battery monitoring, and energy metering in industrial, automotive, and laboratory equipment.
Features an offset voltage of ±6 mV for accurate sensing. Operates with a bandwidth of 120 kHz suitable for various electrical applications. Package type PFF with 5 pins enables easy integration in through-hole mounting systems.
Supports supply voltage range from 4.5V to 5.5V for flexible use. Recommended operating temperature range from -40°C to 150°C for robustness in harsh environments. Compact dimensions with a height of 7 mm and length of 14 mm for small footprint installations.
Complies with RoHS standards and automotive-grade AEC-Q100 certification for quality assurance.
This Current Sensor IC is a critical component for manufacturers and engineers in the electronics, automation, automotive, and instrumentation industries seeking reliable and precise current sensing solutions. Explore our catalog for more semiconductor components and current sensors at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The offset voltage of this current sensor is ±6 mV, which allows for accurate current sensing.
The bandwidth of the ACS770LCB-050U-PFF-T is 120 kHz, making it suitable for various electrical applications.
It operates within a temperature range of -40°C to 150°C, ensuring reliability in harsh environments.
This current sensor supports a supply voltage range from 4.5V to 5.5V, providing flexibility for different applications.
The dimensions of this current sensor are 7 mm in height and 14 mm in length, allowing for compact installations.
The ACS770LCB-050U-PFF-T features a 5-pin configuration for through-hole mounting.
This model utilizes a through-hole mounting type, facilitating easy integration into PCB layouts.
The ACS770LCB-050U-PFF-T complies with RoHS standards and is certified to the automotive-grade AEC-Q100 standard.
The maximum operating temperature for the ACS770LCB-050U-PFF-T is 150°C.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
This current sensor is suitable for applications in power management, motor control, battery monitoring, and energy metering.
The ACS770LCB-050U-PFF-T has an ultra-low conductor resistance of 100 μΩ, which minimizes power loss.
