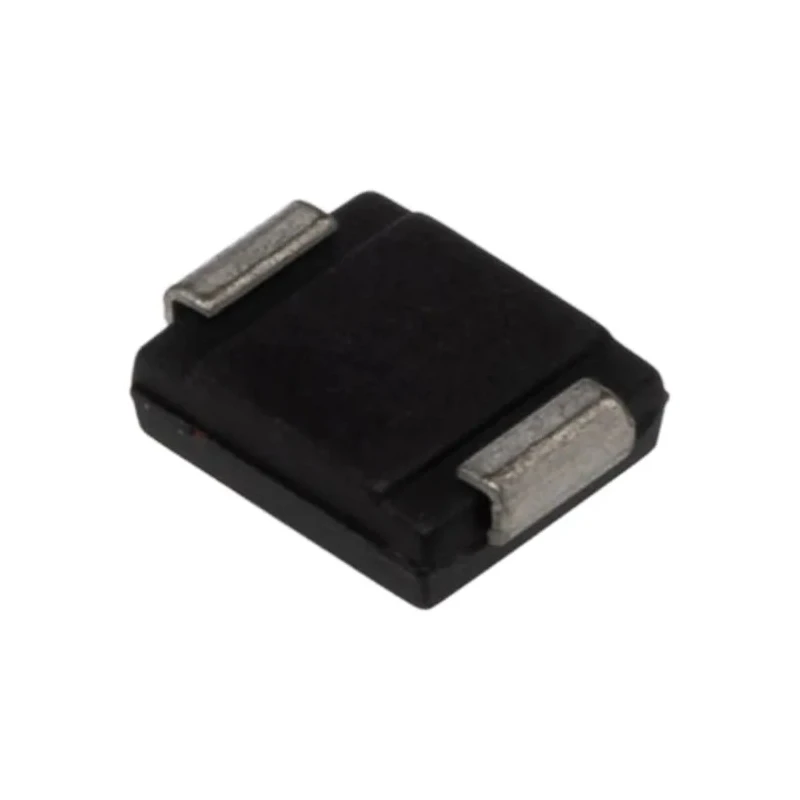

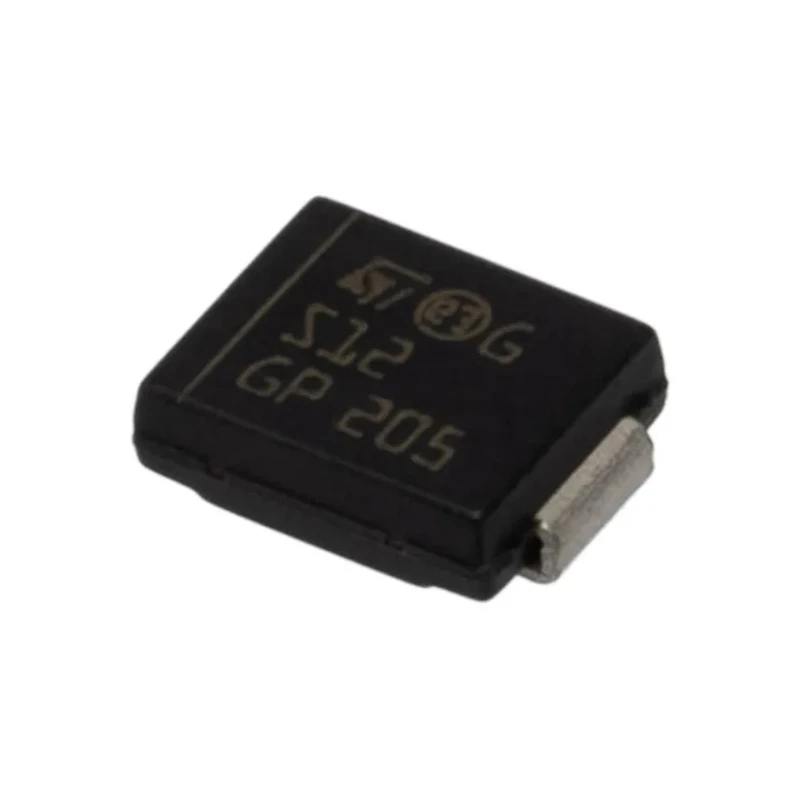

STMicroelectronics 1200 V 2 A Surface Mount Switching Diode DO-214AB STTH212S
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 7.15mm |
| Model | STTH212S |
| Width | 6.25mm |
| Mount Type | Surface |
| Series | STTH212 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -50°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 1.75V |
| Peak Reverse Recovery Time trr | 75ns |
Key Features
- Surface mount DO-214AB package ensures easy PCB integration.
- Low forward voltage of 1.75 V for efficient switching.
- Peak reverse current rated at 10 μA for low leakage.
- High operating temperature range from -50°C to 175°C for robust performance.
- Peak reverse recovery time of 75 ns suitable for fast switching applications.
- Single diode configuration with 2 pins.
- Capable of handling peak non-repetitive forward surge current of 40 A.
- Compact dimensions allowing versatile use in electronic circuits.
Product Description
STMicroelectronics STTH212S is a single switching diode designed for surface mount applications in the DO-214AB (SMC) package. Rated for a maximum continuous forward current of 2 A and a peak reverse repetitive voltage (Vrrm) of 1200 V, this diode is ideal for high voltage switching needs.
The diode offers a low forward voltage drop of 1.75 V and a peak reverse current of 10 μA, ensuring energy efficiency during operation. It features a fast peak reverse recovery time of 75 ns, making it suitable for fast switching circuits.
Operating reliably within temperatures ranging from -50°C to 175°C, the STTH212S diode withstands harsh environments typical in industrial, consumer electronics, power supply, and automotive sectors. Its peak non-repetitive forward surge current rating of 40 A supports transient conditions.
The compact DO-214AB package with dimensions approximately 7.15 mm in length, 6.25 mm in width, and 2.45 mm in height facilitates easy PCB mounting and space saving in designs. Surface mount DO-214AB package ensures easy PCB integration.
Low forward voltage of 1.75 V for efficient switching. Peak reverse current rated at 10 μA for low leakage. High operating temperature range from -50°C to 175°C for robust performance. Peak reverse recovery time of 75 ns suitable for fast switching applications.
Single diode configuration with 2 pins. Capable of handling peak non-repetitive forward surge current of 40 A. Compact dimensions allowing versatile use in electronic circuits.
This diode is suitable for industrial electronic equipment, power management modules, consumer electronics switching applications, and automotive electronic systems requiring reliable high voltage diode performance.
Explore additional semiconductor components and Switching Diodes in our extensive EnvMart catalog to find compatible parts for your design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the STMicroelectronics STTH212S diode is 2 A.
This diode has a peak reverse repetitive voltage rating of 1200 V.
The forward voltage drop of the STTH212S is 1.75 V.
The peak reverse recovery time for the STTH212S is 75 ns, making it suitable for fast switching applications.
The operating temperature range for the STTH212S is from -50°C to 175°C.
This model comes in a DO-214AB (SMC) package type.
The STTH212S diode has a single diode configuration with 2 pins.
The peak non-repetitive forward surge current rating for this diode is 40 A.
The peak reverse current rated for the STTH212S is 10 μA, indicating low leakage.
The dimensions of this diode are approximately 7.15 mm in length, 6.25 mm in width, and 2.45 mm in height.
This diode is suitable for applications in industrial electronic equipment, power management modules, consumer electronics, and automotive electronic systems.
The STTH212S is classified as a switching diode.
