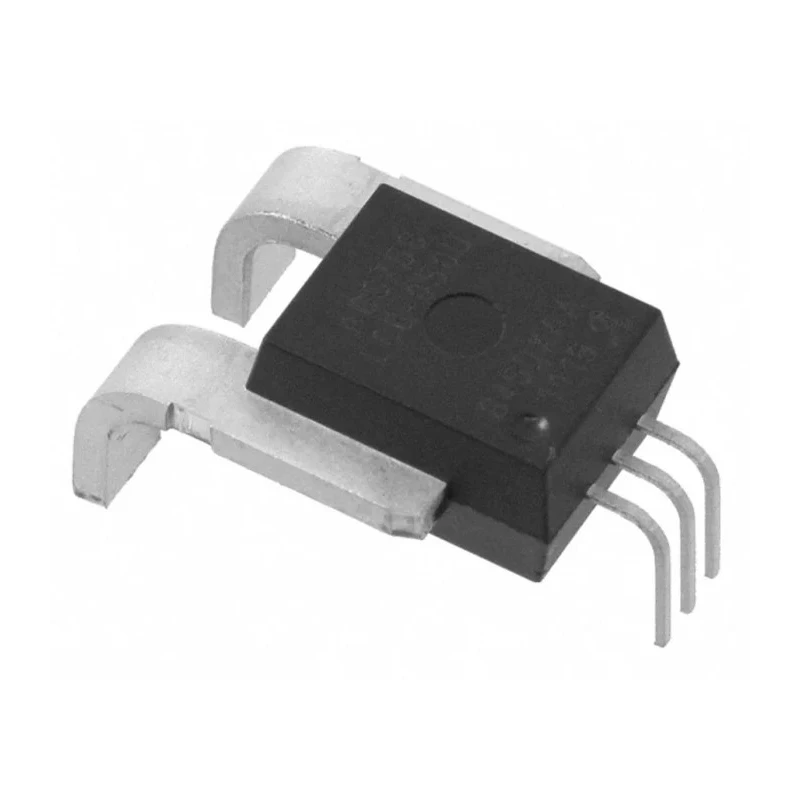

Allegro Microsystems Current Sensor IC 5-Pin Through Hole, Offset Voltage ±6 mV, Bandwidth 120kHz ACS770LCB-100U-PFF-T

Free Delivery in India | Lowest Global Shipping Charges

Allegro Microsystems Current Sensor IC 5-Pin Through Hole, Offset Voltage ±6 mV, Bandwidth 120kHz ACS770LCB-100U-PFF-T

Name: Allegro Microsystems Current Sensor IC 5-Pin Through Hole, Offset Voltage ±6 mV, Bandwidth 120kHz ACS770LCB-100U-PFF-T
Brand: Allegro MicroSystems
SKU: 382881
Price: 11.6 USD
Availability: InStock



Category Current Sensor IC Brand Allegro MicroSystems Condition New

Specifications

Country of Origin	India
Brand	Allegro Microsystems
Height	7mm
Length	14mm
Model	ACS770LCB-100U-PFF-T
Mount Type	Through Hole
Bandwidth	120kHz
Series	ACS770
Maximum Operating Temperature	150°C
Package Type	PFF
Minimum Operating Temperature	-40°C
Offset Voltage	±6 mV
Standards/Approvals	RoHS
Pin Count	5
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V

Key Features

Features a 5-pin plastic flip-chip package (PFF) for through hole mounting.
Operates across supply voltages from 4.5V to 5.5V.
Wide operating temperature range from -40°C to 150°C suitable for harsh environments.
Conforms to RoHS and automotive AEC-Q100 standards ensuring reliability.
Compact design with dimensions 14 mm length and 7 mm height.
Delivers an integrated current sensing solution suitable for currents from 50A to 200A.
3000 Vrms galvanic isolation enhances safety in electrical systems.
Ideal for industrial, automotive, and equipment manufacturing current sensing applications.

Product Description

Allegro Microsystems ACS770LCB-100U-PFF-T is a high precision integrated current sensor IC designed for accurate measurement of currents ranging from 50A to 200A. The device incorporates a Hall-effect sensor in a compact 5-pin PFF package, optimized for through hole mounting, enabling easy board integration.

Operating with supply voltages between 4.5V and 5.5V, this sensor delivers an offset voltage of ±6 mV and offers a frequency bandwidth of 120kHz. It is engineered to withstand harsh environmental conditions, functioning reliably from -40°C up to 150°C.

The sensor meets stringent automotive grade standards including AEC-Q100 and RoHS compliance, making it suitable for vehicular and industrial applications requiring high safety and quality levels. Its compact footprint with a length of 14 mm and height of 7 mm saves space in electronic assemblies.

Equipped with typical conductor resistance of 100 μΩ, the ACS770LCB-100U-PFF-T sensor provides excellent power efficiency with minimal energy loss. It features galvanic isolation rated up to 3000 Vrms, ensuring electrical isolation between the measured circuit and output, critical for safety and noise reduction.

Features a 5-pin PFF package for easy integration via through hole mounting. Wide operating voltage range of 4.5 to 5.5 volts DC. Thermal range: -40°C to 150°C for use in automotive and industrial applications. High frequency bandwidth of 120kHz suited for dynamic current sensing.

Complies with RoHS and automotive AEC-Q100 standards for quality and reliability. Compact dimensions of 14 mm length and 7 mm height minimize PCB space. Offers galvanic isolation of 3000 Vrms for enhanced safety in electrical circuits.

Typical conductor resistance of 100 μΩ reduces power loss in sensing applications.

This Current Sensor IC is ideal for industrial, automotive systems, manufacturing equipment, laboratory instrumentation, and power management solutions. It allows precise monitoring and control of electrical currents, boosting operational safety and efficiency.

Explore a wide range of sensor ICs and automotive grade components for advanced electronics design at EnvMart.
