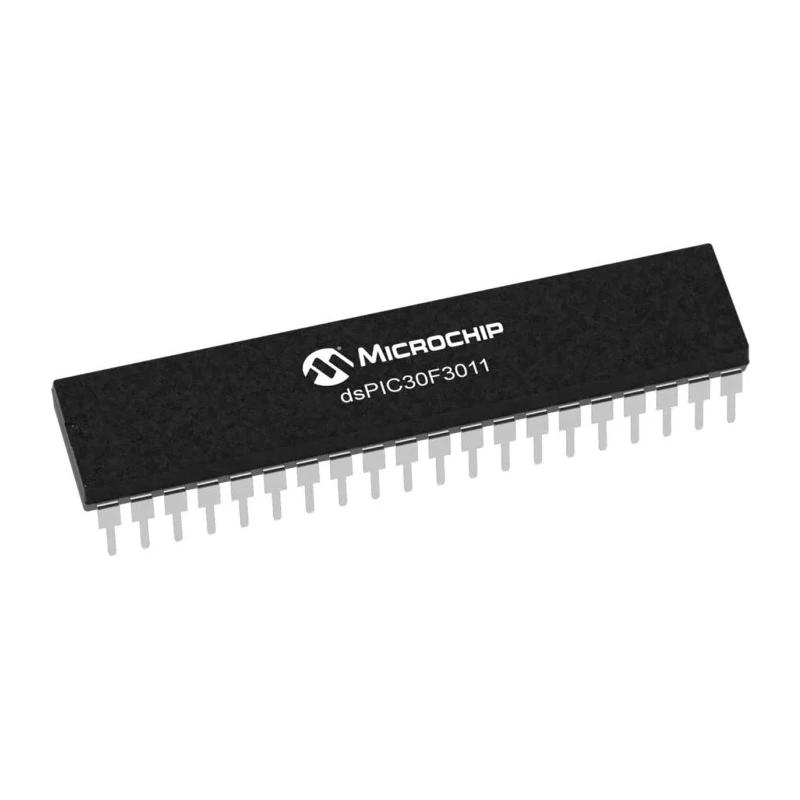

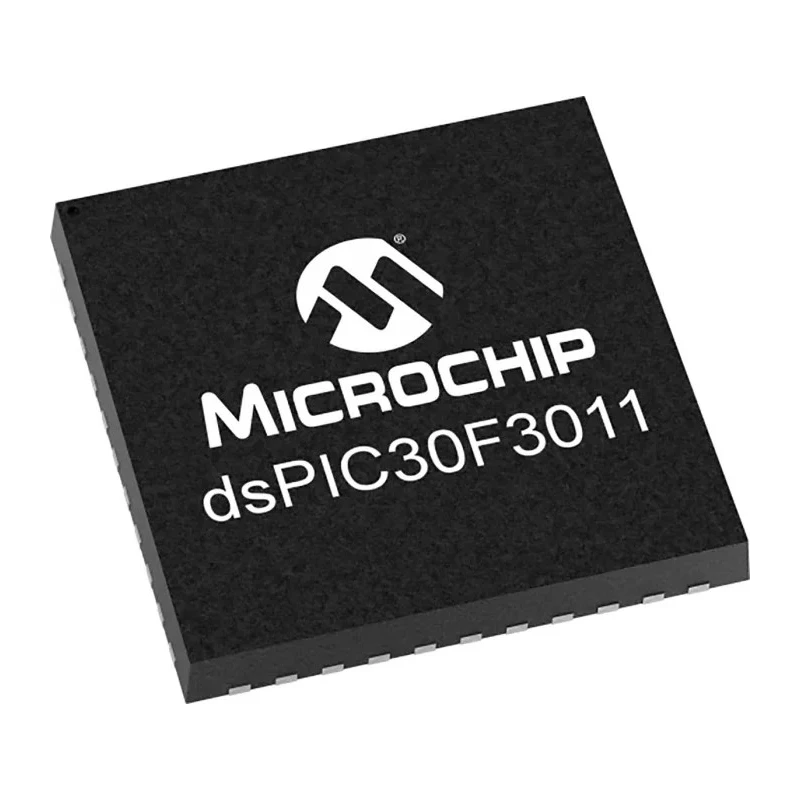

Microchip 16-Bit dsPIC Microcontroller, 25 MHz, 24kB FLASH, 40-Pin PDIP DSPIC30F

Free Delivery in India | Lowest Global Shipping Charges

Microchip 16-Bit dsPIC Microcontroller, 25 MHz, 24kB FLASH, 40-Pin PDIP DSPIC30F

Name: Microchip 16-Bit dsPIC Microcontroller, 25 MHz, 24kB FLASH, 40-Pin PDIP DSPIC30F
Brand: Microchip
SKU: 422022
Price: 20.22 USD
Availability: InStock



Category Microcontrollers Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	4.44mm
Operating Temperature Range	-40 to +85 °C
Length	52.57mm
Model	dsPIC30F
Width	13.97mm
Mount Type	Through Hole
Series	dsPIC30F
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Ram size	1kB
Interface Type	IPMI, SPI
Standards/Approvals	RoHS
Pin Count	40
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.5V
Device Core	dsPIC
Program Memory Size	24kB
Maximum Clock Frequency	25MHz
Number of Timers	2
Instruction Set Architecture	RISC
ADCs	9 x 10 Bit
Program Memory Type	FLASH

Key Features

Operates between 2.5V to 5.5V supply voltage.
Features 1kB RAM and 9 x 10-bit ADCs for accurate analog signal processing.
Supports IPMI and SPI interfaces for versatile communication.
Built with RISC instruction set architecture for efficient processing.
Designed for operating temperature range from -40°C to 85°C.
Includes 2 built-in timers for precise timing control.
Compact dimensions measuring 52.57mm length, 13.97mm width, and 4.44mm height.
Compliant with RoHS standards for environmental safety.

Product Description

Microchip's DSPIC30F series 16-bit dsPIC Microcontroller (Model DSPIC30F3011-30I/P) offers a blend of DSP performance and microcontroller simplicity, operating at a 25 MHz maximum clock frequency with 24kB FLASH program memory and 1kB RAM. The device supports a wide operating voltage range from 2.5V to 5.5V, allowing flexibility in system design. It is housed in a 40-Pin PDIP package with dimensions of 52.57mm in length, 13.97mm width, and 4.44mm height, optimized for through-hole mounting.

This microcontroller integrates 9 channels of 10-bit ADCs and supports IPMI and SPI interfaces, facilitating advanced sensing and communication requirements. Utilizing a RISC architecture, it delivers efficient processing with 2 embedded timers, suitable for precise control applications. It complies with RoHS, ensuring environmental compliance.

The product operates reliably across a temperature range from -40°C to 85°C, making it suitable for industrial, automotive (non-automotive certified), and commercial electronics environments. It is particularly well-suited for motor control algorithms, digital signal processing tasks, speech and audio codecs, and efficient power conversion.

Wide operating voltage range from 2.5V to 5.5V. High-performance 16-bit DSP with 25 MHz max clock frequency. 24kB Flash memory with integrated EEPROM. 9 x 10-bit ADC channels for analog input conversions. Supports IPMI and SPI bus interfaces.

Through hole 40-Pin PDIP package for easy prototyping. Operating temperature from -40°C to 85°C ensures industrial reliability. Compliant with RoHS environmental standards. Ideal for industrial control, motor control and audio/voice processing applications.

Includes 2 timers and RISC instruction set architecture. Explore the Microchip microcontroller range at EnvMart for high-quality embedded solutions tailored to your industrial and electronic design needs.
