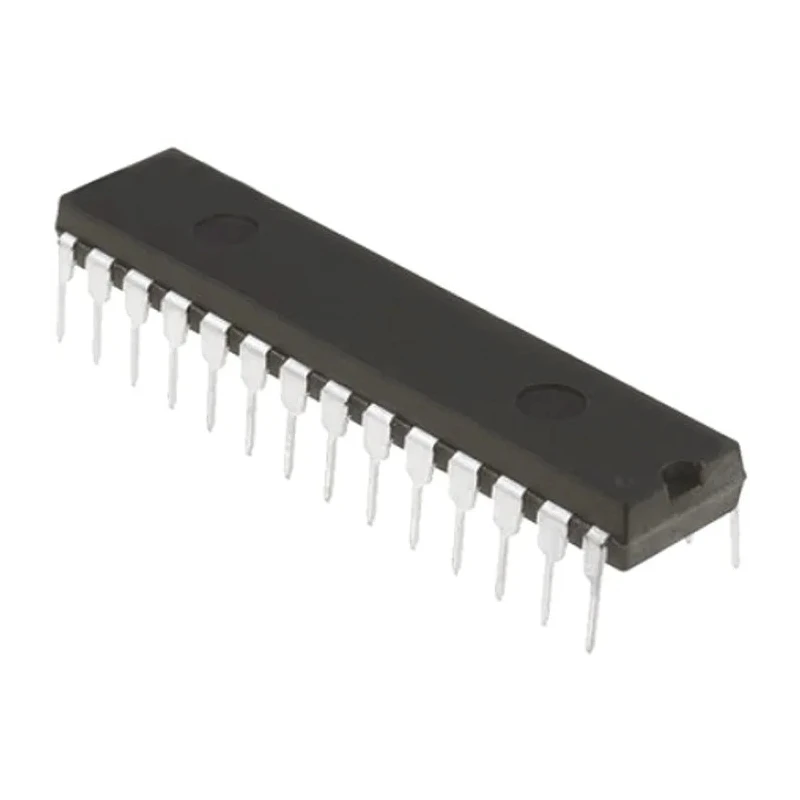

Microchip PIC24FJ128GB202-I/SP 16 bit PIC Microcontroller 32 MHz 128kB FLASH 28-Pin SPDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.81mm |
| Length | 35.56mm |
| Model | PIC24FJ128GB202-I/SP |
| Width | 0.295in |
| Mount Type | Through Hole |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB Module - USB On-the-Go Compliant |
| Ram size | 8kB |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 34 |
| Analogue Comparators | 3 |
| Maximum Expanded Memory Size | 12MB |
| Number of Timers | 1 |
| Instruction Set Architecture | Harvard |
| ADCs | 9 x 10/12 Bit |
| Program Memory Type | FLASH |
Key Features
- Features 16-bit PIC architecture for efficient processing.
- Offers 128kB of FLASH program memory and 8kB RAM size.
- Operates within a supply voltage range of 2V to 3.6V.
- Includes multiple peripherals such as USB On-the-Go, ADCs, and timers.
- Designed for low power consumption with Extreme Low-Power technology.
- Wide operating temperature range from -40°C to 85°C.
- Pin count of 28 suitable for various embedded applications.
- Offers on-chip Cryptographic Engine for enhanced security.
Product Description
Microchip PIC24FJ128GB202-I/SP is a 16-bit PIC microcontroller designed for high performance and low power consumption in embedded systems. Operating at a maximum clock frequency of 32 MHz, it features 128kB of FLASH program memory and 8kB of RAM, enabling complex application development.
This microcontroller is housed in a 28-pin SPDIP package facilitating through-hole mounting, making it suitable for prototyping and industrial applications. It supports a supply voltage range from 2V to 3.6V and includes advanced peripherals such as a USB Module compliant with USB On-the-Go standards.
Additional features include an on-chip Cryptographic Engine plus a suite of timers and ADCs, nine analog comparators, and a Harvard architecture with program memory FLASH type. The device integrates power management functions including Power-On Reset, Brown-Out Reset, and Ultra Low-Power Watchdog Timers, enhancing reliability and power efficiency.
The PIC24FJ128GB202-I/SP operates over a wide temperature range from -40°C to 85°C, suitable for demanding industrial and commercial environments. Its 34 programmable I/O pins and multiple communication interfaces, including SPI, I2C, and UART, provide versatile connectivity options.
16-bit core architecture with Harvard instruction set. 128kB FLASH memory and 8kB RAM for program and data storage. Maximum CPU speed of 32 MHz for efficient processing. Extreme Low-Power (XLP) technology for extended battery life.
USB On-the-Go compliant module for flexible connectivity. Supports in-circuit serial programming and emulation. Three analog comparators and nine 10/12-bit ADC channels for precise measurement. Wide operating temperature range and robust power management for reliability.
RoHS compliant, meeting environmental and safety standards.
This microcontroller is ideal for applications in industrial control, automotive systems, consumer electronics, and USB-enabled embedded solutions. Its compact SPDIP form factor supports easy integration in various circuit layouts.
Explore the broad catalog of Microchip Microcontrollers on EnvMart for more options and advanced embedded system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 32 MHz.
It features 128kB of FLASH program memory.
This microcontroller includes 8kB of RAM.
The supply voltage range for this model is from 2V to 3.6V.
It has a pin count of 28.
This model is housed in a 28-pin SPDIP package.
It operates over a wide temperature range from -40°C to 85°C.
It includes a USB Module that is compliant with USB On-the-Go standards, along with SPI, I2C, and UART communication interfaces.
The height of this model is 3.81mm.
It utilizes a Harvard instruction set architecture.
The country of origin for this model is India.
