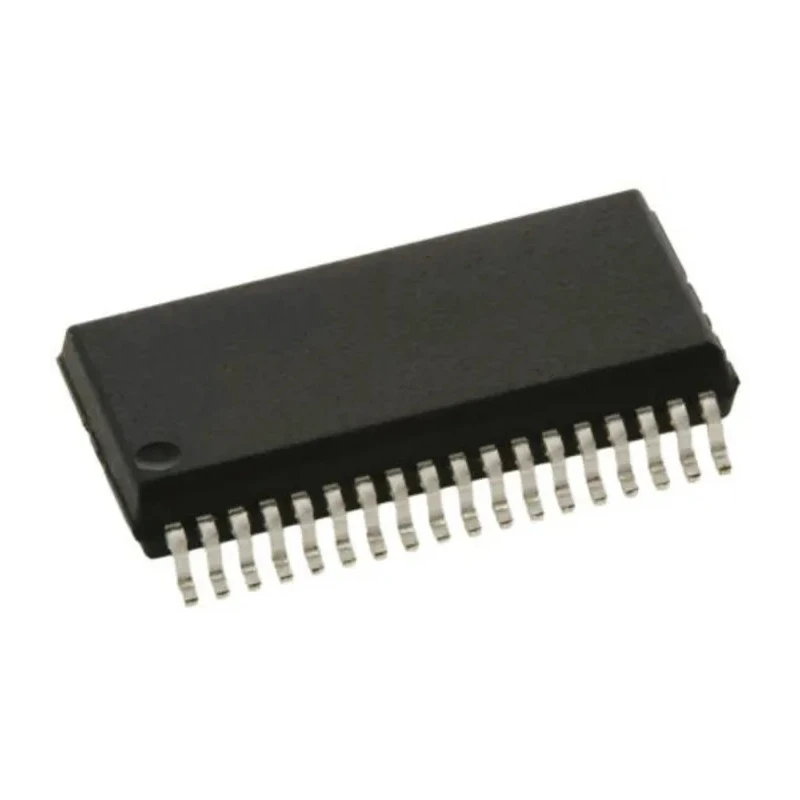

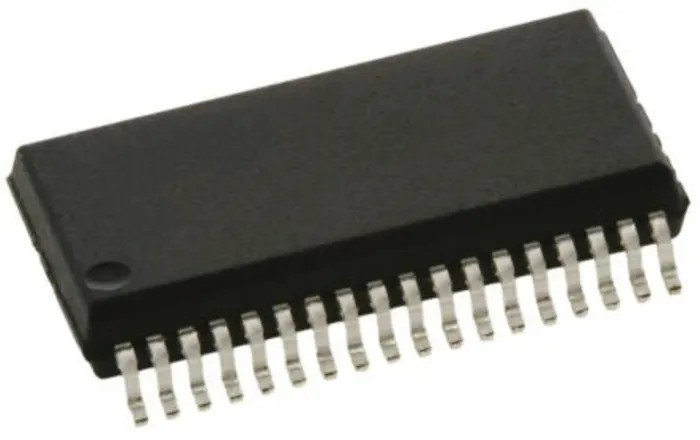

Maxim Integrated Audio & Video Processor Serial Interface 4.5-5.5V 5mA Supply Current 36-Pin SSOP MAX4360EAX+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 2.35mm |
| Length | 15.55mm |
| Model | MAX4360EAX+ |
| Width | 7.6mm |
| Mount Type | Surface |
| Series | MAX4360 |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial |
| Pin Count | 36 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Supply Current | 5mA |
| Processor Type | Video Processor |
Key Features
- Utilizes a 36-pin SSOP surface mount package for compact installation.
- Operates over a temperature range from -40°C to 85°C for reliability in various environments.
- Features low supply current consumption of only 5mA to ensure power efficiency.
- Includes eight or four internal buffers for high-speed signal routing and processing.
- Offers a 250V/μs slew rate with three-state output capability for precise signal control.
- Compatible with serial or parallel digital interface expansion for larger switch matrices.
- Designed to provide 80dB all-channel off-isolation at 5MHz and 70dB single-channel crosstalk performance.
- Straight-through pinouts simplify PCB layout and reduce design complexity.
Product Description
Maxim Integrated MAX4360EAX+ is a high-performance audio and video processor featuring a 36-pin SSOP surface mount package optimized for serial interface applications. This device operates safely within a supply voltage range of 4.5V to 5.5V, making it suitable for various electronic communication equipment and multimedia systems.
With a compact physical dimension of 15.55mm length, 7.6mm width, and 2.35mm height, the MAX4360EAX+ supports reliable operation from -40°C to 85°C, ensuring consistent performance in industrial and commercial environments.
The processor incorporates four or eight internal buffers depending on the variant, delivering a high slew rate of 250V/μs to effectively manage fast video signals. It also includes a power-saving disable feature and three-state output capability to optimize energy use and signal integrity.
Its serial or parallel digital interface capabilities allow expansion into larger switch matrices. Furthermore, the device achieves excellent signal isolation with 80dB off-isolation at 5MHz and minimal crosstalk at 70dB, critical for maintaining high-quality audio/video signal transmission.
Compact 36-pin SSOP package with surface mount design. Wide operating temperature range from -40°C to +85°C. Low supply current of 5mA for efficient power consumption. High slew rate facilitates high-speed audio/video signal processing.
Expanded digital interface supports complex switching matrices. Exceptional isolation and low crosstalk ensure superior signal integrity. Straight-through pinouts reduce PCB layout complexity. Suitable for use in multimedia applications including video conferencing and security systems.
The MAX4360EAX+ Audio & Video Processor is ideal for industrial, communication, laboratory, and multimedia manufacturing applications where robust signal processing and reliability are paramount. Its technical characteristics enable integration into video-on-demand systems, video test equipment, and security infrastructures.
Explore more Maxim Integrated semiconductor solutions and audio/video processors at EnvMart to streamline your electronic designs and system developments.
Explore more products in our Audio & Video Processors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 4.5V to 5.5V.
The dimensions of the MAX4360EAX+ are 15.55mm in length, 7.6mm in width, and 2.35mm in height.
The MAX4360EAX+ has a low supply current consumption of only 5mA.
It operates reliably over a temperature range from -40°C to 85°C.
This model utilizes a 36-pin SSOP surface mount package for compact installation.
It achieves 80dB all-channel off-isolation at 5MHz and 70dB single-channel crosstalk performance, ensuring superior signal integrity.
It supports both serial and parallel digital interface expansion for larger switch matrices.
It features a high slew rate of 250V/μs for effective management of fast video signals.
This processor is suitable for multimedia applications including video conferencing and security systems.
Depending on the variant, it includes either four or eight internal buffers for high-speed signal routing and processing.
The country of origin for this model is India.
The straight-through pinouts simplify PCB layout and reduce design complexity.
