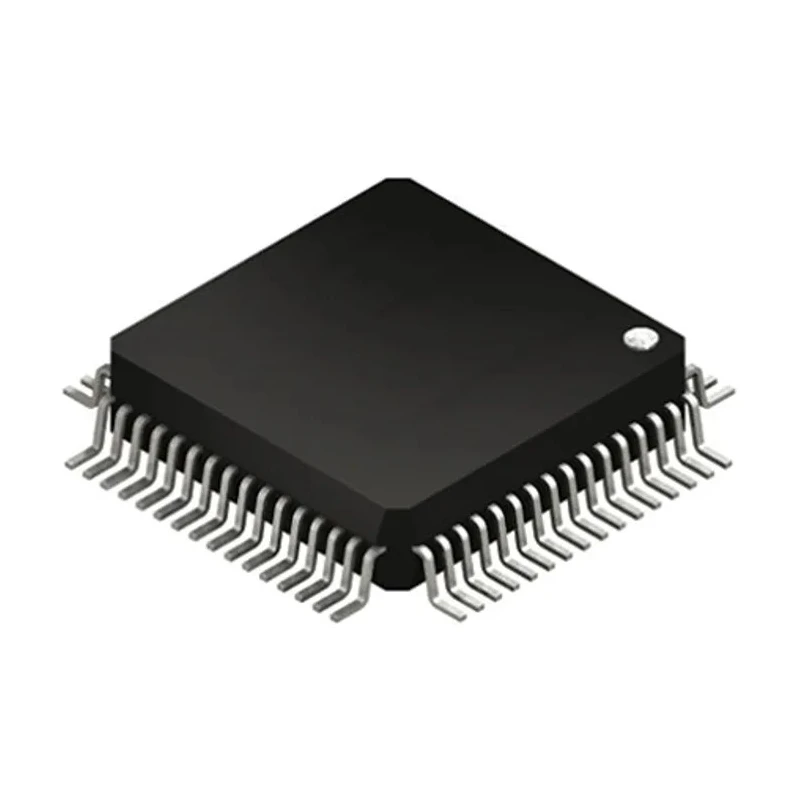

Texas Instruments MSP430 Microcontroller 16-Bit RISC 16 MHz 116 kB FLASH 8 kB RAM 64-Pin LQFP MSP430F2618TPM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 10.2mm |
| Model | MSP430 |
| Width | 10.2mm |
| Mount Type | Surface |
| Series | MSP430 |
| Maximum Operating Temperature | 105°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Interface Type | Serial |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Device Core | MSP430 |
| Program Memory Size | 116, 256kB |
| Maximum Clock Frequency | 16MHz |
| Number of Programmable I/Os | 48 |
| Analogue Comparators | 1 |
| Maximum Expanded Memory Size | 256bit |
| Number of Timers | 10 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates on low voltage from 1.8V to 3.6V ensuring low power consumption.
- Equipped with 48 programmable I/O pins for versatile interfacing.
- Built with ultra-low power modes, including 200μA/MHz active mode and 0.7μA real-time clock mode.
- Includes 8 analog-to-digital converters with 12-bit resolution.
- Package includes 64-pin Low Quad Flat Package (LQFP) for efficient surface mounting.
- Designed to operate reliably in extended temperature range from -40°C to 105°C.
- Features 10 timers enhancing timing and counting applications.
- 16-bit RISC architecture optimized for wireless and low power industrial applications.
Product Description
Texas Instruments MSP430F2618TPM is a 16-bit mixed-signal microcontroller from the MSP430 family, powered by a 16 MHz RISC CPU architecture.
This microcontroller integrates 116 kB of FLASH memory and 8 kB of SRAM, providing ample memory for complex embedded applications. It operates reliably within supply voltages ranging from 1.8V to 3.6V, making it highly energy efficient for battery-powered and portable devices.
The device features 48 programmable I/O pins with 64-pin LQFP packaging, enabling flexible interfacing options. It includes 8 12-bit analog-to-digital converters, 1 analog comparator, and 10 timers, addressing varied precision control and monitoring needs.
Designed for industrial and harsh environment applications, it supports an extended operating temperature range from -40°C to 105°C. Its ultra-low power consumption modes, such as 200μA/MHz active mode and ultra-fast wake-up within 6μs, allow extended battery life in portable systems.
The MSP430F2618TPM microcontroller supports serial interface communication, ideal for embedded systems communication protocols. The program memory is FLASH type, ensuring reprogrammability and reliability.
Operates on low voltage from 1.8V to 3.6V ensuring low power consumption. Equipped with 48 programmable I/O pins for versatile interfacing. Built with ultra-low power modes, including 200μA/MHz active mode and 0.7μA real-time clock mode.
Includes 8 analog-to-digital converters with 12-bit resolution. Package includes 64-pin Low Quad Flat Package (LQFP) for efficient surface mounting. Designed to operate reliably in extended temperature range from -40°C to 105°C.
Features 10 timers enhancing timing and counting applications. 16-bit RISC architecture optimized for wireless and low power industrial applications. Flash program memory of 116 kB with an additional 256 byte FLASH and 256 bit maximum expanded memory.
This microcontroller is well-suited for industrial automation, portable medical devices, wireless sensor nodes, and general embedded control systems requiring efficient power management and reliable operation.
Explore the complete range of Texas Instruments MSP430 Microcontrollers and find the perfect fit for your embedded application at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this microcontroller is 105°C.
This model requires a minimum supply voltage of 1.8V to operate.
The program memory size of the MSP430F2618TPM is 116 kB FLASH, with an additional 256 bytes of FLASH for expanded memory.
This microcontroller comes in a 64-pin Low Quad Flat Package (LQFP) for efficient surface mounting.
The maximum clock frequency of this unit is 16 MHz.
The height of this microcontroller is 1.45 mm, and its width is 10.2 mm.
It is designed for industrial automation, portable medical devices, wireless sensor nodes, and general embedded control systems.
The operating temperature range for this model is from -40°C to 105°C.
This model utilizes a 16-bit RISC architecture, optimized for wireless and low power industrial applications.
