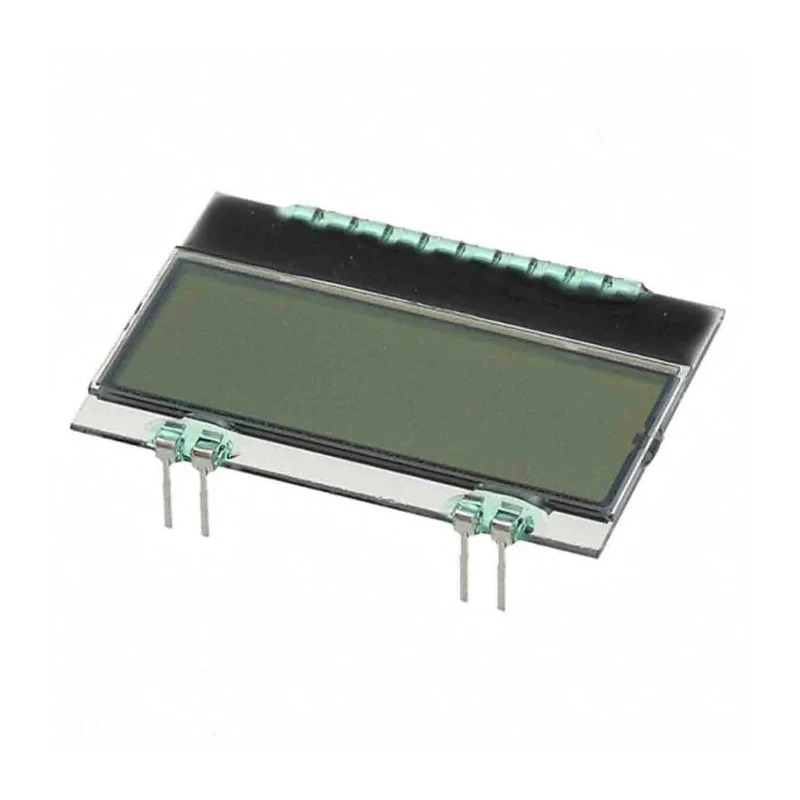

Display Visions LCD Monochrome Display Grey 4 x 10 Character Matrix LED Backlight I2C SPI Interface EA DOGS104N-A

Display Visions EA DOGS104N-A LCD Monochrome Display Grey is a high-quality electronic component designed for industrial and electronic assembly applications. Featuring a 4 x 10 character matrix, this display uses an LED backlight combined with a grey background for clear, high-contrast readout in a compact and ultra-thin form factor.

The display operates directly on 3.3 V systems, eliminating the need for auxiliary power supplies. It measures 66 mm by 40 mm with an ultra-flat thickness of just 2.0 mm without backlight, extending to 5.8 mm when including the LED backlight, allowing for integration into space-constrained designs.

Equipped with an SSD1803A controller with integrated graphic RAM, it supports 4-bit and 8-bit SPI as well as I2C communication interfaces, offering flexible connectivity options for a range of embedded systems. The display is designed for easy installation by direct soldering onto printed circuit boards, negating the need for additional mounting hardware.

With a minimum operating temperature of -20°C and maximum of 70°C, this module is suitable for harsh industrial environments. The LED backlighting operates at 45 mA, providing enhanced readability under low ambient light conditions. The component complies with RoHS regulations, ensuring it meets environmental and safety standards.

This LCD Monochrome Display is ideal for use in electronic components, power and connectors, and various optoelectronic display module applications. Its compact size and reliable performance make it a versatile choice for engineers and manufacturers requiring efficient display solutions.

The display operates efficiently at 3.3 V systems without auxiliary power. Compact and ultra-flat design with dimensions 66 x 40 mm and 2.0 mm thickness without backlight. Integrated SSD1803A controller with graphic RAM for high contrast and reliable performance.

Suitable for industrial, electronic component and optoelectronics applications. High operating temperature range from -20°C to 70°C enabling durability in harsh environments. No mounting hardware required as the display is designed to be soldered directly onto PCB.

LED backlighting with 45 mA current enhances visibility in low-light conditions. Complies with RoHS standards ensuring environmental safety. Browse our extensive range of Display Visions components and electronic displays at EnvMart for your industrial and electronic design needs.
