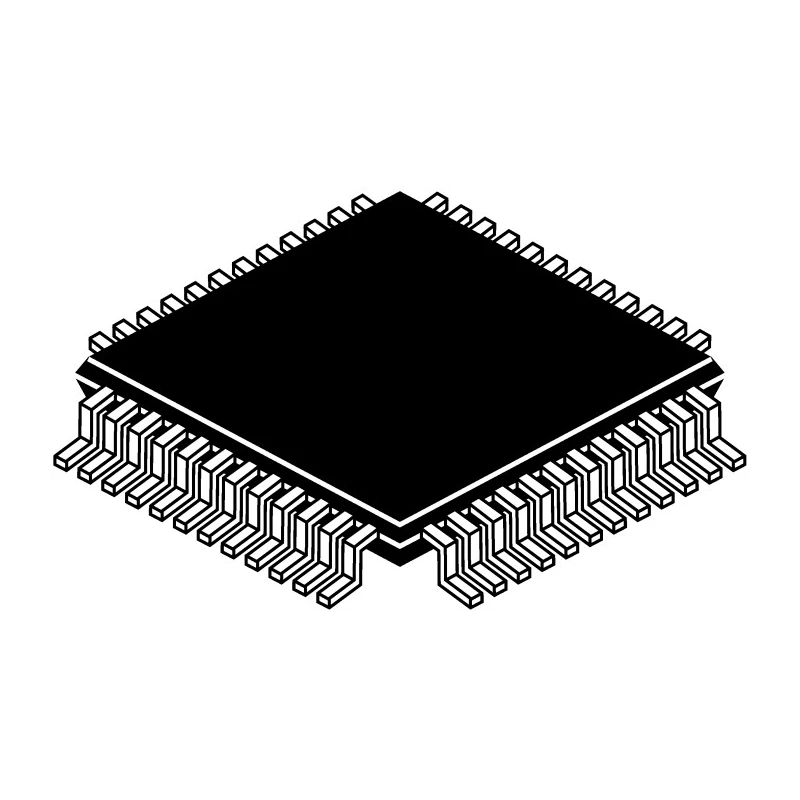

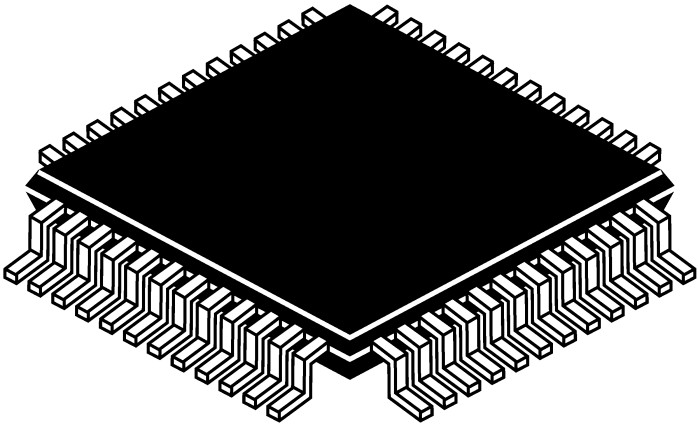

MaxLinear 2-Channel UART RS485, RS232 48-Pin TQFP Surface Mount Interface IC ST16C2550CQ48-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | MaxLinear |
| Height | 1.2mm |
| Length | 9.2mm |
| Model | ST16C2550CQ48-F |
| Mount Type | Surface |
| Maximum Operating Temperature | 70°C |
| Package Type | TQFP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 48 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.97V |
| Maximum Data Rate | 4Mbps |
| Standard Supported | RS485, RS232 |
| Transmit FIFO | 16bit |
| Receive FIFO | 16bit |
Key Features
- Supports RS485 and RS232 communication standards for versatile serial interface needs.
- Equipped with 16-bit Transmit and Receive FIFO buffers for efficient data buffering.
- Operates at maximum data rate of 4 Mbps ensuring fast data transmission.
- Compatible with supply voltage ranging from 2.97V to 5.5V for flexible power designs.
- Designed for operating temperature range from 0°C to 70°C suitable for industrial and commercial environments.
- Compact device with length 9.2 mm and height 1.2 mm facilitating space-saving PCB designs.
- Surface mount TQFP package with 48 pins enables reliable soldering and connection integrity.
- No automotive standards or additional approvals, simplifying compliance considerations.
Product Description
MaxLinear ST16C2550CQ48-F is a 2-channel Universal Asynchronous Receiver/Transmitter (UART) designed to support RS485 and RS232 communication standards over a 48-pin Thin Quad Flat Package (TQFP). This surface mount device integrates 16-bit Transmit and Receive FIFO buffers enhancing data flow efficiency and reducing CPU overhead during serial data communication.
The device supports a maximum data rate of 4 Mbps, suitable for high-speed serial communication in various industrial, commercial, and embedded applications. Its supply voltage flexibility ranging from 2.97V to 5.5V allows integration into different power environments commonly found in electronic systems. Operating across a temperature range of 0°C to 70°C makes it robust for typical industrial ambient conditions.
The compact 9.2 mm length and 1.2 mm height dimensions facilitate dense PCB layouts where space is a premium. With no additional automotive or industry-specific approvals, the ST16C2550CQ48-F suits a wide variety of electronic communication applications without complex certification dependencies.
Supports RS485 and RS232 protocols for broad compatibility. 16-bit FIFO buffers for transmit and receive enhance communication throughput. Surface mount TQFP package for secure and compact installation. Operating voltage compatibility between 2.97V and 5.5V provides design flexibility.
Temperature rating from 0°C to 70°C fits common industrial application needs. Compact device size for efficient PCB space utilization. No automotive standard compliances simplifying industry usage.
This UART IC is ideally suited for industrial communication systems, embedded device serial interfacing, and equipment requiring reliable asynchronous data transmission. It supports various computing and control systems interfacing with popular CPU bus architectures and serial communication protocols.
Explore more products within the Interface ICs category on EnvMart for comprehensive solutions tailored to your electronic design and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports RS485 and RS232 communication standards, making it versatile for various serial interface needs.
The maximum data rate is 4 Mbps, ensuring fast data transmission for high-speed serial communication applications.
It operates with a supply voltage ranging from 2.97V to 5.5V, providing flexibility in power design.
This model has a length of 9.2 mm and a height of 1.2 mm, allowing for compact PCB designs.
It features 2 channels, enabling simultaneous data transmission and reception.
It comes in a surface mount TQFP package with 48 pins, ensuring reliable soldering and connection integrity.
The operating temperature range is from 0°C to 70°C, suitable for industrial and commercial environments.
It is equipped with 16-bit Transmit and Receive FIFO buffers, enhancing data flow efficiency and reducing CPU overhead.
No, it does not have any automotive standards or additional approvals, simplifying compliance considerations.
It is ideally suited for industrial communication systems, embedded device serial interfacing, and equipment requiring reliable asynchronous data transmission.
The country of origin for this model is India.
The 16-bit FIFO buffers enhance communication throughput, allowing for more efficient handling of serial data communication.
